22-05-1032
| Manufacturer | |
| Description | Conn Wire to Board HDR 3 POS 2.5mm Solder RA Thru-Hole Bag CONN HEADER 3POS 2.5MM R/A TIN Molex 5046 Series 2.5mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings RA FRICTION LK HDR 3 wire-to-board HEADER, R/A, SQ PIN, 2.5MM, 3WAY Molex Mini-Latch 系列 2.5mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0022051032 5046-03A |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 3500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - 5046 Series | Voltage Rating | 250 V ac/dc |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Dielectric Strength | :1500V/m | Current Rating (Max) | 3A |
Mechanical
| Color | Natural | Pitch | 2.5 mm |
| Weight | 0.0035 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.5mm | Mounting Type | Through Hole, Right Angle |
| Release Force | :0.5N | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Number of Rows | 1 | Package / Case | :White Nylon UL94V-0 |
| Insertion Force | :2N | Contact Material | Brass |
| Housing Material | Polyamide (PA) | Termination Style | Through Hole |
| Number of Contacts | 3 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 3 | Mounting Hole Diameter | :1.19mm |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 200µin (5.08µm) |
| 1st Connector Mounting Type | :Right Angle | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | 5046 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :105°C | ||
Similar Parts
22-01-1034
molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount Bag
22-01-1023
Molex
Headers & Wire Housings 2.5 KK HSG FEMALE 2P friction lock
76650-0226
molex

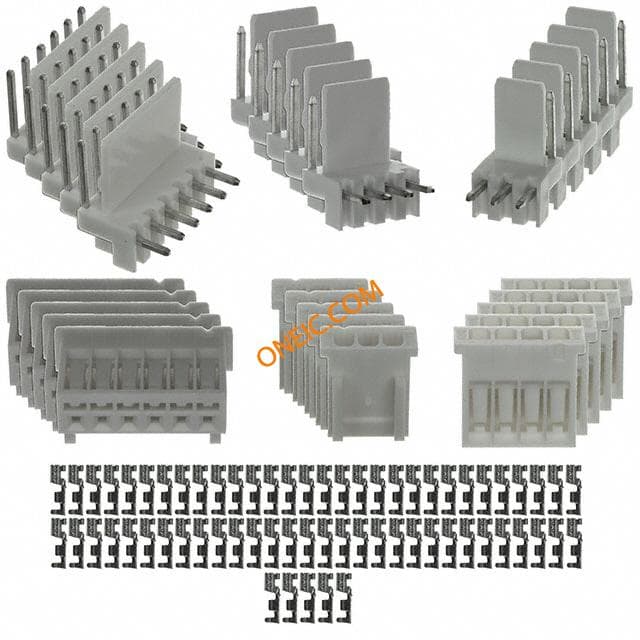

COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM RA WTB Headers & Wire Housings MINILATCH KIT R/A HDR COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE ... Kit Description:Friction Lock Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK RT ANGLE HEADER & RECEPT
0022011032
Molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Bag CONN HOUSING 3POS 2.5MM

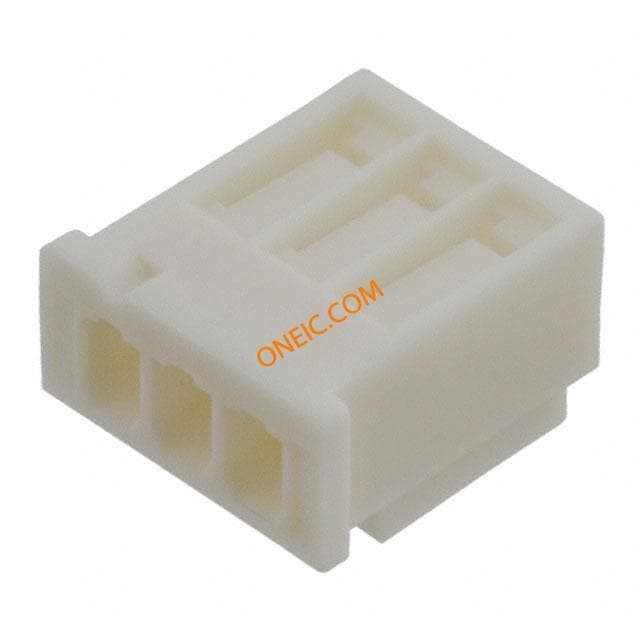

0511910300
