22-01-2025
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag 2 way socket housing,2.54mm pitch Headers & Wire Housings 2 CRT CRIMP HOUSING Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CRIMP HOUSING, 2.54MM, 2WAY Header Connector,Cable Mount,PLUG,2 Contacts,SKT,0.1 Pitch,IDC Terminal .100 KK Crimp Housing; 2 Circuit Molex KK 254 系列 1 行 2.54mm 节距 2 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0022012025 6471-02(I) |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 10000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | ||
Electrical
| Range deg/s | :MOLEX - KK 6471 Series | Voltage Rating | :250V |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Current Rating (Max) | :2.5A | Insulation Resistance | :50000Mohm |
| Connector - Voltage Input | Female | ||
Mechanical
| Depth | 12.7mm | Pitch | 2.54 mm |
| Length | 5.54mm | Weight | 0.0024 |
| Wire Gauge | 22-28 AWG | Mounting Type | Straight |
| Contact Finish | :Tin | Number of Rows | 1 |
| Contact Material | :Brass | Housing Material | Nylon |
| Number of Contacts | 2 | Contact Termination | :Crimp |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Housing | Gender | RCP |
| Series | 6471 | CAD Drawing | 3D CAD Model |
| Product Type | Wire Housings | Application Specifics | Signal, Wire-to-Board |
Environmental
| Operating Temperature | :+75°C | ||
Documents & Media
Similar Parts
08-50-0031
molex
Contact SKT Crimp ST Cable Mount Reel Crimp term,22-30AWG,hot tin,reel Headers & Wire Housings KK CE TRM 22-30G FEM Reel of 7000 CONTACT CRIMP, RECEPTACLE, KK, 30-22AWG, REEL 7K Crimp socket, reel Female 30...22 AWG, 08-50-0031, Molex Molex Cat Ear, KK 254 系列 母 压接接线端子, 压接, 镀锡触点

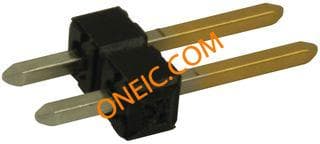

22-28-4023
molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag Molex 42375 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings BREAKAWAY HDR VERT 2 CONNECTOR, BREAKAWAY HEADER, 2WAY, 1ROW, 2.54MM Conn; Rect; Header; Breakaway; PCB; 2.54 mm Pitch; 2 Cir; Ver; KK Ser; Gold Molex KK 254 系列 2.54mm节距 2路 (1排) 直 引脚管座, 焊接端接, 4A , 通孔
22-01-2025
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag 2 way socket housing,2.54mm pitch Headers & Wire Housings 2 CRT CRIMP HOUSING Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CRIMP HOUSING, 2.54MM, 2WAY Header Connector,Cable Mount,PLUG,2 Contacts,SKT,0.1 Pitch,IDC Terminal .100 KK Crimp Housing; 2 Circuit Molex KK 254 系列 1 行 2.54mm 节距 2 路 直 母 电缆安装 压接连接器外壳
08-50-0032
molex
Contact SKT Crimp ST Cable Mount Bag Crimp terminal for socket housing Headers & Wire Housings SOCKET 22-30AWG BULK CONTACT, PIN, 22-30AWG, CRIMP, PK100 CRIMP SOCKET, 22-30AWG, PK1000 KK Cat Ear Crimp Terminal 4809, 22-30 AWG, Hot Tin, Bag Molex Cat Ear, KK 254 系列 母 压接接线端子, 压接, 镀锡触点
22-27-2021
Molex
Molex 6410 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings 2 POS HEADER Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bag HEADER, SQUARE PIN, 2.54MM, 2WAY .100 KK Headers; Vertical; 2 Circuit Molex KK 254 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 4A , 通孔

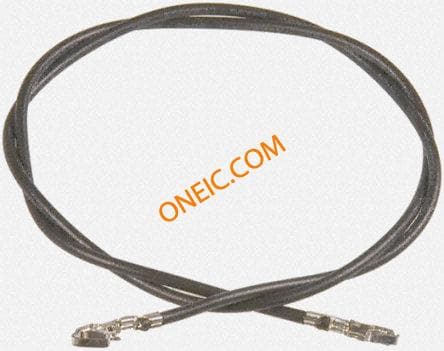

88941-0700
