19432-0013
| Manufacturer | |
| Description | Automotive Connectors .300 1X02P RECP 10-12 W/CPA CONN RCPT 2POS 10-12AWG SINGLE RECEPTACLE, 10-12 AWG, 2WAY 2 CKT RECPT 10-12AWG MX150L Molex 19432 系列 2 触点 黑色 压接端子外壳 , 12 → 10 AWG线规格 |
| Category |
Business
| Product | Housings | Tradename | MX150L |
| Part # Aliases | 0194320013 | Product Category | Automotive Connectors |
| Standard Package | 1 | Factory Pack Quantity | 240 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | :600V | Voltage - Working | :600V |
| Voltage - Breakdown | :2200V | Current Rating (Max) | 18 A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Black | Pitch | 0.300" (7.62mm) |
| Weight | 0.02309 | Packaging | Bulk |
| Wire Gauge | :12AWG | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Holder | Mounting Style | Wire |
| Number of Rows | 1 | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 2 |
| Wire Gauge or Range - AWG | :10AWG | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 19432 | For Use With/Related Products | :19434 Female Terminals |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts

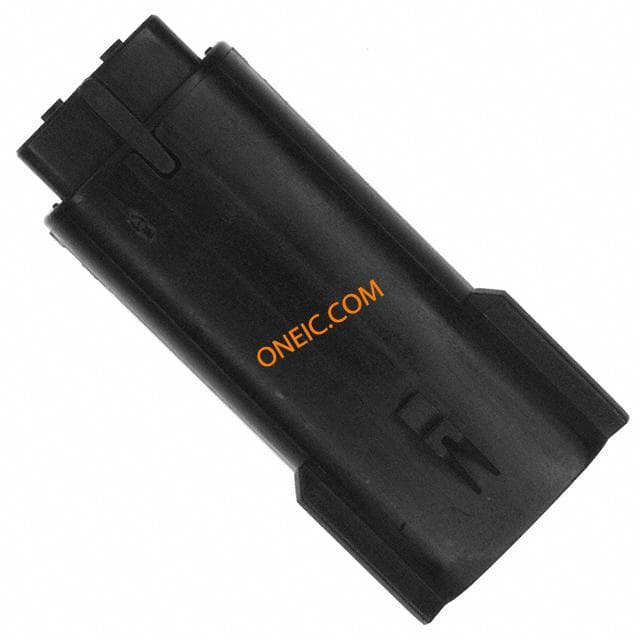

19433-0013
Molex
Automotive Connectors .300 1X02P PLUG 10-12 CONN PLUG 2POS 10-12AWG SINGLE 2 CKT PLUG 10-12 AWG MX150L Molex 19433 系列 2 触点 黑色 压接端子外壳 , 12 → 10 AWG线规格
19432-0013
Molex
Automotive Connectors .300 1X02P RECP 10-12 W/CPA CONN RCPT 2POS 10-12AWG SINGLE RECEPTACLE, 10-12 AWG, 2WAY 2 CKT RECPT 10-12AWG MX150L Molex 19432 系列 2 触点 黑色 压接端子外壳 , 12 → 10 AWG线规格

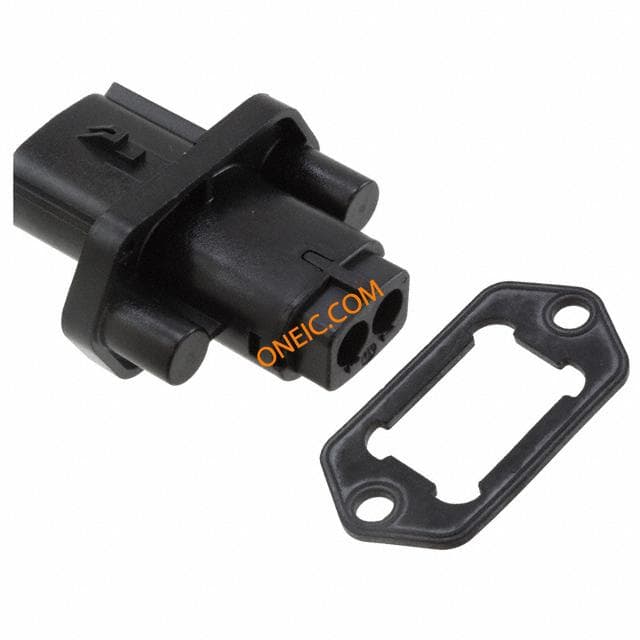

19436-0213
Molex
Automotive Connectors 2CKT SLD PNL MT PLUG W/GASKET 12-10 CONN PLUG 2POS 10-12AWG PNL MT
19434-0003
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 10-12AWG TIN Automotive Connectors .300 LOOSE 10-12 FEMALE SN TERMINAL, FEMALE, 10-12 AWG FEMALE TERM 10-12 AWG MX150
0194340001
Molex
Contact SKT Crimp ST Cable Mount T/R TERM FEMALE TIN 10-12AWG CRIMP
0194340002
Molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE TERM 8AWG TIN
0194360214
Molex
Conn Housing PL 2 POS 7.62mm Crimp ST Bag 2POS PLUG PNL MNT 8AWG SEALED

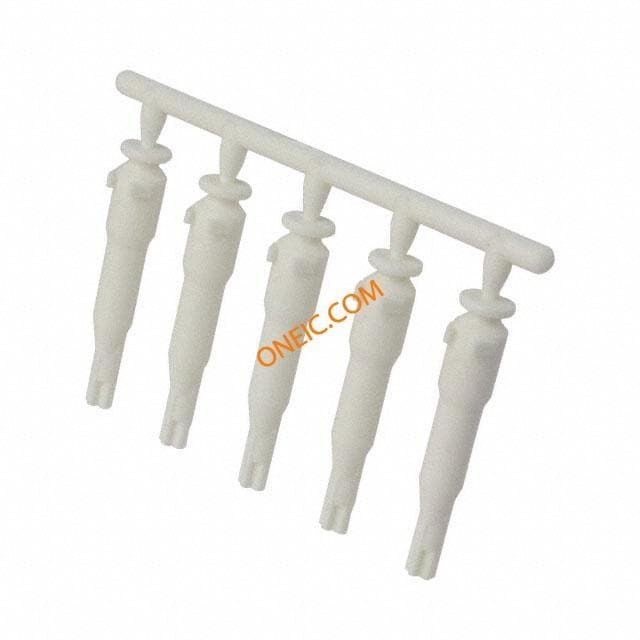

0194310054
