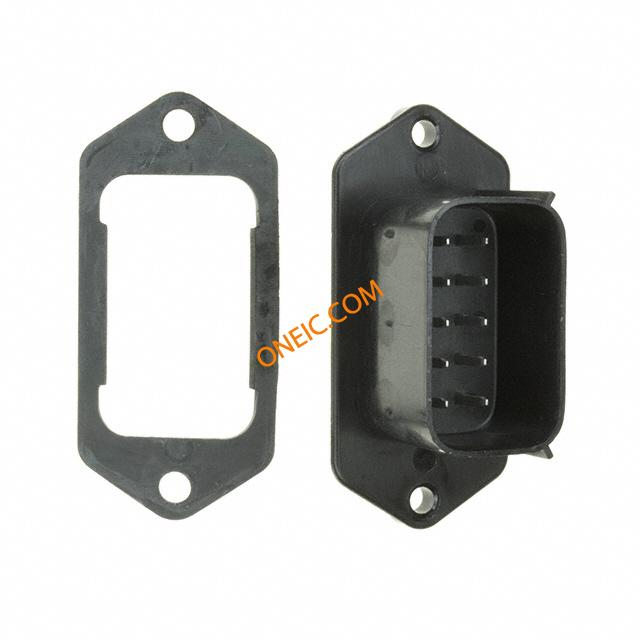

19428-0014
| Manufacturer | |
| Description | Automotive Connectors 10 Ckt Vert. Header low profile CONN HEADER 10POS VERTIAL TIN Molex 19428 Series 5.84mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 18A Molex MX150L 系列 5.84mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 18A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Tradename | MX150L |
| Part # Aliases | 0194280014 | Product Category | Automotive Connectors |
| Standard Package | 1 | Factory Pack Quantity | 240 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 18A |
Mechanical
| Color | Black | Pitch | 0.230" (5.84mm) |
| Packaging | Tray | Orientation | 直 |
| Row Spacing | 0.236" (6.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Panel Mount; Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Termination Rows | 焊接 |
| Termination Style | Solder | Number of Contacts | 10 |
| Number of Positions | 10 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Gender | Male |
| Series | 19428 | Coverage | 覆盖 |
| Features | Board Guide | CAD Drawing | 3D CAD Model |
| Base Product Number | 19428 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
