0194180013
| Manufacturer | |
| Description | . 0194180013 - 10 Position Rectangular Housing Connector Receptacle 0.230" (5.84mm) from Molex. from now! |
| Category |
Business
| Standard Package | 168 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 18/Contact | Voltage - Input (Min) | 600VAC |
Mechanical
| Pitch | 0.230" (5.84mm) | Height | 28.86 |
| Packaging | Bag | Wire Gauge | 14-16 |
| Row Spacing | 0.236" (6.00mm) | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Latch Holder |
| Number of Rows | 2 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 39.67 | Number of Contacts | 10 |
| Contact Termination | Crimp | Number of Positions | 10 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Features | Connector Position Assurance (CPA), IP67 |
Documents & Media
Similar Parts
0194200003
molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE TERM 16-14AWG GOLD
0194351011
Molex, LLC
. 0194351011 - 10 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194351014
molex
Conn Housing PL 10 POS 5.84mm Crimp ST Bag CONN PLUG 10POS 22-18AWG
0194351013
molex
Conn Housing PL 10 POS 5.84mm Crimp ST Bag CONN PLUG 10POS 14-16AWG
19428-0014
Molex
Automotive Connectors 10 Ckt Vert. Header low profile CONN HEADER 10POS VERTIAL TIN Molex 19428 Series 5.84mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 18A Molex MX150L 系列 5.84mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 18A , 通孔

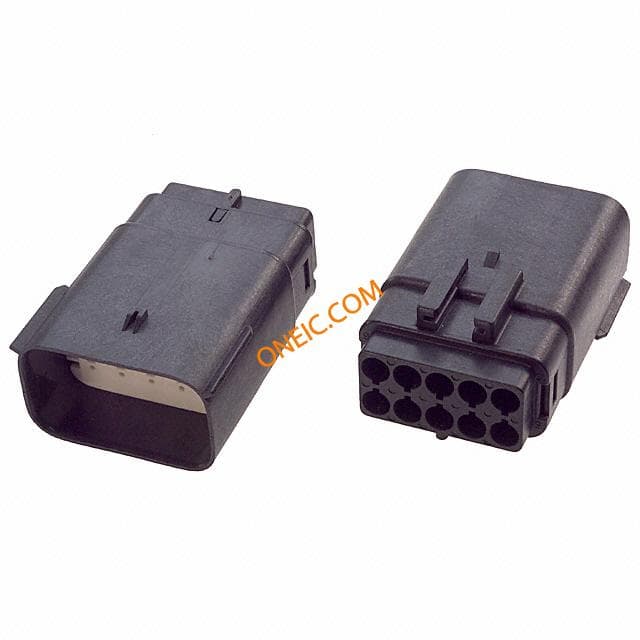

19419-0014
Molex
Automotive Connectors PLUG 10P 16-14 AWG dual row CONN PLUG 10POS 14-16AWG DUAL 10 way 14-16AWG IP67 plug connector Molex MX150L 系列 2 行 5.84mm 节距 10 路 直 公 压接连接器外壳
19419-0015
Molex
Automotive Connectors PLUG 10P 22-18 AWG dual row CONN PLUG 10POS 18-22AWG DUAL 10 way 18-22AWG IP67 plug connector CONNECTOR HOUSING, PLUG, 10POS, 22-18AWG Molex MX150L 系列 2 行 5.84mm 节距 10 路 直 公 压接连接器外壳

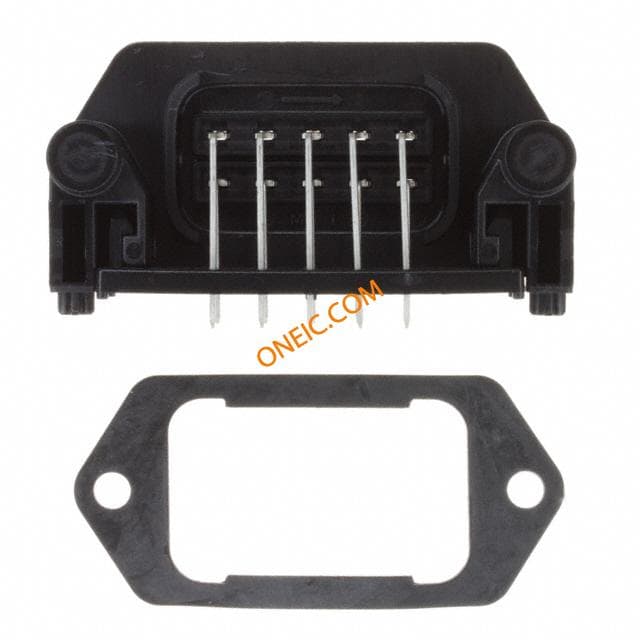

19427-0031
Molex
Automotive Connectors 10 Ckt R/A Header w/out Mounting Holes CONN HEADER 10POS RIGHT ANG TIN
0194170119
Molex, LLC
. 0194170119 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!

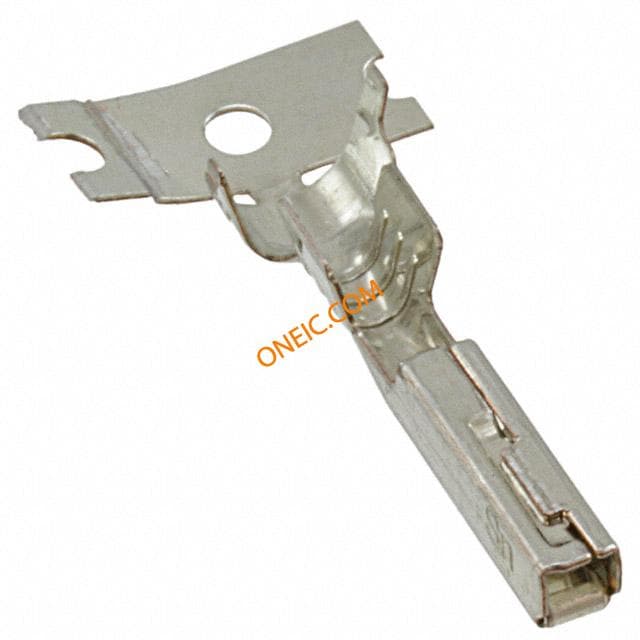

0194200001
Molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET TERM 14-16AWG TIN Contact; female; 14÷16AWG; MX150L; tinned; crimped; for cable; 18A
0194351012
Molex, LLC
. 0194351012 - 10 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194290030
Molex
Conn Housing PL 10 POS 5.84mm Crimp ST Bulk 10-WAY PLUG T/H PANEL MNT

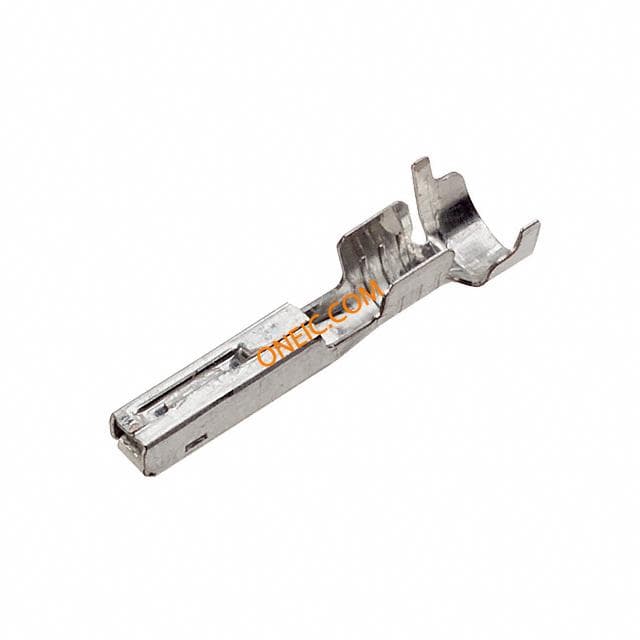

0194200009
