19418-0022
| Manufacturer | |
| Description | Automotive Connectors RECPT 8P 22-18 AWG dual row CONN RECEPT 8POS 18-22AWG DUAL |
| Category |
Business
| Product | Housings | Tradename | MX150L |
| Part # Aliases | 0194180022 | Product Category | Automotive Connectors |
| Standard Package | 10 | Factory Pack Quantity | 192 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 18 A | ||
Mechanical
| Color | Natural | Pitch | 0.230" (5.84mm) |
| Packaging | Bulk | Row Spacing | 0.236" (6.00mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Fastening Type | Latch Holder | Mounting Style | Wire |
| Number of Rows | 2 | Housing Material | Polystyrene (PS) |
| Termination Style | Crimp | Contact Termination | Crimp |
| Number of Positions | 8 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 19418 | Features | IP67 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts

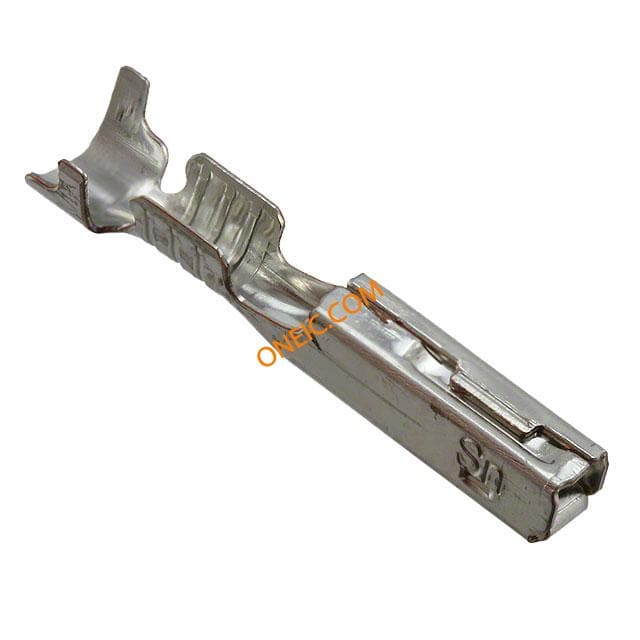

0194200002
Molex, LLC
. 0194200002 - Socket Contact Tin 18-22 AWG Crimp from Molex. from now!
0194290011
Molex, LLC
. 0194290011 - 8 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194350811
Molex, LLC
. 0194350811 - 8 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194350812
Molex, LLC
. 0194350812 - 8 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194350813
molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bag Conn Housing PL 8 POS 5.84mm Crimp ST Panel Mount Bag 8POS PLUG PNL MNT 14-16 NO GSKT
19420-0010
Molex
Automotive Connectors SOCKET 22-18 AWG CONN TERM FEMALE 18-22AWG TIN 18-22AWG female terminal FEM TERMINAL TIN PLTD 22-18 L.P. MX150L Crimp contact Female 22...18 AWG, 19420-0010, Molex Molex MX150L 系列 母 压接接线端子, 压接, 镀锡镀镍触点

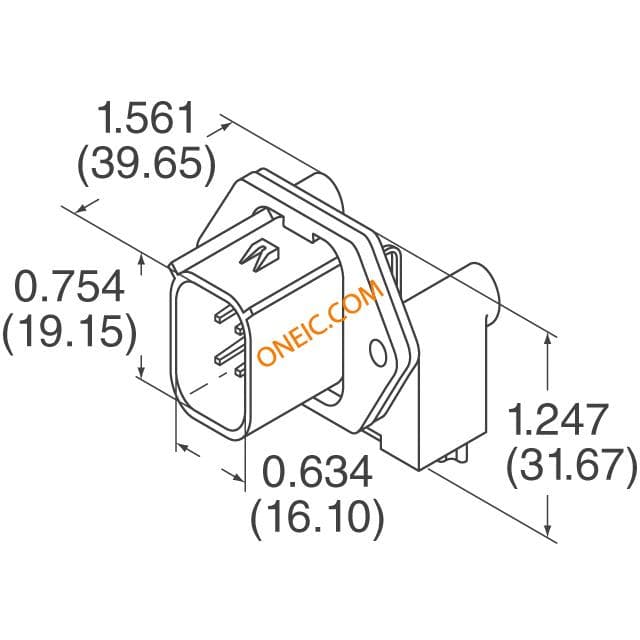

19427-0017
Molex
Automotive Connectors 8 Ckt R/A Header w/out Mounting Holes CONN HEADER 8POS RIGHT ANGLE TIN

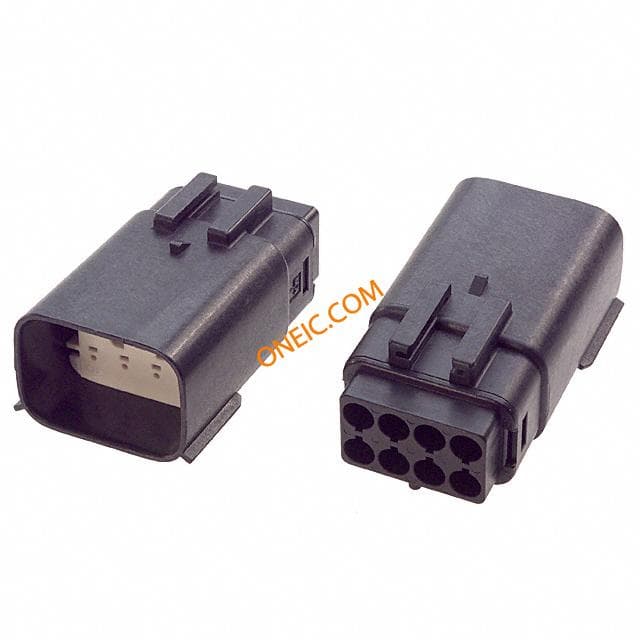

19419-0002
Molex
Automotive Connectors PLUG 8P 16-14 AWG dual row CONN PLUG 8POS 14-16AWG DUAL 8 way 14-16AWG IP67 plug connector 8WAYPLUGASSY16-14MX150L Molex MX150L 系列 2 行 5.84mm 节距 8 路 直 公 压接连接器外壳

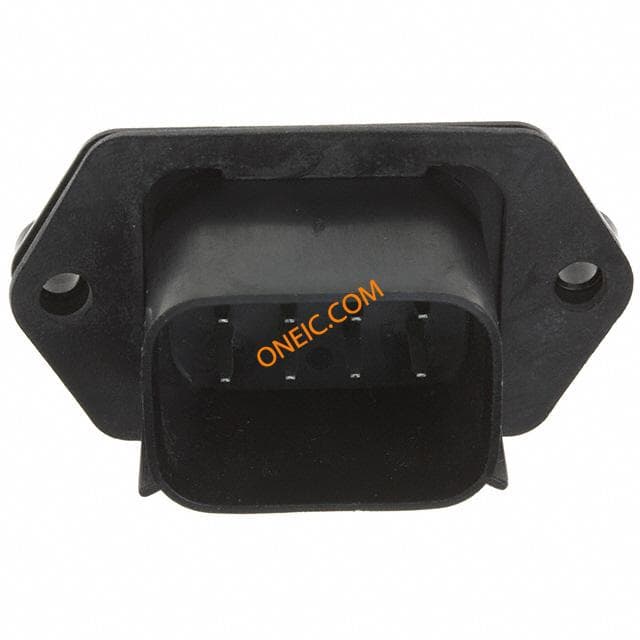

19428-0013
molex
Conn Wire to Board HDR 8 POS 5.84mm Solder ST Thru-Hole Tray CONN HEADER 8POS VERTIAL TIN Molex 19428 Series 5.84mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 18A Automotive Connectors 8 Ckt Vert. Header low profile Molex MX150L 系列 5.84mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 18A , 通孔
0194170119
Molex, LLC
. 0194170119 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!
0194350819
Molex, LLC
. 0194350819 - 8 Position Rectangular Housing Connector Plug Gray 0.230" (5.84mm) from Molex. from now!
0194290045
Molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bulk 8-WAY PLUG T/H PANEL MT W/SEAL Connector: rectangular; MX150L; socket; male; PIN:8; w/o terminals
0194190001
Molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bulk CONN PLUG 8POS 18-22AWG DUAL Connector: rectangular; MX150L; plug; male; PIN:8; w/o terminals

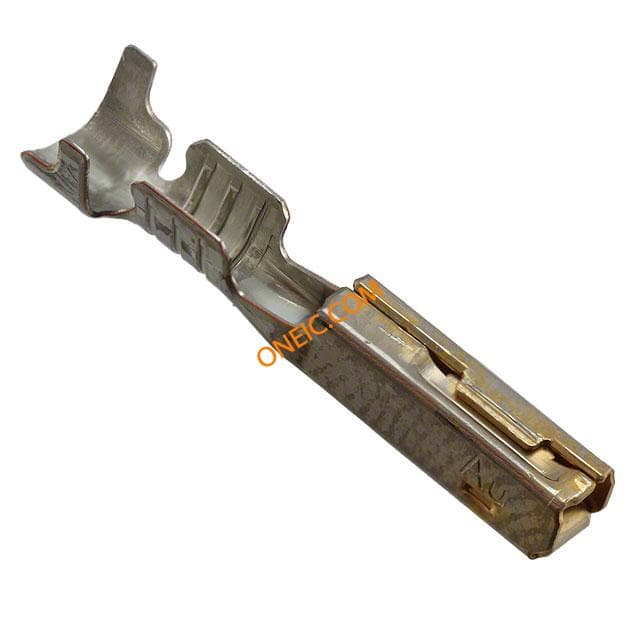

0194200004
Molex
Contact SKT Crimp ST Cable Mount Reel TERM FEMALE 22-18AWG GOLD
0194290029
Molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bulk 8-WAY PLUG T/H PANEL MNT

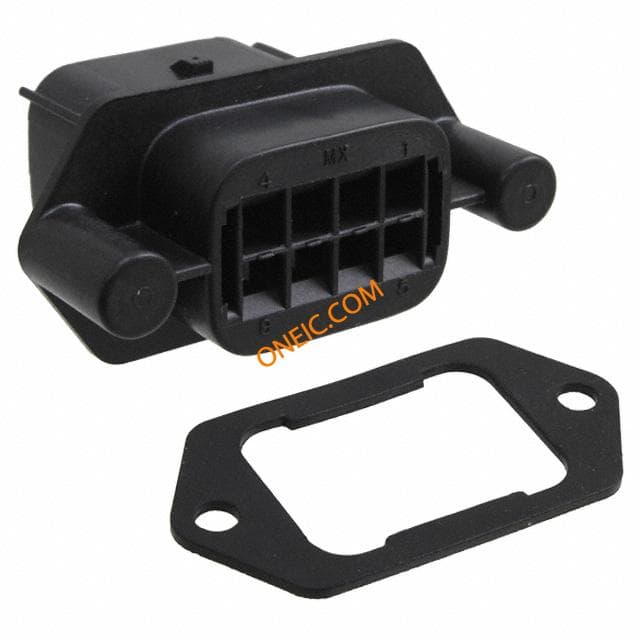

0194290037
