0194190001
| Manufacturer | |
| Description | Conn Housing PL 8 POS 5.84mm Crimp ST Bulk CONN PLUG 8POS 18-22AWG DUAL Connector: rectangular; MX150L; plug; male; PIN:8; w/o terminals |
Business
| Standard Package | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 18/Contact |
| Voltage - Input (Min) | 600VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | red | Depth | 53.95 |
| Pitch | 0.230" (5.84mm) | Weight | 0.01 kg |
| Packaging | Bulk | Wire Gauge | 18...22AWG |
| Row Spacing | 0.236" (6.00mm) | Contact Type | Male Pin |
| Pitch - Post | 5.84mm | Body Material | fibreglass reinforced SPS |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Locking Ramp | Mounting Style | for cable |
| Number of Rows | 2 | Length - Overall | 30.62 |
| Package Quantity | 10 | Connector - Cable | plug |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | ||
Product Info
| Spg | 10 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Features | IP67 | Adapter Series | MX150L |
| Number of Units | 192 | ||
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40...125°C |
Documents & Media
Similar Parts
0194170029
Molex, LLC
Order Molex 0194170029 (0194170029-ND) at . , view product specifications, and order online.
0194170028
molex
Contact PIN Crimp ST Cable Mount Strip CONN MALE TERM TIN 22-18AWG

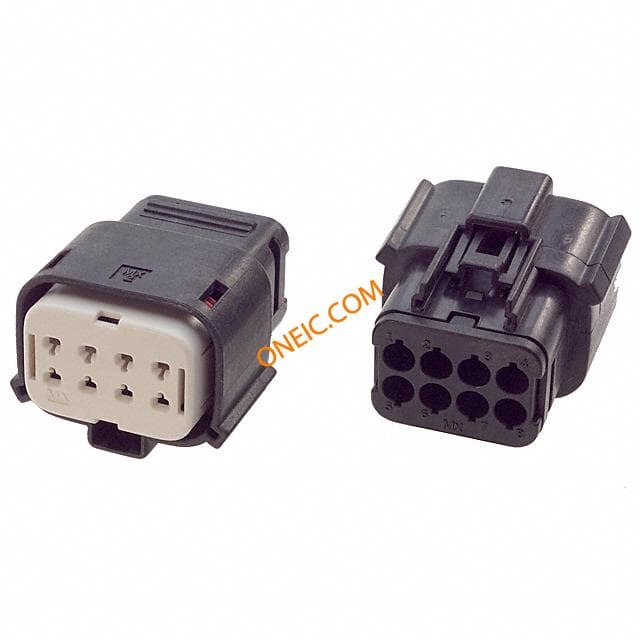

19418-0022
Molex
Automotive Connectors RECPT 8P 22-18 AWG dual row CONN RECEPT 8POS 18-22AWG DUAL
19418-0023
Molex
Automotive Connectors RECPT 8P 16-14 AWG dual row CONN RECEPT 8POS 14-16AWG DUAL
0194170048
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Contact; male; 18÷22AWG; MX150L; tinned; crimped; for cable; 18A
0194170119
Molex, LLC
. 0194170119 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!
0194170024
Molex, LLC
. 0194170024 - Blade Contact Tin 18-22 AWG Crimp from Molex. from now!
0194180002
Molex, LLC
. 0194180002 - 8 Position Rectangular Housing Connector Receptacle 0.230" (5.84mm) from Molex. from now!
0194170263
Molex, LLC
. 0194170263 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!

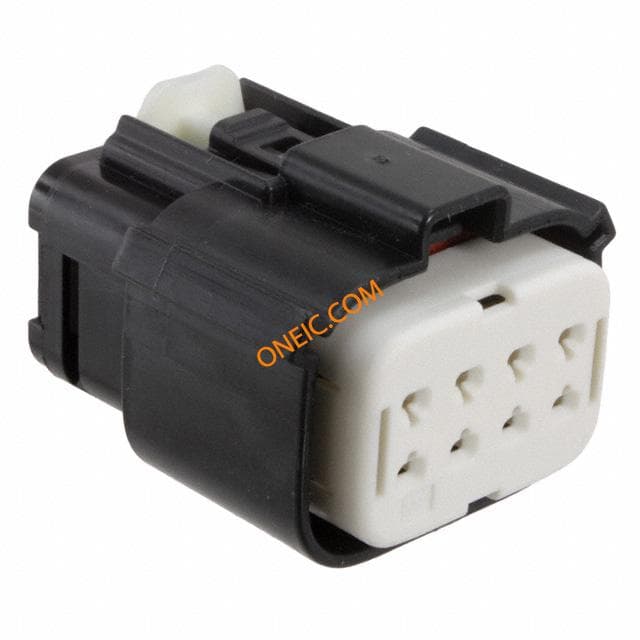

0194180001
