0834229014
| Manufacturer | |
| Description | Cable Assembly Rubber 26-28AWG 15 POS D-Sub RCP Bag CMD RECPT KIT 15 CIR UNASSEMBLED MICRO-D CONNECTOR RECEPTACLE 15POS CRIMP |
| Category |
Business
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 1/Contact | Voltage - Input (Min) | 350VAC |
Mechanical
| Color | Black | Weight | 0.00001 |
| Packaging | Bag | Cable Type | Rubber |
| Wire Gauge | 26-28 | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Connector Type | 15POS D-Sub |
| Contact Finish | Gold | Flange Feature | Cable Side; Male Jackscrew (2-56) |
| Number of Rows | 2 | Connector Style | D-Type, Micro-D |
| Contact Material | Beryllium Copper | Length - Overall | :0.935" |
| Number of Contacts | :15 | Contact Termination | :- |
| Dielectric Material | Liquid Crystal Polymer (LCP) | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | 1st Connector Mounting Type | :Cable |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | ||
Product Info
| Note | Contacts Not Provided | Gender | RCP |
| Series | :83422 | Features | Assembly Kit, Shielded |
Environmental
| Mating Cycles | 500 | Operating Temperature | -40°C ~ 125°C |
Documents & Media
Similar Parts
0621004101
molex
MOVING FORM TOOL 15 POS
0622019800
molex
Manual Press For Micro-D Backshell Crimp Tool Kit, 15 Circuits ARBOR PRESS W/TOOLING 15CKT
0836129022
molex
Conn Commercial Micro-D PIN 15 POS 1.27mm Solder RA Thru-Hole 15 Terminal 1 Port Tube CMD R/A 15POS PLUG PCB

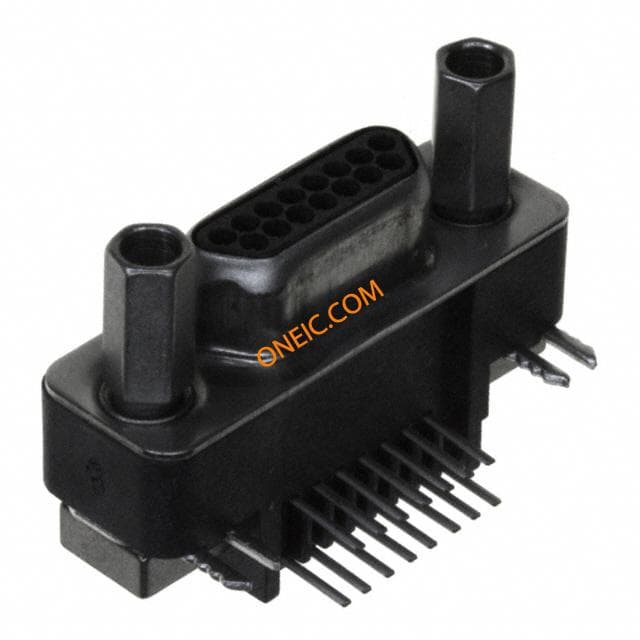

0836129020
