0705430111
| Manufacturer | |
| Description | Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 7POS .100 VERT 30AU |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 30 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Black | Depth | 6.6 mm |
| Pitch | 0.100" (2.54mm) | Height | 11.81 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 20.33 mm |
| Number of Contacts | 7 | Number of Positions | 7 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

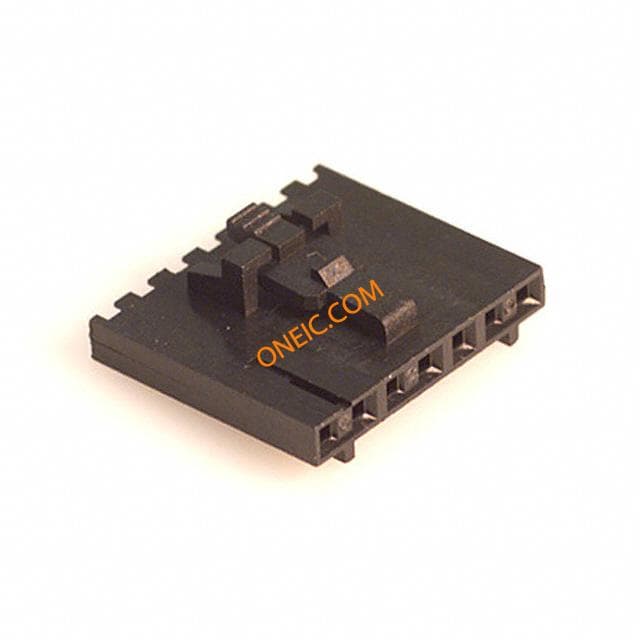

0050579407
molex
Conn Housing RCP 7 POS 2.54mm Crimp ST Panel Mount Bag CONN HOUSING 7POS .100 W/LATCH
15-47-4073
molex
Conn IDC Connector F 7 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 7POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt G Fem 15 SAu 7Ckt

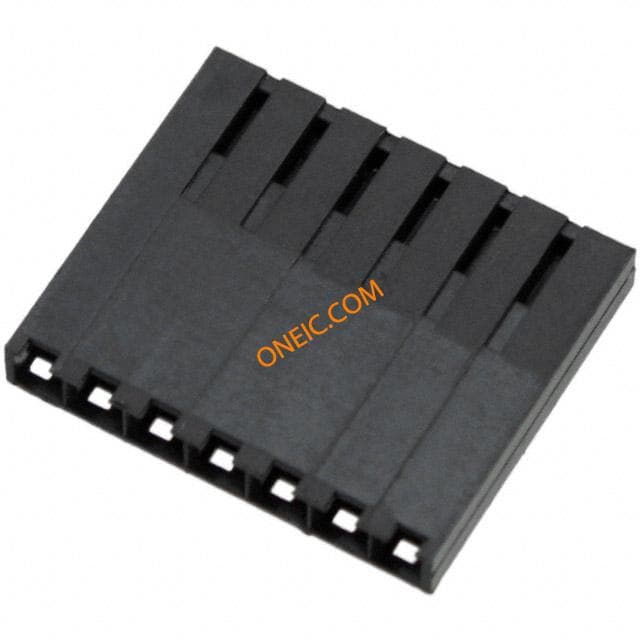

0050579207
Molex
Conn Housing RCP 7 POS 2.54mm Crimp ST Bag CONN HSG 7POS .100 SINGLE VER C
0704002072
Molex Inc
CONN SL IDT OPT G GOLD 7POS

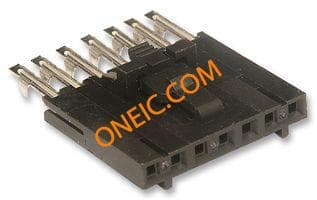

15-38-8070
