14-56-2071

Manufacturer	Molex, LLC
Description	CONN IDC 7POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt A 15 SAu 7Ckt Conn IDC Connector F 7 POS 2.54mm IDT ST Cable Mount Tube
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Tradename	C-Grid, SL	Part # Aliases	0014562071 70400-0531
Product Category	Headers & Wire Housings	Standard Package	1
Factory Pack Quantity	900

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating

250 V

Current Rating (Max)

3 A

Mechanical

Color	Black	Pitch	0.100" (2.54mm)
Packaging	Tube	Wire Type	Discrete or Ribbon Cable
Wire Gauge	24 AWG	Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Contact Finish	Gold	Mounting Style	Cable
Number of Rows	1	Contact Material	Phosphor Bronze
Housing Material	Polyester Alloy	Cable Termination	IDC
Termination Style	IDC	1st Contact Gender	Socket (Female)
Number of Contacts	7	Number of Positions	7
Contact Finish Thickness	15µin (0.38µm)

Product Info

Series	70400	Features	Closed End
Product Type	Receptacles / Sockets - Housings

Documents & Media

PDF Document

Single Row (SL) Prod Spec

PDF Document

0014562071_RB_CBL_WR_TRP_CONN.pdf

Similar Parts

0705530006

molex

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 7POS .100 R/A GOLD

$22.8813

Details

0022292071

molex

Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 7POS .100 VERT GOLD

$4.4426

Details

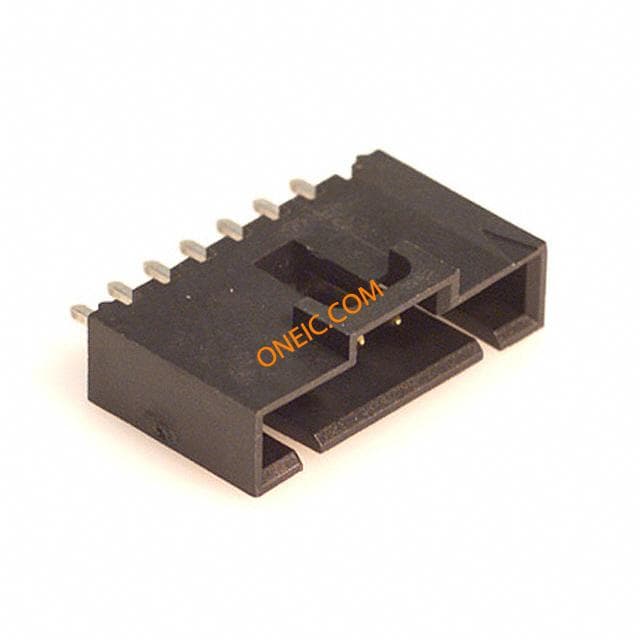

0705430006

molex

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 7POS .100 VERT GOLD

$5.0347

Details

0705550041

molex

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 7POS .100 R/A 15AU

$9.8444

Details

68301-1018

Molex

Headers & Wire Housings 2.54MM SR SMT 7P HDR VERT W/O SHROUD CONN HEADER 7POS .100" VERT TIN Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST SMD Tube

$2.1080

Details

68301-1012

Molex

Headers & Wire Housings Cust. Header 100 SMT 7 CKT CONN HEADER 7POS .100" VERT 15AU

Details

22-28-4076

molex

Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 7POS .100 VERT GOLD Headers & Wire Housings KK 100 Hdr Assy Bkwy Bkwy 07 Ckt 30 SGold

$1.1696

Details

22-28-8074

molex

Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 7POS .100 R/A GOLD Headers & Wire Housings 2.54MM HDR RA 7P 244/120 30AU

$2.7020

Details

0022288071

Molex

Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 7POS .100 R/A TIN

$2.0740

Details

0705430111

Molex

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 7POS .100 VERT 30AU

$6.4790

Details

0022288073

Molex

Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 7POS .100 R/A GOLD

$2.4868

Details

22-27-2071

Molex Connector Corporation

CONN HEADER 7POS .100 VERT TIN Molex 6410 Series 2.54mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings 7C F/L HEADER Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Bag CONNECTOR, HEADER, 2.54MM, 7WAY Molex KK 254 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 4A , 通孔

$2.9100

Details

22-11-2072

Molex Connector Corporation

CONN HEADER 7POS .100 VERT GOLD Molex 6373 Series 2.54mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings VERT PCB HDR 7P GOLD FRICTION LOCK Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Bag .100 KK Header; Vertical; 7 Circuit Molex KK 254 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接 , 通孔

$2.1760

Details

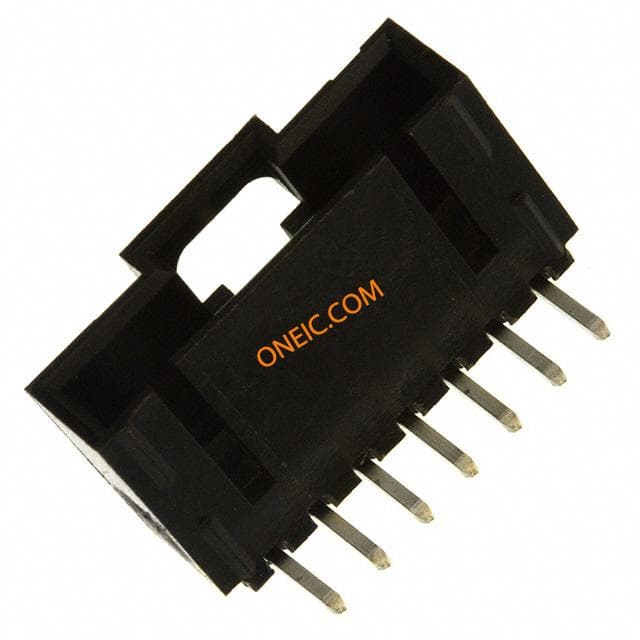

70553-0111
