0705430001
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 2POS .100 VERT GOLD |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 30 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Black | Depth | 6.6 mm |
| Pitch | 0.100" (2.54mm) | Height | 11.81 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 7.37 mm |
| Number of Contacts | 2 | Number of Positions | 2 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Industry Aliases | 70543-0001, 705430001 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0050579402
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Panel Mount Bag Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .100 W/LATCH

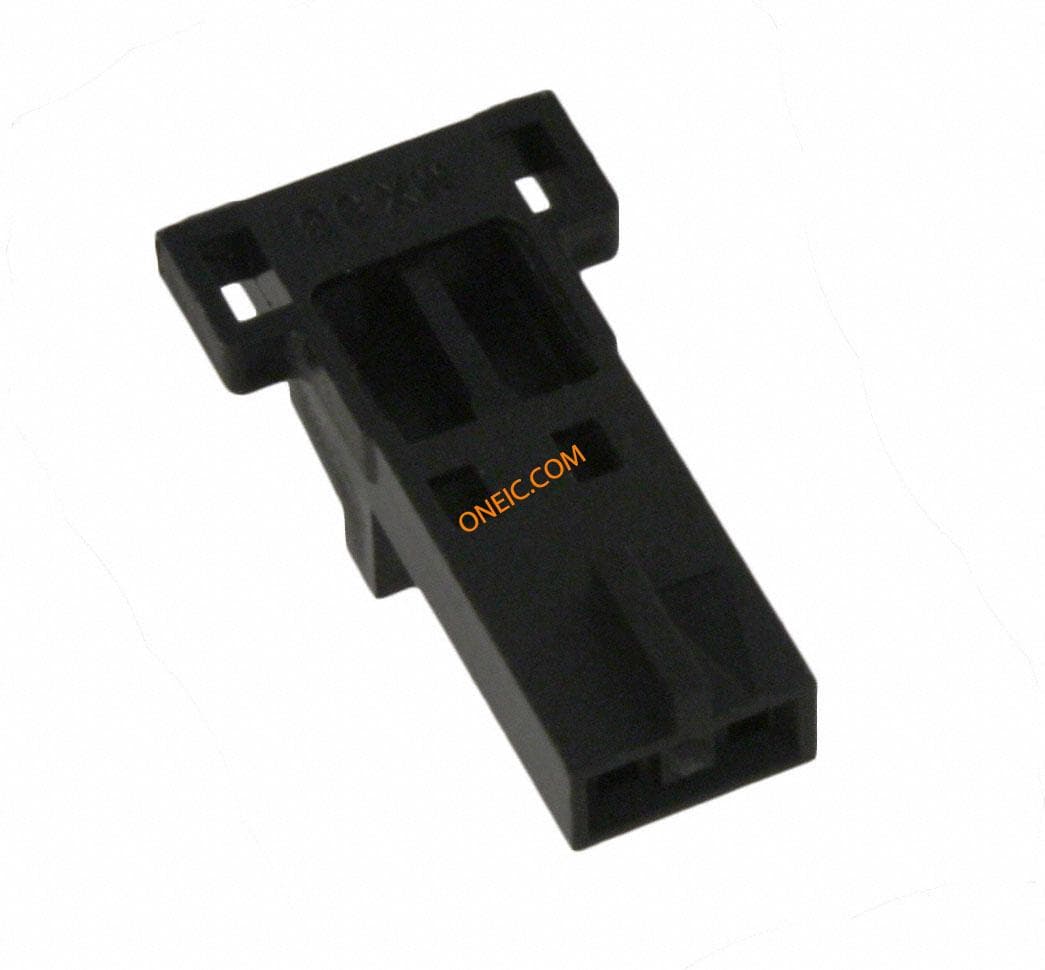

0050579702
