0430300010
| Manufacturer | |
| Description | Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 5 A |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Depth | 2.1 mm | Pitch | Not Required mm |
| Height | 1.91 mm | Weight | 0.1 g |
| Packaging | Bag | Wire Gauge | 26-30 AWG |
| Shield Type | No | Termination | Crimp |
| Contact Type | Signal | Housing Color | Not Required |
| Mounting Type | Cable Mount | Pin or Socket | Socket |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Tin Over Nickel |
| Mounting Style | Cable | Package / Case | in bulk |
| Contact Material | Phosphor Bronze | Housing Material | Not Required |
| Length - Overall | 11 mm | Package Quantity | 1500 |
| Connector - Cable | contact | Number of Contacts | Not Required |
| Contact Termination | Crimp | Contact Finish Thickness | 40µin (1.02µm) |
| Wire Gauge or Range - mm2 | 0.05...0.128mm2 | Contact Material - Plating | tinned |
Product Info
| Spg | 1500 | Type | Power |
| Gender | F | Adapter Series | Micro-Fit 3.0 |
| Number of Units | 1 | Tool Type Feature | MX-63812-0800, MX-63819-0000 |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0430250200
molex
Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:2; w/o terminals; 5A; UL94V-0
0430250600
Molex, LLC
. 0430250600 - 6 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0436450200
Molex, LLC
. 0436450200 - 2 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0436450400
molex
Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 4POS 3MM SINGLE ROW Plug; wire-board; female; 3mm; PIN:4; w/o terminals; 5A; UL94V-0
0430251200
molex
Conn Housing RCP 12 POS 3mm Crimp ST Cable Mount Bag Conn Housing F 12 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 12POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:12; w/o terminals; 5A; UL94V-0

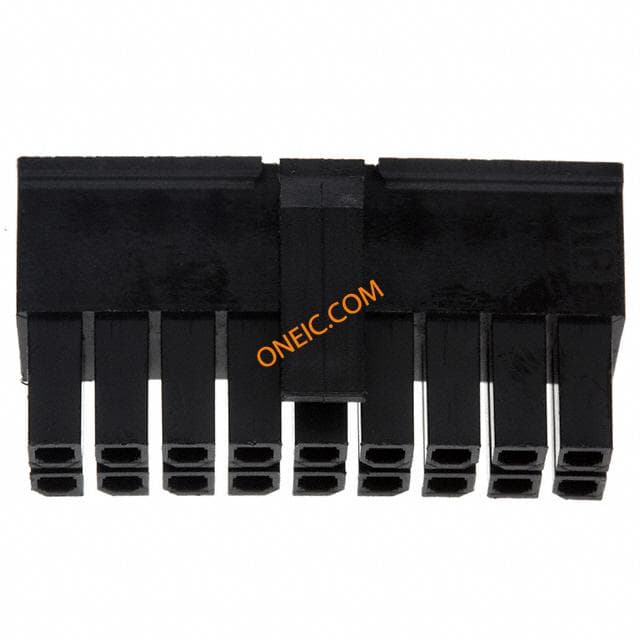

0430251800
molex
Conn Housing RCP 18 POS 3mm Crimp ST Bag Conn Housing F 18 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 18POS 3MM DUAL ROW Plug; wire-board; female; 3mm; PIN:18; w/o terminals; 5A; UL94V-0
0430251600
molex
Conn Housing RCP 16 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 16POS 3MM DUAL ROW Conn Housing F 16 POS 3mm Crimp ST Cable Mount Bag Plug; wire-board; female; 3mm; PIN:16; w/o terminals; 5A; UL94V-0 Connector
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0
0430252400
Molex, LLC
. 0430252400 - 24 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0638120800
molex
INSERTION TOOL Insertion Tool For Micro-Fit 3.0 Crimp Terminal INSERTION TOOL 20-30 AWG CRIMP
0638190000
Molex
Hand Crimp Tool TOOL CRIMP 20-30AWG MICROFIT 3.0 Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,05÷0,12mm2,0,2÷0,5mm2
0441331000
Molex
Conn Housing RCP 10 POS 3mm Crimp ST Tray CONN RECEPT 10POS 3MM DUAL ROW
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0430250800
Molex
Conn Housing RCP 8 POS 3mm Crimp ST Bag CONN RECEPT 8POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:8; w/o terminals; 5A; UL94V-0
0441330400
Molex
Conn Housing RCP 4 POS 3mm Crimp ST Tray CONN RECEPT 4POS 3MM DUAL ROW
0441331400
Molex, LLC
. 0441331400 - 14 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0436450800
Molex Inc
CONN RECEPT 8POS 3MM SINGLE ROW

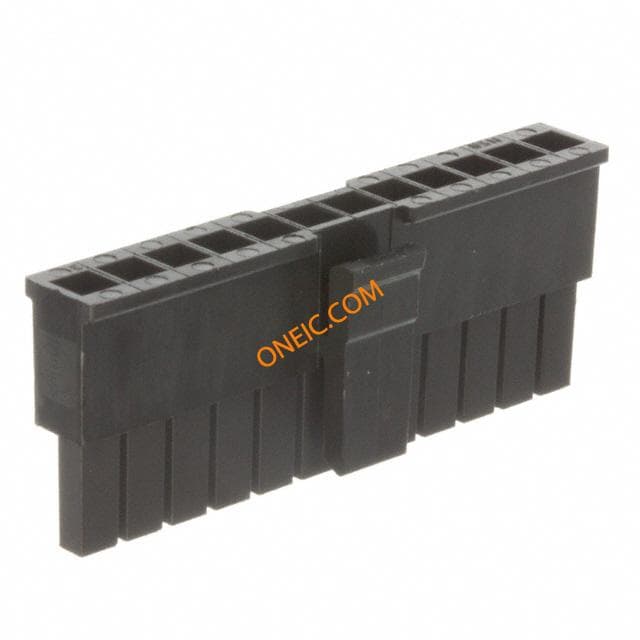

43645-1200
Molex Connector Corporation
CONN RECEPT 12POS 3MM SINGLE ROW Headers & Wire Housings RECEPTACLE SINGLE 12 Conn Housing RCP 12 POS 3mm Crimp ST Bag PLUG & SOCKET CONNECTOR, RCPT, 12POS, 3MM MICROFIT3.0RECEPTACLESGLROW12CKT Female contact housing single row Pitch3 mm Poles 1 x 12 Micro-Fit, 43645-1200, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 12 路 直 母 电缆安装 压接连接器外壳

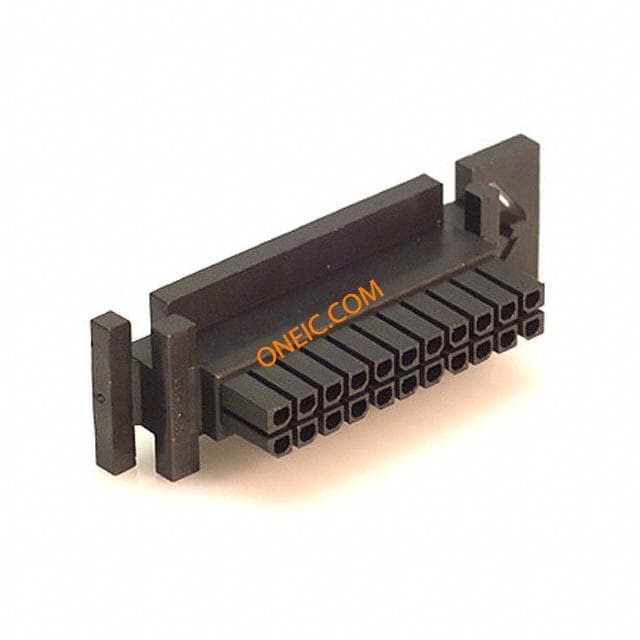

44133-2200
Molex Connector Corporation
CONN RECEPT 22POS 3MM DUAL ROW Headers & Wire Housings 3MM MICRO-FIT Recept. 22 CKT 3.00mm Micro-Fit 3.0 BMI™ Receptacle Housing, Dual Row, Panel Mount, 22 Circuits, PBT Polyester, UL 94V-0

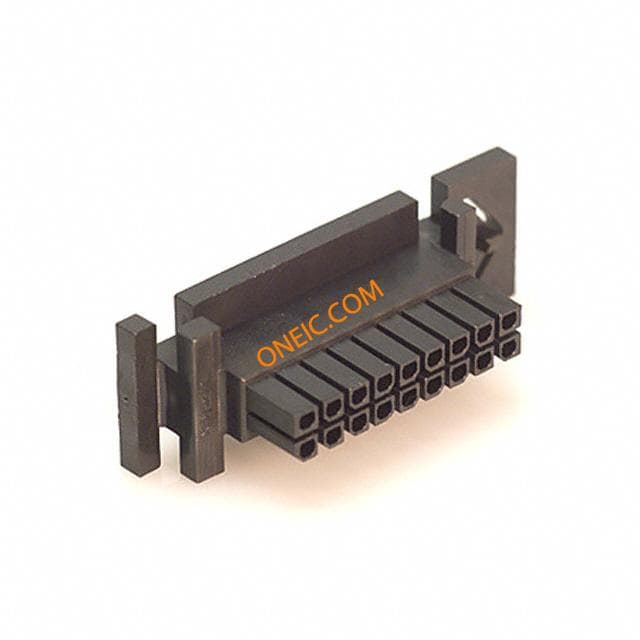

0441331800
