点击放大查看
0430251200
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 3mm Crimp ST Cable Mount Bag Conn Housing F 12 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 12POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:12; w/o terminals; 5A; UL94V-0 |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 5/Contact A |
| Voltage - Input (Min) | 600VDC|600VAC | Voltage - Supply (Min) | 600VDC/600VAC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Depth | 14 mm |
| Pitch | 3 mm | Height | 11.56 mm |
| Weight | 1.56 g | Material | polyester |
| Boreholes | 15mm | Packaging | Bag |
| Row Spacing | 0.118" (3.00mm) | Contact Type | Female Socket |
| Pitch - Post | 3mm | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 2 | Locking Feature | lock |
| Housing Material | Polyester | Length - Overall | 18.85 mm |
| Package Quantity | 3000 | Size / Dimension | see |
| Connector - Cable | plug | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
| 1st Connector Mounting Feature | 2x6 | ||
Product Info
| Spg | 3000 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Adapter Series | Micro-Fit 3.0 | Number of Units | 1 |
| Industry Aliases | 43025-1200, 430251200 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0430451200
Molex, LLC
. 0430451200 - Connector Header Through Hole, Right Angle 12 position 0.118" (3.00mm) from Molex. from now!
0430451214
Molex, LLC
. 0430451214 - Connector Header Through Hole 12 position 0.118" (3.00mm) from Molex. from now!

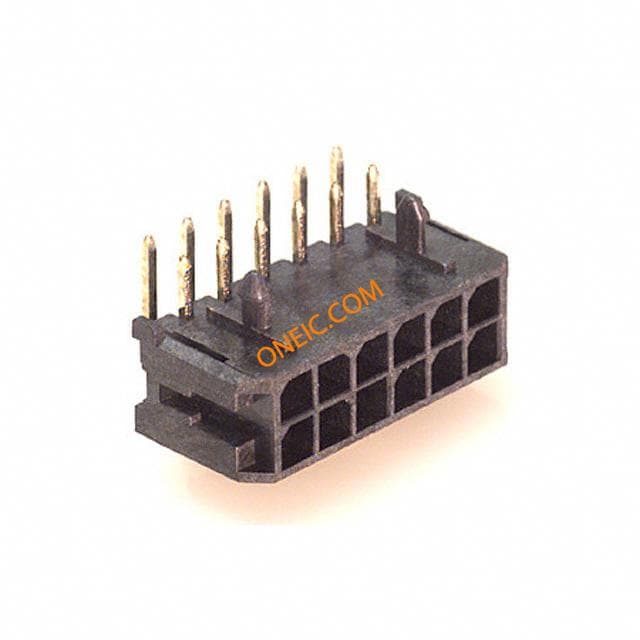

0430451202
molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12POS 3MM R/A GOLD
0430300006
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP

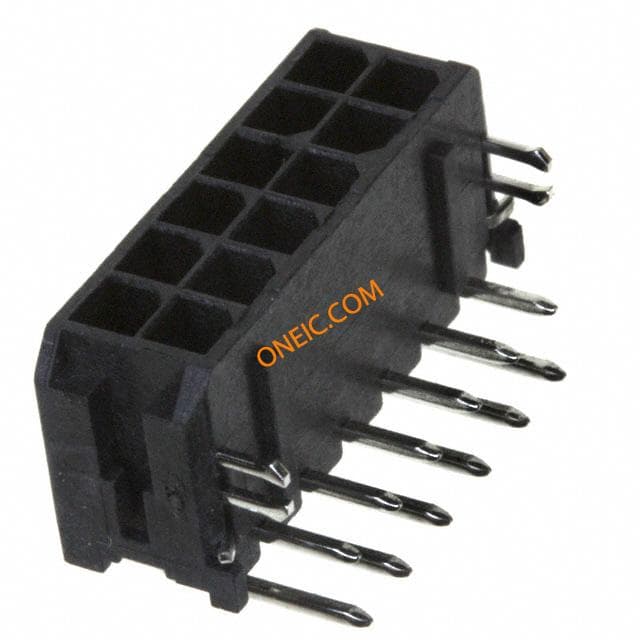

0430451221
molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12PS 3MM R/A TIN
0430300008
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG 15GOLD
0430300010
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned

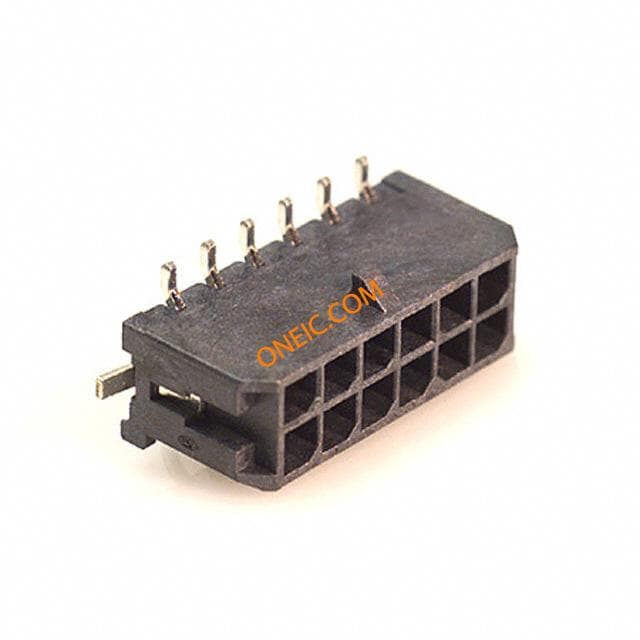

43045-1218
molex
Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R CONN HEADER 12POS VERT SMD TIN Molex 43045 Series 3mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings VERTICAL HEADER 12 P HEADER, 12POS, 2ROW, 3MM MICROFIT3.0VHDR/NAILDRTIN12CKT Pin header dual row SMD Pitch3 mm Poles 2 x 6 Micro-Fit, 43045-1218, Molex Molex MICRO-FIT 3.0 系列 3mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装

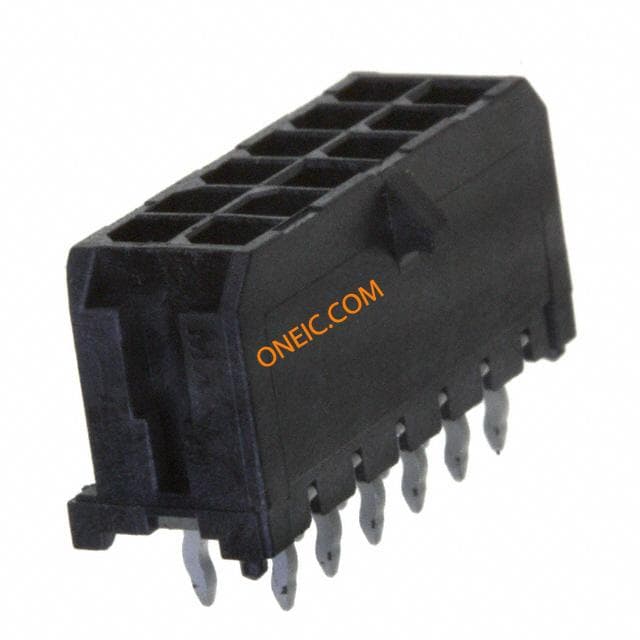

0430451213
Molex, LLC
. 0430451213 - Connector Header Through Hole 12 position 0.118" (3.00mm) from Molex. from now!

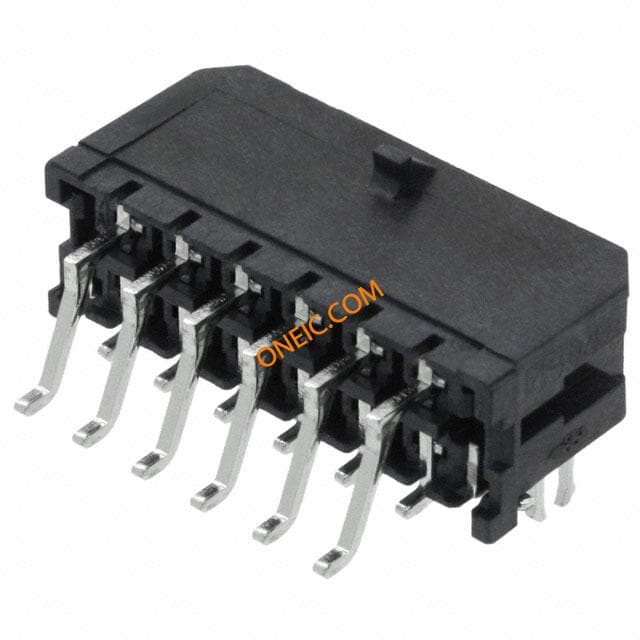

0430451206
Molex
Conn Wire to Board HDR 12 POS 3mm Solder RA SMD Embossed T/R CONN HEADER R/A SMT TIN 12CKT

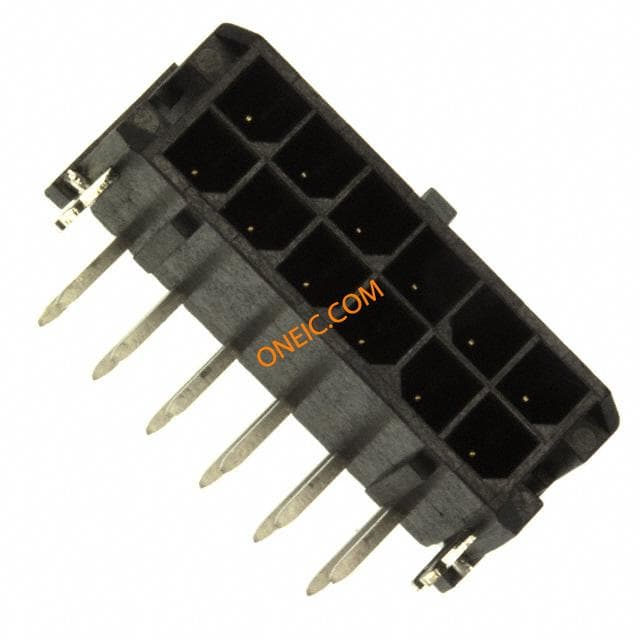

0430451222
Molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12POS 3MM R/A GOLD
0430451212
Molex
Conn Wire to Board HDR 12 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 12POS 3MM VERT TIN Socket; wire-board; male; 3mm; PIN:12; tinned; 5A; UL94V-0; 250V; THT
0430451201
Molex
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 12POS R/A GOLD SMD

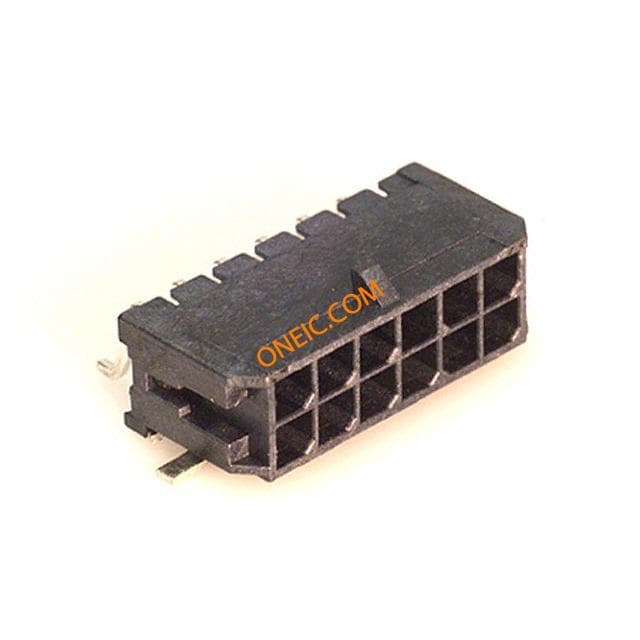

0430451209
Molex, LLC
. 0430451209 - Connector Header Surface Mount, Right Angle 12 position 0.118" (3.00mm) from Molex. from now!

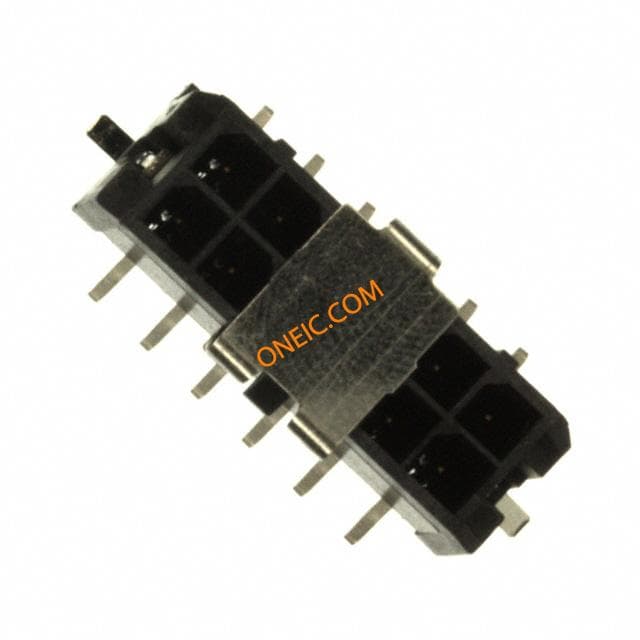

0430451219
Molex
Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R CONN HEADER 12POS 3MM STR SMD AU

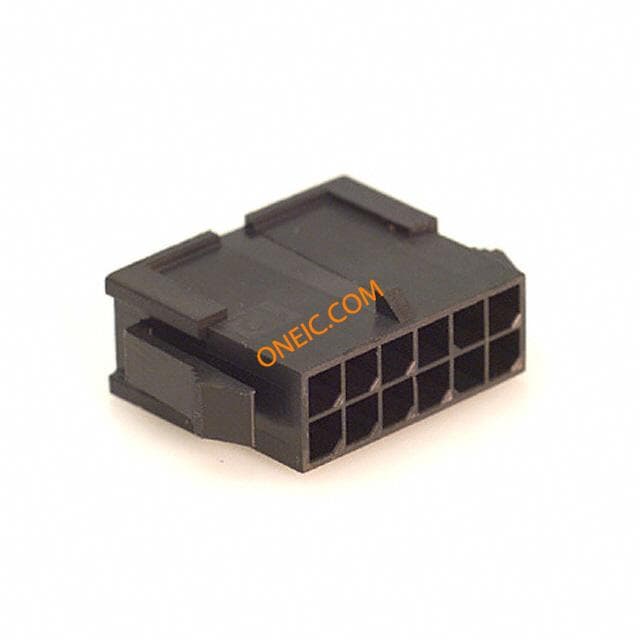

43020-1200
Molex Connector Corporation
CONN PLUG 12POS 3MM DUAL PNL MNT 12 way dual row panel mount plug,5A 3mm 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, with Panel Mount Ears, 12 Circuits PLUG, PANEL MOUNT, 12WAY PLUG W/EARS; PANEL MOUNT; 12 Circuits Male contact housing dual row Pitch3 mm Poles 2 x 6 Micro-Fit, 43020-1200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 面板安装 压接连接器外壳

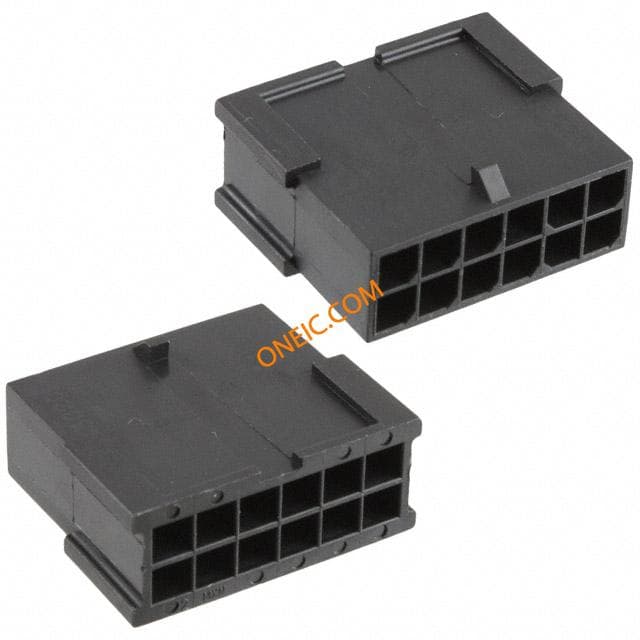

43020-1201
Molex Connector Corporation
CONN PLUG 12POS 3MM VERT DUAL 3.0mm,MicroFit,plug,2row,freehang,12w Headers & Wire Housings 12CKT PLUG HSG DR Conn Housing PL 12 POS 3mm Crimp ST Bag MULTIPOLE CONNECTOR PLUG W/EARS; FREE HANGING; 12 CIRCUITS Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 12 路 直 公 压接连接器外壳
0462355004
Molex Inc
CONN TRM 30U 26-30AWG LUBRICATE

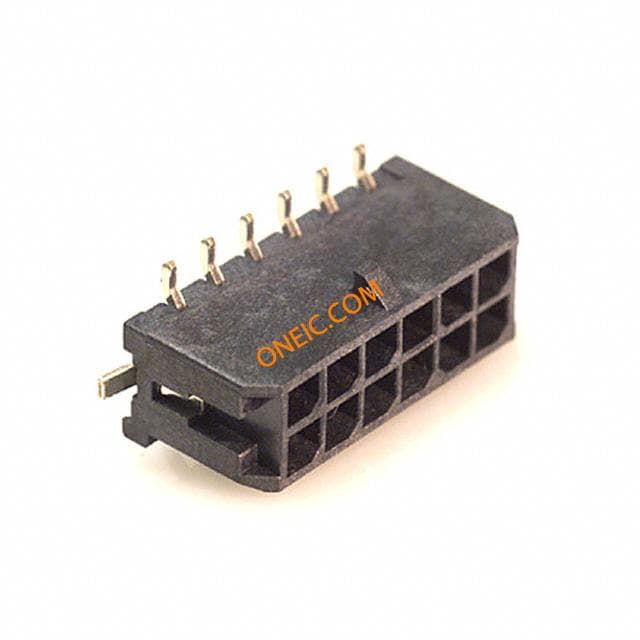

43045-1220
Molex Connector Corporation
CONN HEADER 12POS VERT SMD GOLD Molex 43045 Series 3mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings 12 CKT VERT SMT HDR Conn Wire to Board HDR 12 POS 3mm Solder ST SMD T/R CONNECTOR, HEADER, 12POS, 2ROW, 3MM Molex MICRO-FIT 3.0 系列 3mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装

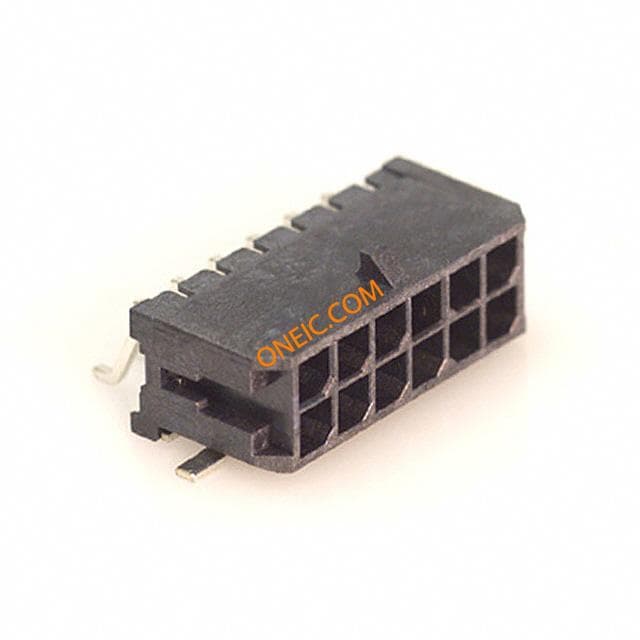

43045-1211
