0039291128
| Manufacturer | |
| Description | Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A TIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 51 Days | Subcategory | Connector Power |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 6/Contact A |
| Voltage - Input (Min) | 600V | Voltage - Supply (Min) | 600V |
Mechanical
| Color | Natural | Depth | 19.4 mm |
| Pitch | 4.2 mm | Height | 11.4 mm |
| Diameter | Not Required mm | Packaging | Bag |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon 6/6 |
| Length - Overall | 36.4 mm | Number of Contacts | 12 |
| Number of Positions | 12 | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Number of Ports | 1 | Industry Aliases | 39-29-1128, 39291128 |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | Operating Temperature - Junction | 105C |
Documents & Media
Online Document
PDF Document
Online Document
PDF Document
PDF Document
Online Document
PDF Document
PDF Document
Online Document
Similar Parts
0039012120
molex
Conn Housing RCP 12 POS 4.2mm Crimp ST Bag CONN RECEPT 12POS DUAL
$1.5708
Details
0039012125
molex
Conn Housing F 12 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 12POS DUAL
$2.7234
Details

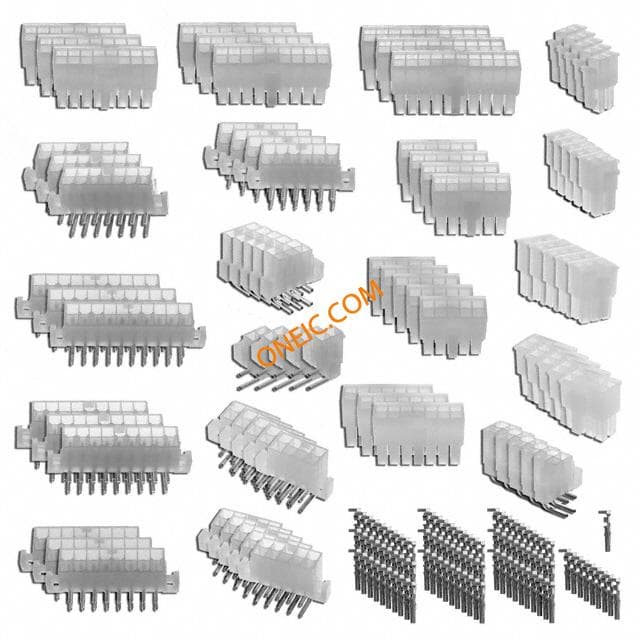

76650-0016
