0039281123
| Manufacturer | |
| Description | Conn Wire to Board HDR 12 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM VERT TIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Subcategory | Connector Power |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 6/Contact A |
| Voltage - Input (Min) | 600VDC|600VAC | Voltage - Supply (Min) | 600VDC/600VAC |
Mechanical
| Color | Natural | Depth | 11 mm |
| Pitch | 4.2 mm | Height | 12.8 mm |
| Diameter | Not Required mm | Packaging | Bag |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Bright Tin Over Copper | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon 66 |
| Length - Overall | 27.2 mm | Number of Contacts | 12 |
| Number of Positions | 12 | Contact Finish Thickness | 35µin (0.90µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Number of Ports | 1 | Industry Aliases | 39-28-1123, 39281123 |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | Operating Temperature - Junction | 105C |
Documents & Media
PDF Document
PDF Document
Similar Parts
0039012120
molex
Conn Housing RCP 12 POS 4.2mm Crimp ST Bag CONN RECEPT 12POS DUAL
$1.5708
Details

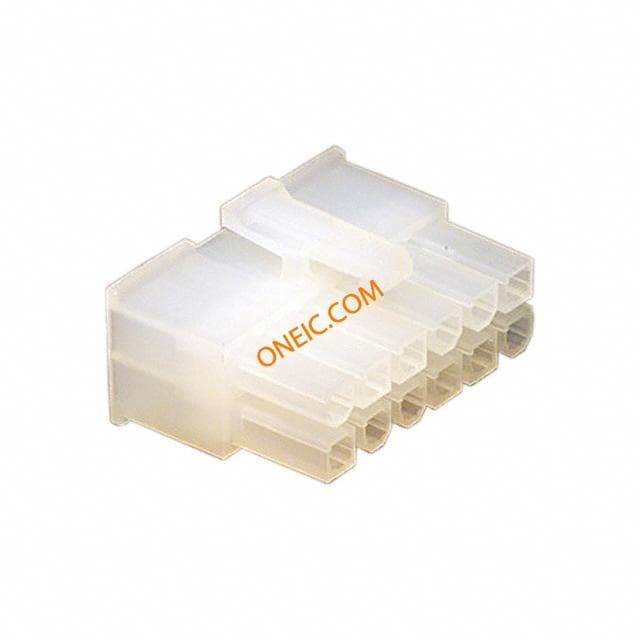

0039012125
molex
Conn Housing F 12 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 12POS DUAL
$2.7234
Details

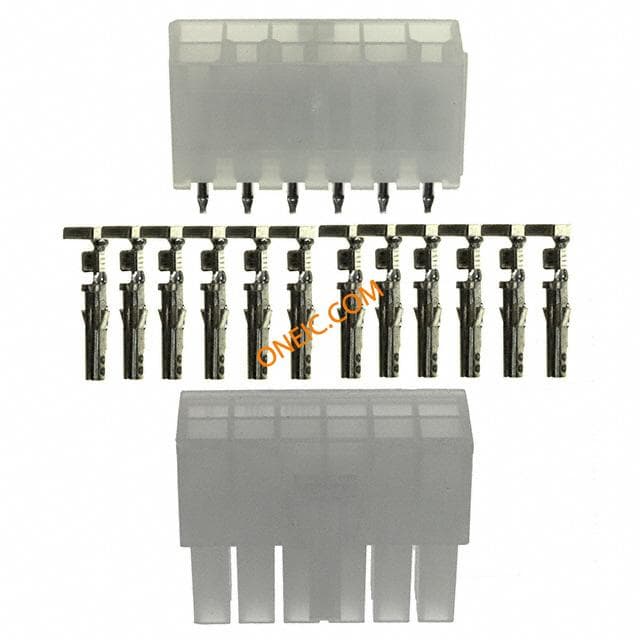

76650-0087
