0022232051
| Manufacturer | |
| Description | Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Bulk Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 5POS .100 VERT TIN |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 6.35 mm |
| Pitch | 2.54 mm | Height | 10.67 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 12.7 mm | Number of Contacts | 5 |
| Number of Positions | 5 | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0022162050
molex
Conn Socket Strip RCP 5 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 5POS .100 R/A PCB

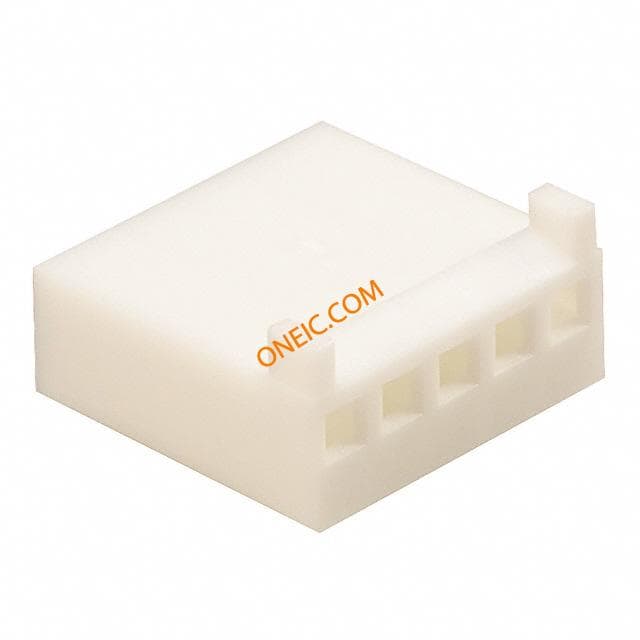

0022013057
molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 5POS .100 W/RAMP/RIB
0022152056
molex
Conn Socket Strip RCP 5 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 5POS .100 R/A PCB
22-01-2051
molex
Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 5POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,5w Headers & Wire Housings 5 CKT TERM HOUSING .100 IN TERMINAL HOUSING; W/O LOCK RAMP; 5 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 5 路 直 母 电缆安装 压接连接器外壳
0022142054
Molex
Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 5POS .100 VERT PCB
0022173052
Molex
Conn Socket Strip RCP 5 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 5POS .100 VERT PCB
0050579505
Molex
Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 5POS .100 SINGLE VER H
0022012055
Molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 5POS .100 W/RAMP/RIB

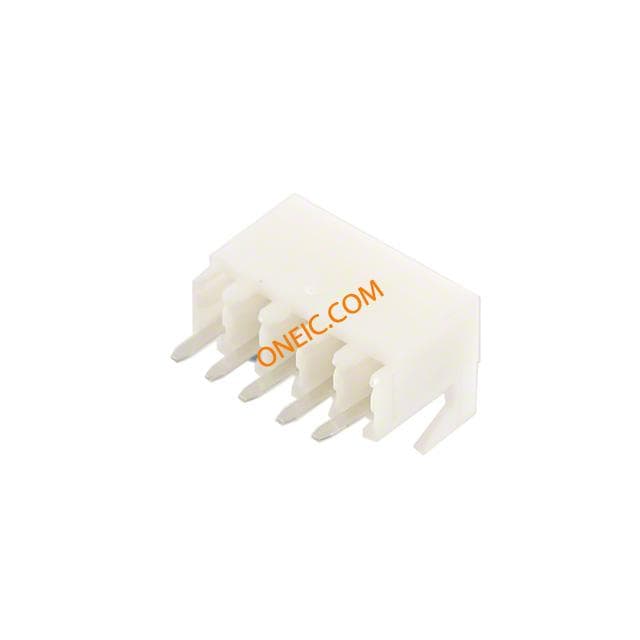

0022182051
