0022232031
| Manufacturer | |
| Description | Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT TIN |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 6.35 mm |
| Pitch | 2.54 mm | Height | 10.67 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 7.62 mm | Number of Contacts | 3 |
| Number of Positions | 3 | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts

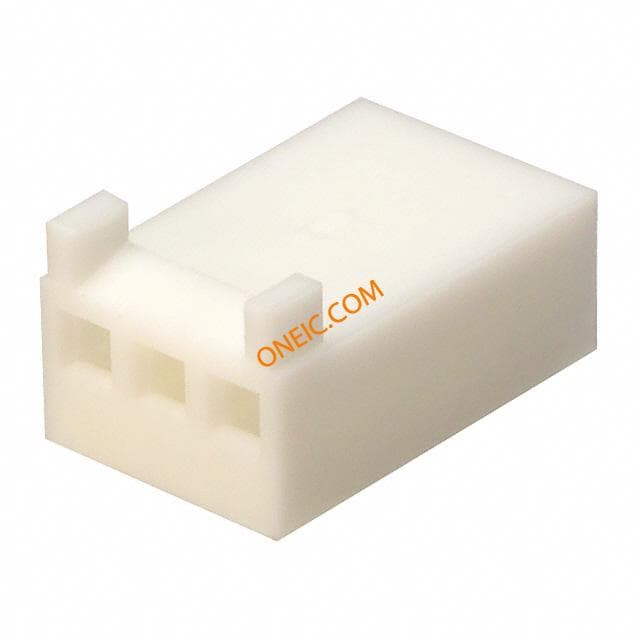

0022013037
