点击放大查看
0022012035
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 3POS .100 W/RAMP/RIB |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 4/Contact A | Voltage - Input (Min) | 250V |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Color | Natural | Depth | 12.7 mm |
| Pitch | 2.54 mm | Height | 4.83 mm |
| Packaging | Bag | Wire Gauge | 22-28 AWG |
| Contact Type | Non Gendered | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Housing Material | Polyamide 66/6 | Length - Overall | 8.08 mm |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Features | Polarizing Key |
| Industry Aliases | 22-01-2035, 22012035 | ||
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0022032031
molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT TIN
0022232031
molex
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT TIN
0022272031
molex
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT TIN

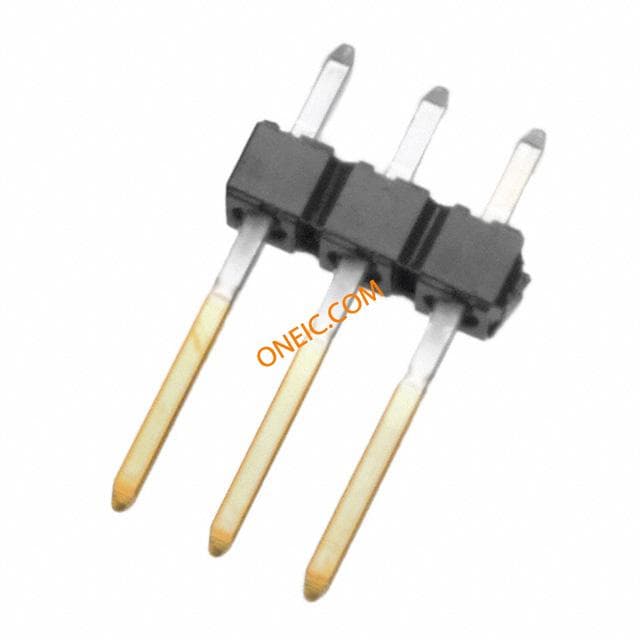

0022284034
molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT GOLD
0022292031
molex
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT GOLD
0022053031
molex
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Bulk Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 3POS .100 R/A TIN
0022284033
molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT GOLD
0022122034
molex
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Bulk Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 3POS .100 R/A GOLD
22-28-4032
molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT TIN Headers & Wire Housings BKWY HDR STR 3P tin BOARD-BOARD CONNECTOR HEADER, 3WAY, 1ROW
22-28-4037
molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT GOLD Headers & Wire Housings BKWY HDR STR 3P 30AU

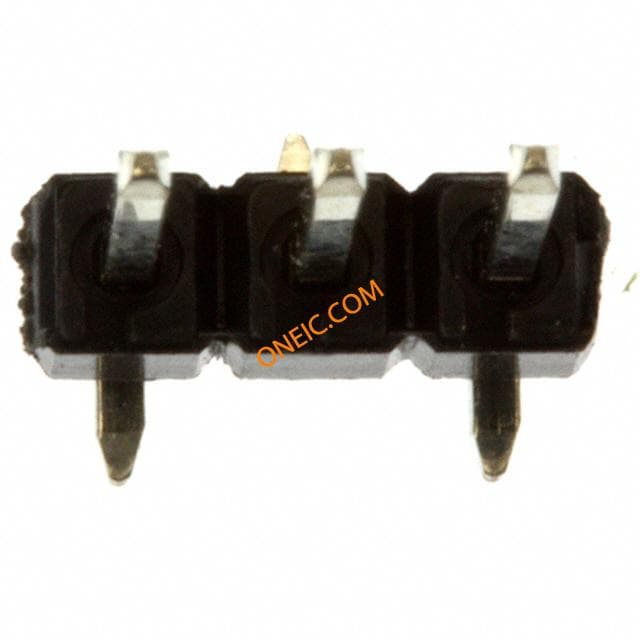

68301-1014
Molex
Headers & Wire Housings 2.54MM BREAKAWAY Vertical 3 CKT CONN HEADER 3POS .100" VERT TIN
0022288033
Molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 3POS .100 R/A GOLD
0022102031
Molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 3POS .100 VERT GOLD
22-05-2031
Molex Connector Corporation
CONN HEADER 3POS .100 R/A TIN Molex 4094 Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 4A Headers & Wire Housings R/A PCB HDR 3P TIN PLATING Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Bag HEADER, R/A, SQ PIN, 0.1", 3WAY .100 RT ANGLE; 3 CIRCUITS Molex KK 254 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 4A , 通孔
22-28-4035
Molex Connector Corporation
CONN HEADER 3POS .100 VERT GOLD Headers & Wire Housings HDR VT 1X03P .1 295/120 15AU Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag BOARD-BOARD CONNECTOR HEADER, 3WAY, 1ROW
22-28-4038
Molex Connector Corporation
CONN HEADER 3POS .100 VERT GOLD Headers & Wire Housings KK 100 Hdr Assy Bkwy Bkwy 03 Ckt 30 SGold
0022288030
Molex Inc
CONN HEADER 3POS .100 R/A TIN
22-28-8034
Molex Connector Corporation
CONN HEADER 3POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 03 Ckt 30 SGold Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Bag
0022284030
Molex
CONN HEADER 3POS .100 VERT TIN

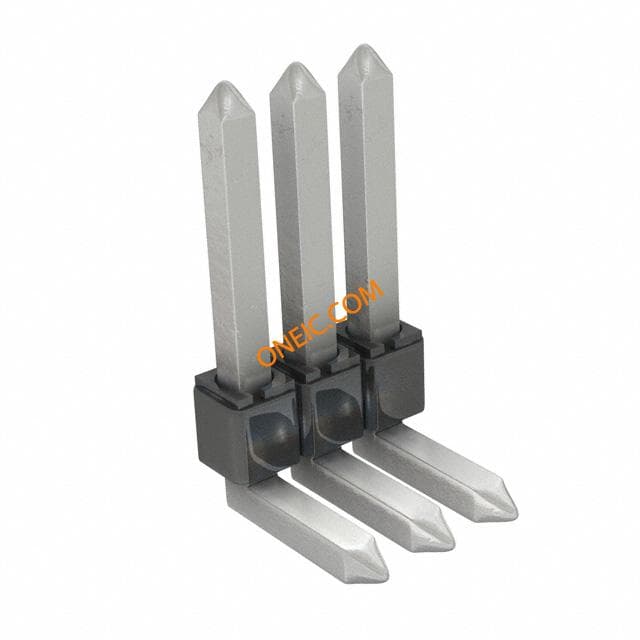

0022288031
