点击放大查看
0022122104
| Manufacturer | |
| Description | Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A GOLD |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 4/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | White | Depth | 12.83 |
| Pitch | 0.100" (2.54mm) | Height | 6.35 |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Friction Lock |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 25.4 |
| Number of Contacts | 10 | Number of Positions | 10 |
| Contact Length - Mating | 0.264" (6.70mm) | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Industry Aliases | 22-12-2104, 22122104 | Number of Positions Loaded | All |
Environmental
| Ingress Protection | - | Operating Temperature | - |
Documents & Media
Similar Parts
0022012107
molex
Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 10POS .100 W/RAMP
0022182101
molex
Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 10POS .100 VERT PCB
0022022105
Molex
Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 10POS .100 VERT PCB

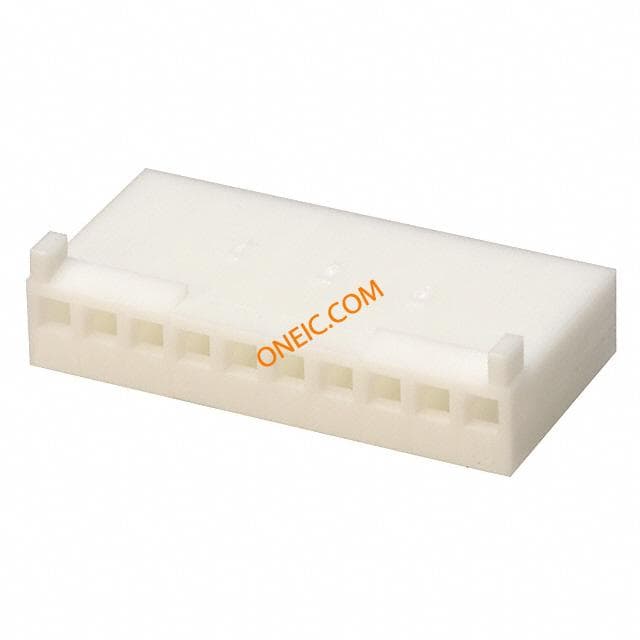

0022013107
