0022152106

Manufacturer	Molex, LLC
Description	Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 10POS .100 R/A PCB
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Lead Time	33 Days	Subcategory	Connector Headers and PCB Receptacles
Standard Package	1

Compliance

RoHS

Lead free / RoHS Compliant

EU RoHS

Compliant

Electrical

Contact Resistance	20 mohm	Current Rating (Max)	2.5/Contact A
Voltage - Input (Min)	250V	Voltage - Supply (Min)	250V

Mechanical

Color	White	Depth	7.9 mm
Pitch	0.100" (2.54mm)	Height	4.7 mm
Packaging	Tray	Termination	Solder
Contact Type	Female Socket	Housing Color	White
Mounting Type	Through Hole	Connector Type	Receptacle
Contact Finish	Tin	Mounting Style	Through Hole
Number of Rows	1	Contact Material	Brass
Housing Material	Nylon	Length - Overall	25.3 mm
Number of Contacts	10	Number of Positions	10
Contact Finish Thickness	100µin (2.54µm)

Product Info

Type	Socket Strip	Gender	RCP
Industry Aliases	22-15-2106, 22152106	Number of Positions Loaded	All

Environmental

Operating Temperature

0C to 75C

Documents & Media

PDF Document

Resin Color 01/Jan/2002

PDF Document

0022152106_PCB_RECEPTACLES.pdf

PDF Document

22-15-2106

Similar Parts

0022112102

molex

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD

$6.2764

Details

0022232101

molex

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT TIN

$2.4045

Details

0022288101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

$2.4133

Details

0022053101

molex

Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

$4.2112

Details

0022052101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bulk Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

$3.8767

Details

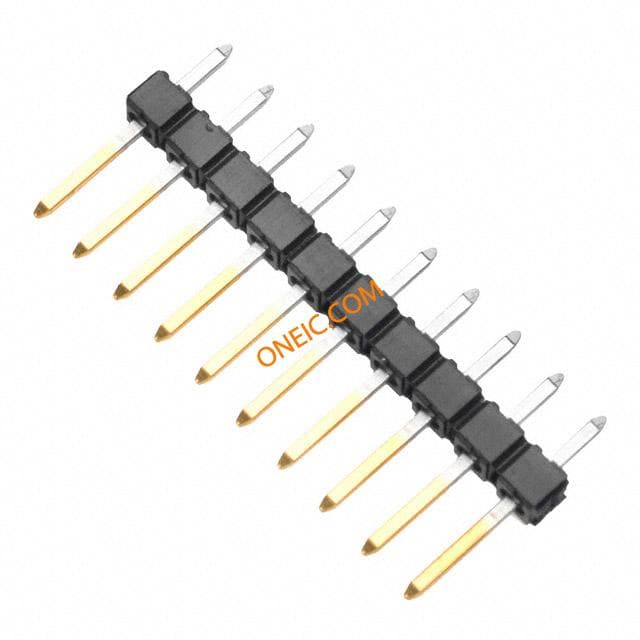

0022284103
