0022032051
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | 8,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 2.34 mm |
| Pitch | 0.100" (2.54mm) | Height | 10.79 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 12.45 mm |
| Number of Contacts | 5 | Number of Positions | 5 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Industry Aliases | 22-03-2051, 22032051 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
PDF Document
Similar Parts
0022162050
molex
$4.1585
Details

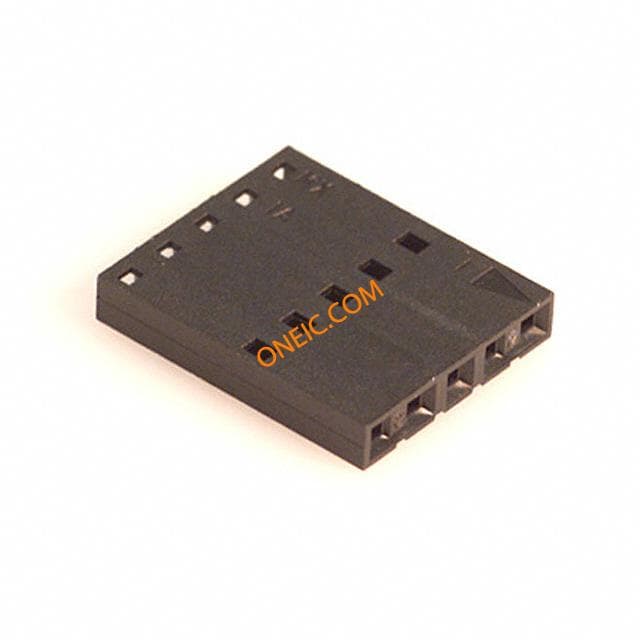

0050579005
molex
$2.0074
Details
0022013057
molex
$0.4124
Details
0022152056
molex
$2.7237
Details
22-01-2051
molex
$0.6399
Details
0022142054
Molex
$2.3276
Details
0022173052
Molex
$3.2686
Details
0022012055
Molex
$0.8004
Details
0022182051
Molex
$3.0824
Details

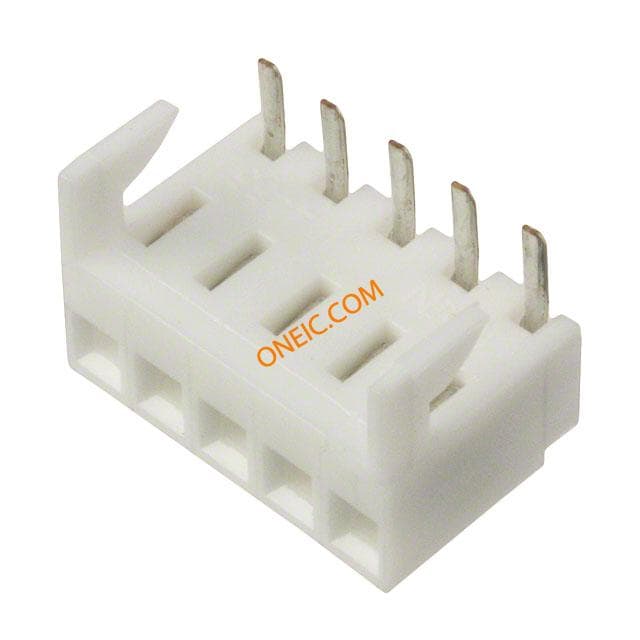

0038001335
Molex
$4.2322
Details
0022012057
Molex
$0.3552
Details

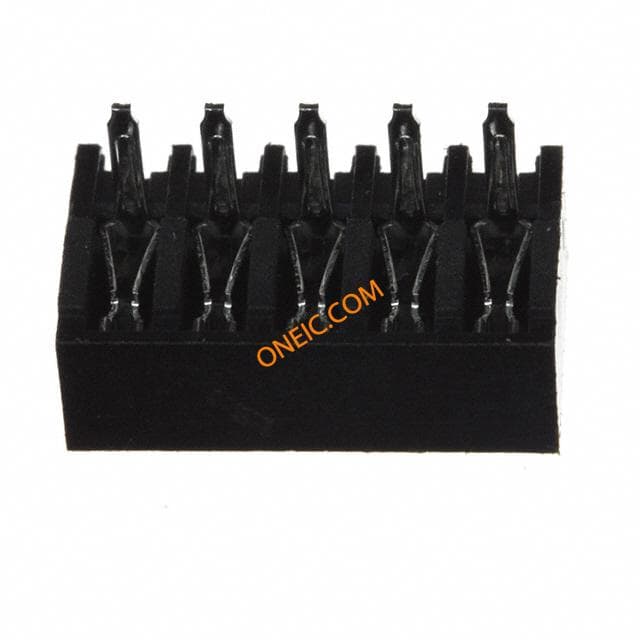

44812-0005
Molex Connector Corporation
$9.5200
Details

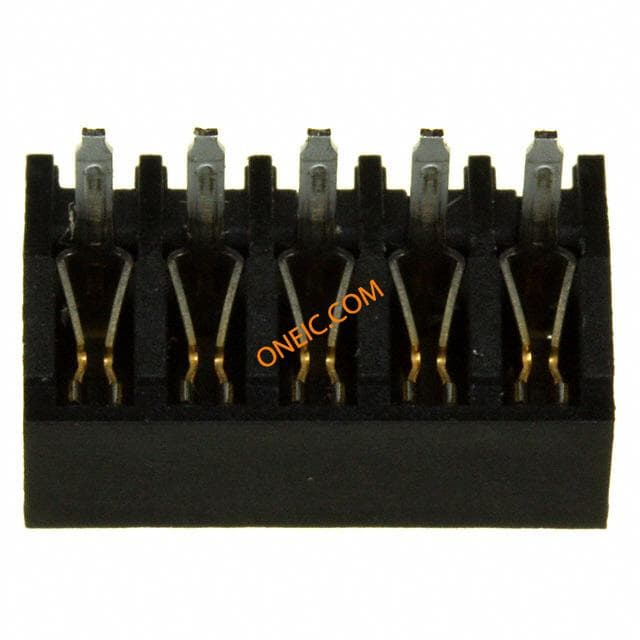

44812-0023
Molex Connector Corporation
$5.5760
Details

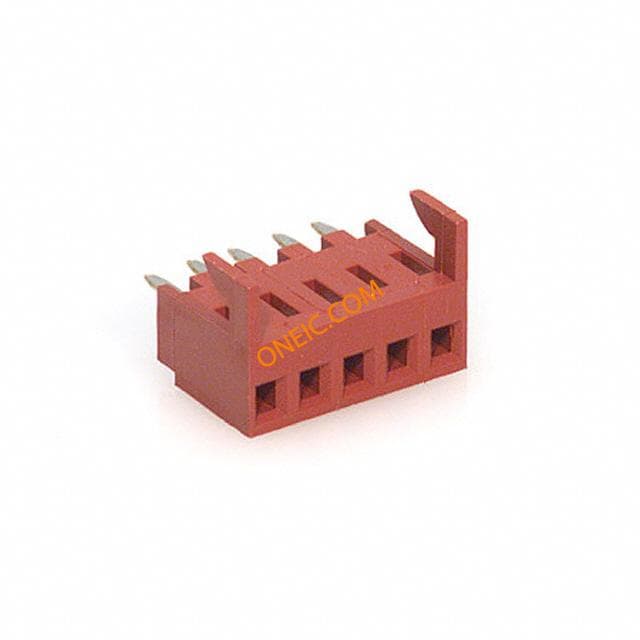

22-02-2055
Molex Connector Corporation
$2.0060
Details
10-11-2053
Molex Connector Corporation
$0.3536
Details
14-60-0051
Molex Connector Corporation
$2.2984
Details
14-56-2051
Molex Connector Corporation
$8.4863
Details
Sourcing & traceability
- Datasheet
- 0022032051_PCB_HEADERS.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
