39-01-2205
| Manufacturer | |
| Description | CONN RECEPT 20POS DUAL 20w D/R receptacle housing Headers & Wire Housings 20 CKT RCPT HOUSING Conn Housing F 20 POS 4.2mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Mini-Fit, Jr.; Dual Row Recept; 20 Circuits Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 20 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Mini-Fit Jr. | Part # Aliases | 0039012205 5557-20R-210 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 2400 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 13 A |
Mechanical
| Color | :White | Depth | 19.6mm |
| Pitch | 4.2mm | Width | 15.1mm |
| Length | 43.2mm | Weight | 0 |
| Body Material | :PA Polyamide (Nylon) | Mounting Type | Straight |
| Connector Type | :Plug & Socket | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 20 | Number of Positions | :20 |
Product Info
| Gender | Female | Series | 5557 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | Mini-Fit Jr. Receptacle | ||
Documents & Media
Similar Parts
2-794657-0
te connectivity / amp
Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT HOUSING 20POS POS LOCK Pin & Socket Connectors 20P RCPT HSG 94V-0 AMP-DUAC Conn Housing RCP 20 POS 4.2mm ST Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions20 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 20P RCPT HSG 94V-0
2-1586041-0
te connectivity / amp
Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS R/A W/O PEGS TE Connectivity PE Series 4.2mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 9A Pin & Socket Connectors RA HDR W/O PEGS 20P Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, RIGHT ANGLE, UL94V-2, 20WAY HEADER,RIGHTANGLE,VAL-U-LOK,20POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 9A , 通孔 20P VAL-U-LOK R/A HDR V2
2-1586037-0
te connectivity / amp
Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 20 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 20P Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 20UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, W/DRAIN HOLES, 94V-2 HEADER,VERTICAL,VAL-U-LOK,20POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 20路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 20P VERT HDR VAL-U-LOK V2
39-00-0079
molex
Contact SKT Crimp ST Cable Mount Reel Crimp term,4.2mm,female,16 AWG,reel Headers & Wire Housings SOCKET 16 AWG REEL TERMINAL, 16AWG, MINI-FIT CONTACT, CRIMP, SOCKET, 16AWG, MI CONTACT, CRIMP, RECEPTACLE, 16AWG, REEL Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡触点
39-00-0078
molex
Contact SKT Crimp ST Cable Mount Bag Standard receptacle contact,16 awg Headers & Wire Housings SOCKET 16 AWG BULK CRIMP SOCKET, 16AWG, PK100 CONTACT, SOCKET, 16AWG, CRIMP Mini-Fit Crimp Terminal 5556, 16 AWG, Bag, Brass, Tin (Sn) Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡触点
39-29-3206
molex

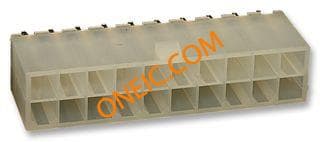

Conn Wire to Board HDR 20 POS 4.2mm Solder ST Thru-Hole Headers & Wire Housings 20 CKT VERT HEADER Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port Bag
