22-05-2041
| Manufacturer | |
| Description | CONN HEADER 4POS .100 R/A TIN Molex 4094 Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 4A Headers & Wire Housings R/A PCB HDR 4P TIN PLATING Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Bag HEADER, R/A, SQ PIN, 0.1", 4WAY .100 RT Angle:4 Circuits Molex KK 254 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 4A , 通孔 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0022052041 A-4094-04A102 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 250 V | Number of Poles | :4 |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Current Rating (Max) | 4A | ||
Mechanical
| Color | White | Pitch | 0.100" (2.54mm) |
| Weight | 0.02 | Material | :Nylon |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :2.54mm |
| Mounting Type | Through Hole, Right Angle | Release Force | :0.57N |
| Connector Type | Header, Unshrouded | Contact Finish | Tin |
| Number of Rows | 1 | Insertion Force | :2N |
| Contact Material | Brass | Housing Material | Nylon |
| Termination Style | Through Hole | Color - Connectors | :White |
| Number of Contacts | 4 | Contact Termination | :Solder |
| Number of Positions | 4 | Contact Length - Mating | 0.369" (9.37mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Unshrouded Header | Gender | :Header |
| Series | 4094 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :+75°C | ||
Documents & Media
Similar Parts
0022012045
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 4POS .100 W/RAMP/RIB
0050579004
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Bag CONN HOUSING 4POS .100 SINGLE
0022012047
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/RAMP
0010112043
Molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Bag CONN HOUSING 4POS .100 HI PRESS
0022152046
molex
Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 4POS .100 R/A PCB
0022162040
molex
Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 4POS .100 R/A PCB
22-01-2041
molex
Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,4w Headers & Wire Housings 4 CKT TERM HOUSING Connector Housing .100 TERMINAL HOUSING; W/O LOCK RAMP; 4 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 4 路 直 母 电缆安装 压接连接器外壳
0448120004
Molex
Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 4POS .100" TIN PCB
0022013047
Molex
Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 4POS .100 W/RAMP/RIB Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag

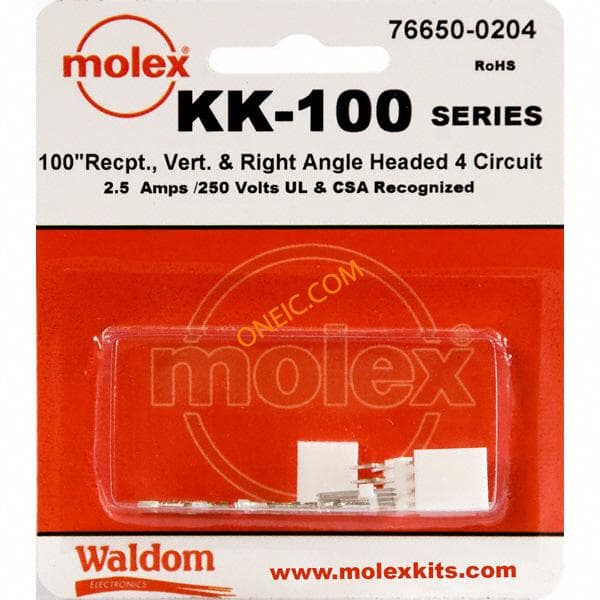

76650-0204
