15-97-5061
| Manufacturer | |
| Description | CONN RCPT 6POS DUAL MINI-FIT Headers & Wire Housings TPA RECPT DUAL 6P Conn Housing RCP 6 POS 4.2mm Crimp ST Bag RECEPT, MINI-FIT TPA, 4.2MM, 6WAY MINIFIT TPA RECEPTACLE V-0 |
| Category |
Business
| Tradename | Mini-Fit TPA | Part # Aliases | 0015975061 30067-06A2 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85472000 | ||
Electrical
| Current Rating (Max) | 13 A | ||
Mechanical
| Color | Black | Pitch | 0.165" (4.20mm) |
| Weight | 0.002 | Packaging | Bulk |
| Row Spacing | 0.217" (5.51mm) | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 2 | Housing Material | Polyester |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | ||
Product Info
| Note | Contacts Not Provided | Gender | :Socket |
| Series | 30067 | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | :TPA and CPA Pieces | ||
Documents & Media
Similar Parts
0039000186
molex
Contact F Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 16AWG GOLD Contact SKT Crimp ST Cable Mount Loose Piece
0015978067
molex
Conn Wire to Board HDR 6 POS 4.2mm Solder RA Thru-Hole Tray CONN HEADER 6POS DUAL GOLD R/A
0039000207
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000183
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-28AWG 30GOLD
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000180
molex
Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM
39-00-0055
Molex
Headers & Wire Housings SOCKET 18-24AWG REEL CONN TERM FEMALE 18-24AWG GOLD
0015977062
Molex
Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Bag CONN HEADER 6POS 4.2MM STR TIN
0039000182
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN
0039000155
Molex
Contact SKT Crimp ST Cable Mount
0015978062
Molex
Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray CONN HEADER R/A TIN 6CKT
39-00-0154
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG 30GOLD CONTACT, CRIMP, SOCKET, 24-18AWG

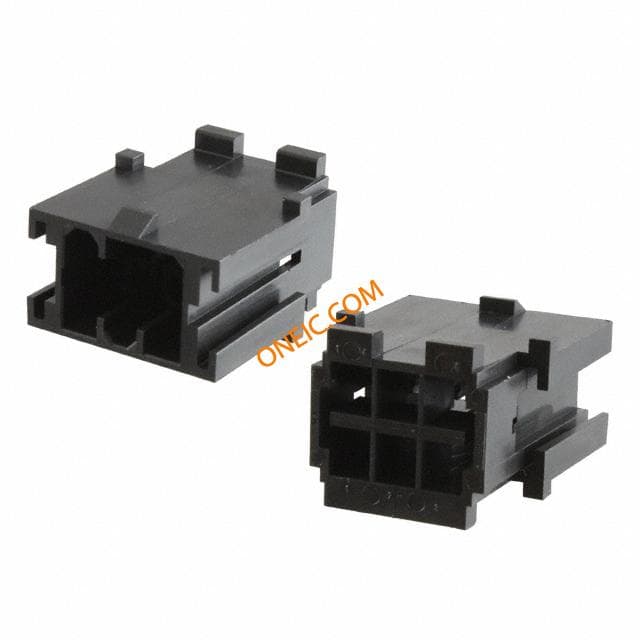

15-97-6061
Molex Connector Corporation
CONN PLUG 6POS DUAL MINI-FIT Headers & Wire Housings 4.2MM 6P PLG HSG 2ROW W/SEC TERM RET 4.20mm Pitch Mini-Fit® TPA Plug Housing, Dual Row with Secondary Terminal Retention, 6 Circuits PLUG, MINI-FIT TPA, 4.2MM, 6WAY MINIFIT TPA PLUG V-0 BLK 6CKT

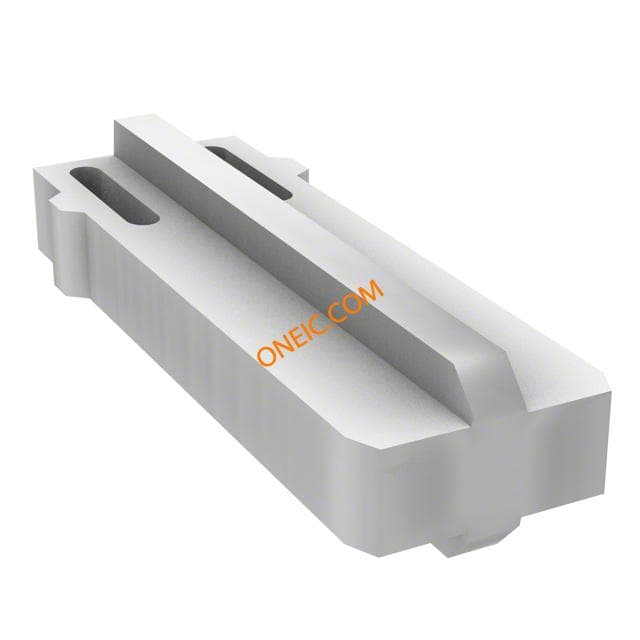

15-97-9061
Molex Connector Corporation
CONN KEY RETENT FOR MINI-FIT JR Headers & Wire Housings MINI-FIT TPA KEY Conn Housing RCP 6 POS 4.2mm Crimp ST Bag
0460182541
Molex Inc
CONN TERM SOCKET 22-24AWG GOLD 0460182541
0460183541
Molex Inc
CONN TERM SOCKET 16AWG GOLD 0460183541
39-00-0158
Molex Connector Corporation
CONN TERM FEMALE 16AWG 30GOLD Contact SKT Crimp ST Cable Mount Loose Piece

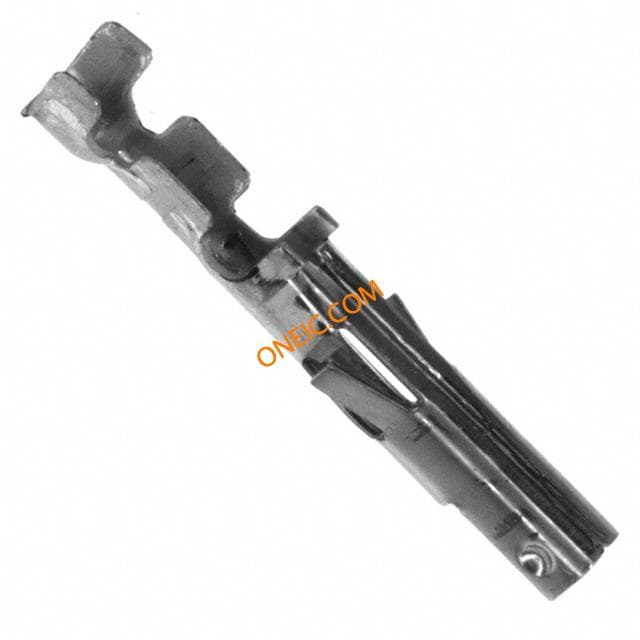

39-00-0156
Molex Inc
CONN TERM FEMALE 22-28AWG 30GOLD Contact SKT Crimp ST Cable Mount Loose Piece MiniFit Term Crp Fem Lse Bz 30Au 22-28

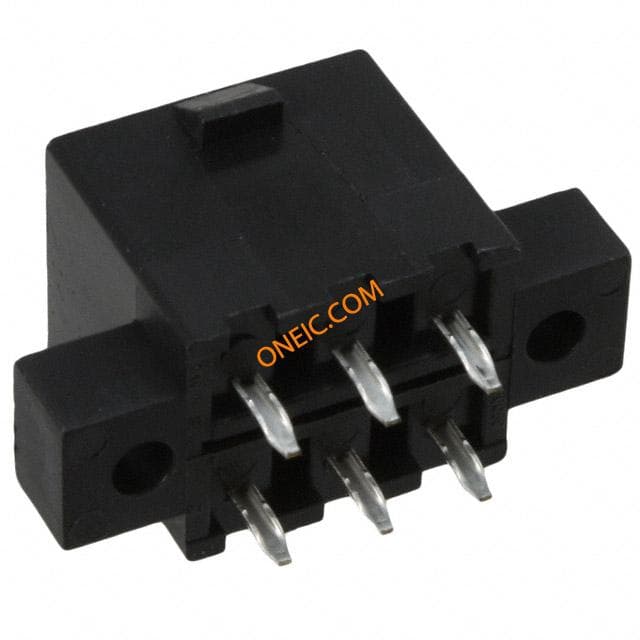

15-97-7064
