09-50-7041

Manufacturer	Molex, LLC
Description	CONN HOUSING 4POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,4way Headers & Wire Housings HSG 4P W/O LKG RAMP Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, 3.96MM, 4WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 4 CIRCUITS Molex KK 396 系列 3.96mm 节距 4 路直母电缆安装压接连接器外壳
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Tradename	KK	Part # Aliases	0009507041 2139-4C 9507041
Product Category	Headers & Wire Housings	Standard Package	1
Factory Pack Quantity	1500

Compliance

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85366990

Electrical

Range deg/s

:MOLEX - KK 2139 Series

Mechanical

Color	Natural	Depth	15.88mm
Pitch	0.156" (3.96mm)	Width	6.4mm
Length	15.75mm	Weight	0.011
Packaging	Bulk	Contact Type	Non Gendered
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Contact Finish	:-	Mounting Style	Wire
Number of Rows	1	Contact Material	:-
Housing Material	Nylon	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Number of Contacts	4
Contact Termination	Crimp	Number of Positions	4

Product Info

Note	Contacts Not Provided	Gender	Female
Series	2139	CAD Drawing	3D CAD Model
Product Type	Receptacles / Sockets - Housings	For Use With/Related Products	KK Connector

Documents & Media

PDF Document

09-50-7041

Similar Parts

0008500106

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

$0.3618

Details

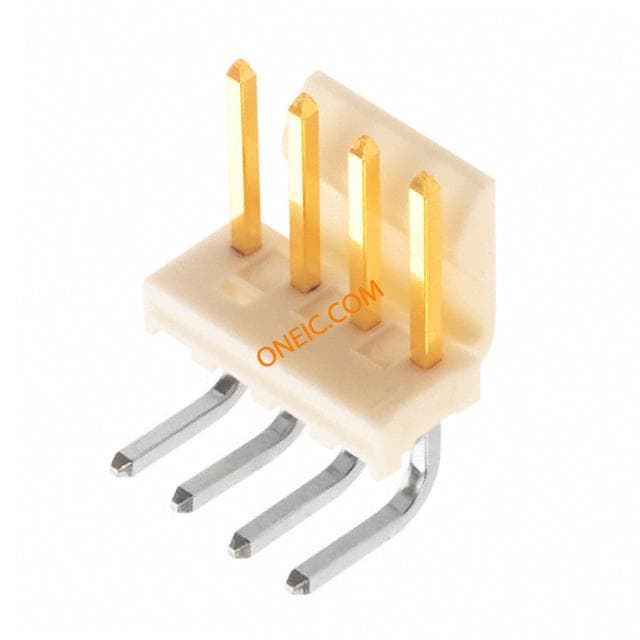

0026615040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 4POS .156 R/A GOLD

$11.7476

Details

0026614040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 4POS .156 VERT GOLD

$5.7994

Details

0008580104

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD

$62.7210

Details

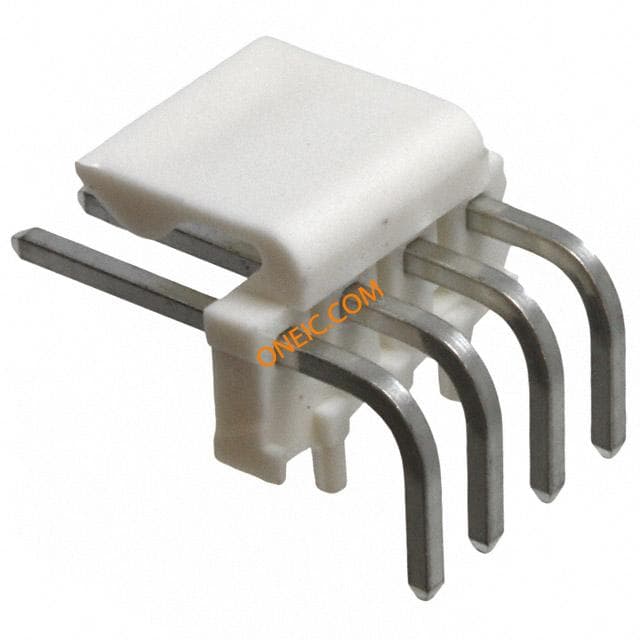

0026645040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag 156 HDR FRLK RTAN PEG 4CKT TIN

$1.3858

Details

0026605040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 4POS .156 R/A TIN

$1.5966

Details

0008520811

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24 AWG TIN

$62.7210

Details

0026482046

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 4POS .156 R/A GOLD

$9.0558

Details

0008600004

molex

Contact SKT Crimp ST Cable Mount T/R CONN TERM CRIMP 22-26-AWG TIN

$0.5318

Details

26-48-2044

Molex

Headers & Wire Housings RA B/A HDR 4P polarizing wall CONN HEADER 4POS .156 R/A GOLD

$16.8300

Details

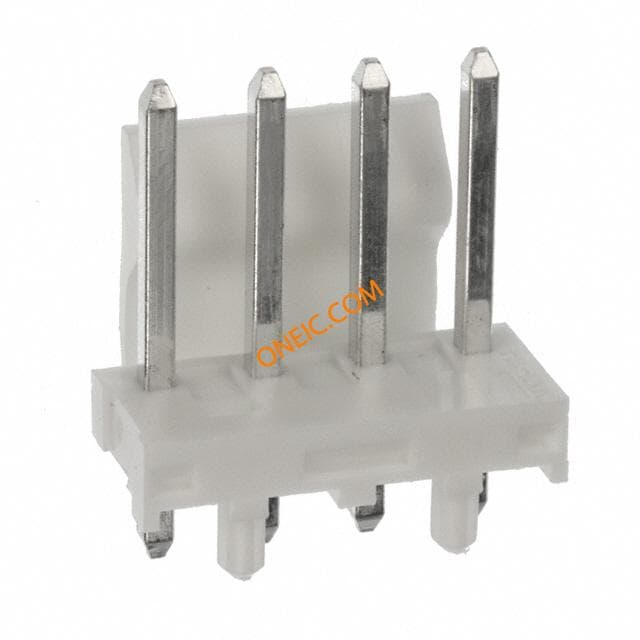

26-64-4040
