110-44-324-41-001000

Manufacturer	Mill-Max Mfg. Corp.
Description	Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 24PIN MS TIN/TIN .300 IC & Component Sockets 24P TIN PIN TIN CONT DIP SOCKET, 24POS, THROUGH HOLE
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connector Accessories

对参数有疑问？问 AI 助手

Business

Product	DIP / SIP Sockets	Product Category	IC & Component Sockets
Standard Package	16	Factory Pack Quantity	16

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Tariff No	85369010	Material Flammability Rating	UL 94 V-0

Electrical

Voltage Rating	1 kV	Contact Resistance	10
Current Rating (Max)	3 A	Insulation Resistance	10000
Voltage - Input (Min)	150VDC\|100VAC

Mechanical

Depth	10.16	Pitch	0.100" (2.54mm)
Height	4.19	Weight	0.002
Base Type	Open Frame	Packaging	Tube
Row Spacing	7.62 mm	Termination	Solder
Pitch - Post	:7.62mm	Mounting Type	Through Hole
Connector Type	:DIP Socket	Contact Finish	Tin Over Nickel
Mounting Style	Through Hole	Number of Rows	2
Package / Case	DIP	Contact Material	Beryllium Copper Alloy
Housing Material	Polychlorinated Terphenyl	Length - Overall	30.4
Termination Style	Solder Tail	Number of Contacts	24
Contact Termination	:Solder	Insulation Material	Polychlorinated Terphenyl
Contact Finish Thickness	200µin (5.08µm)	Number of Positions or Pins (Grid)	24 (2 x 12)

Product Info

Type	DIP Socket	Gender	SKT
Series	:110	Features	Open Frame

Environmental

Operating Temperature

- 55 C to + 125 C

Documents & Media

PDF Document

090-259652.pdf

Similar Parts

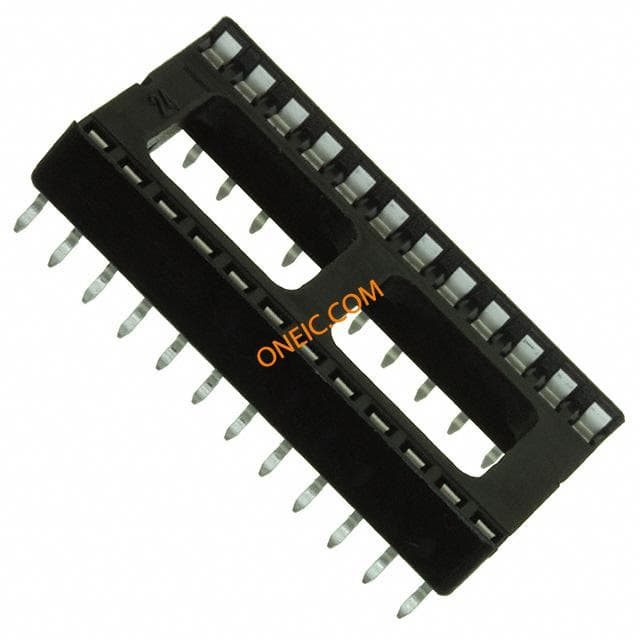

4824-6004-CP
