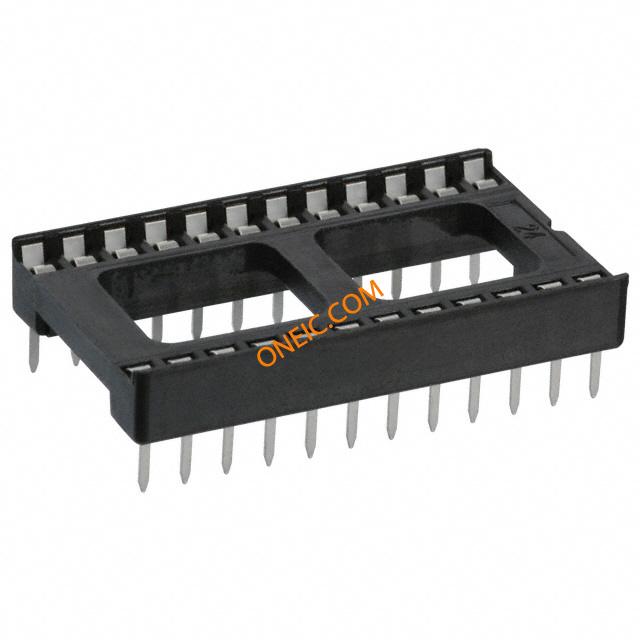

4824-6000-CP
| Manufacturer | |
| Description | Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole IC & Component Sockets 24P DUAL WIPE DIPSKT SOCKET IC OPEN FRAME 24POS .6" Socket;DIP;24Cnts;DualWipe;0.6InSpc.;PhosphorBronze;Nickel;Str.Tail;4800Series |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Part # Aliases | 05111175243 80000913188 |
| Product Category | IC & Component Sockets | Standard Package | Bulk |
| Factory Pack Quantity | 80 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 100 VAC | Current Rating (Max) | 1 A |
| Insulation Resistance | 5000 MOhms | ||
Mechanical
| Pitch | 2.54 mm | Width | 17.78 mm |
| Length | 30.35 mm | Base Type | Open Frame |
| Packaging | Tube | Row Spacing | 15.24 mm (0.6 in) |
| Termination | Solder | Contact Type | Type B |
| Mounting Type | Through Hole | Contact Finish | Tin over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Primary Material | DIP | Pin Hole Diameter | 0.1In. |
| Termination Style | Solder Tail | Number of Contacts | 24 |
| Contact Finish Thickness | 35µin (0.90µm) | Number of Positions or Pins (Grid) | 24 (2 x 12) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Features | DIP socket, straight solder tail | Manufacturer | 4800Series |
Environmental
| Operating Temperature | - 25 C to + 85 C | ||
