TC4427EPA
| Manufacturer | |
| Description | MOSFET DRVR 1.5A 2-OUT Lo Side Non-Inv 8-Pin PDIP Tube 1.5A Dual MOSFET Drvr IC MOSFET DVR 1.5A DUAL HS 8-DIP 1.5A DUAL MOSFET DRVR Gate Drivers 1.5A Dual MOSFET Dr NonInver Etemp PDIP8 IC, MOSFET DRIVER, LOW-SIDE 1.5ADUALMOSFETDRVR |
| Category |
Business
| MOQ | 500 | Product | MOSFET Gate Drivers |
| Unit Pack | 60 | Product Category | Gate Drivers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85411000 | Rad Hardened | No |
Electrical
| Fall Time | 30 ns | Delay Time | 20ns |
| Input Type | Non-Inverting | Power - Rated | 0.73 W |
| Voltage Rating | 4.5 V | Rise Time (Typ) | 30 ns |
| Current - Output | 4.5 mA | Current - Supply | 4.5 mA |
| Driver Circuitry | Low Side | Voltage - Supply | 4.5 V ~ 18 V |
| Number of Outputs | 2 | Current - Peak Output | 1.5(Typ) A |
| Voltage - Supply (Min) | 18 V | Input Logic Level - Low | CMOS/TTL |
| Power Dissipation (Max) | 730 mW | Delay Time - Propagation | 50 ns |
| Input Logic Level - High | CMOS|TTL | Resistance - Wiper (Ohms) (Typ) | 7 Ohm |
| Current - Peak Pulse (10/1000us) | 1.5A | ||
Mechanical
| Weight | 0.01 | Packaging | Tube |
| Case Color | :DIP | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Number of Positions | 8 | Supplier Device Package | 8-PDIP |
Product Info
| Type | Low Side | Configuration | Low-Side |
| Module/Board Type | :Low Side | Number of Drivers | 2 |
| Number of Configurations | 2 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
TC4427EPA
microchip
MOSFET DRVR 1.5A 2-OUT Lo Side Non-Inv 8-Pin PDIP Tube 1.5A Dual MOSFET Drvr IC MOSFET DVR 1.5A DUAL HS 8-DIP 1.5A DUAL MOSFET DRVR Gate Drivers 1.5A Dual MOSFET Dr NonInver Etemp PDIP8 IC, MOSFET DRIVER, LOW-SIDE 1.5ADUALMOSFETDRVR
TC4427AEPA
microchip
MOSFET DRVR 1.5A 2-OUT Lo Side Non-Inv 8-Pin PDIP Tube 2xMOSFETDr 1.5A 18V N DIP-8 SMD IC MOSFET DVR 1.5A DUAL HS 8-DIP MOSFET dual non-inverting driver, 1.5A Driver; MOSFET; 1.5A Dual; PDIP-8; I-Temp Gate Drivers 1.5A Dual td Match Driver,MOSFET,1.5ADual,PDIP-8,I-Temp Driver; 1.5A; Channels:2; non-inverting; 4.5÷18V; DIP8 Driver IC PDIP-8,12 Ohm, TC4427AEPA, Microchip Microchip 双 MOSFET 功率驱动器, 1.5A, 非反相, 8针 PDIP封装

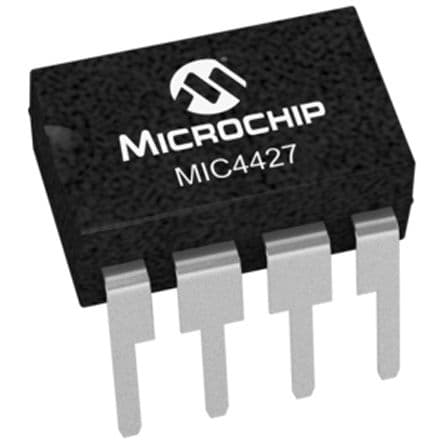

MIC4427YN
