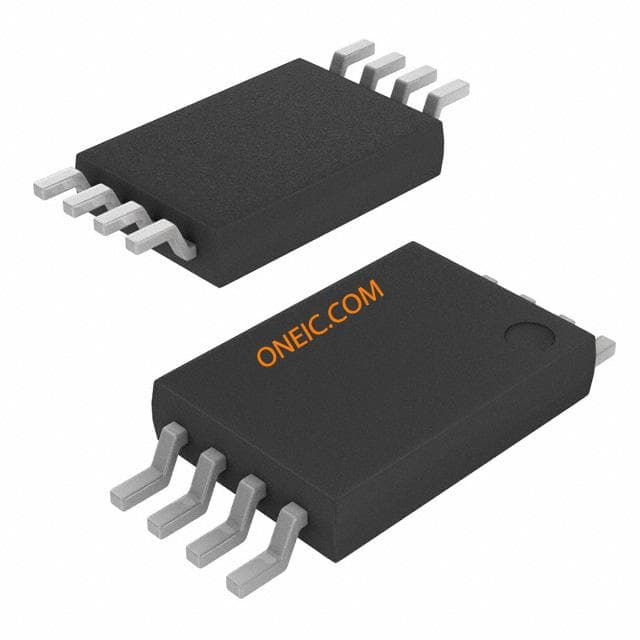

MCP9843-BE/ST
| Manufacturer | |
| Description | Temp Sensor Digital Serial (2-Wire, I2C) 8-Pin TSSOP JEDEC Serial output temp sensor, +/- IC TEMP SENSOR DGTL 8-TSSOP MCP9843-BE/ST, Temperature Sensor ±2°C Serial-I2C, SMBus 3.3V 8-Pin TSSOP Board Mount Temperature Sensors JEDEC Serial Output +/-1 deg C max accy TEMPERATURE SENSOR IC IC, TEMP SENSOR, DIGITAL, 8TSSOP 8TSSOP4.4mmTUBE,JEDECSerialoutputtempsensor,+/-1degCmaxaccy(Bgrad Temperature sensor; serial output; -40÷125°C; TSSOP8; SMD; 3÷3.6V Temperature sensor TSSOP-8, MCP9843-BE/ST, Microchip |
| Category |
Business
| MOQ | 3300 | Unit Pack | 100 |
| Other Names | MCP9843BEST | Standard Package | Rail / Tube |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 00000000 |
Electrical
| Output | Serial | Accuracy | ±1 °C |
| Impedance | 1Ohm | Interface | Serial (2-Wire, I2C) |
| Tolerance | 0,5°C | Output Fan | No |
| Output Type | Digital | Sensor Type | Internal |
| Sensing Range | :-40°C to +125°C | Voltage Range | 3-3.6V |
| Number of Bits | 12 bit | Voltage Rating | 3 V |
| Current - Output | 1 uA | Voltage - Supply | 2.7 to 5.5 V |
| Digital I/O Lines | 2-Wire, I2C, SMBus | Resolution (Bits) | :8bit |
| Voltage - Supply (Min) | 3.6 V | ||
Mechanical
| Width | 4.5mm | Height | 1.05mm |
| Length | 3.1mm | Weight | 0 |
| Packaging | Tube | Lead Style | Gull-wing |
| Body Finish | TSSOP | Termination | SurfaceMount |
| Mounting Type | Surface Mount | Contact Timing | :± 0.5°C |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3 |
| Package Quantity | TSSOP | Primary Material | Temperature |
| Size / Dimension | 3.1 x 4.5 x 1.05mm | Number of Positions | 8 |
| Shell Size - Insert | 1 | Supplier Device Package | 8-TSSOP |
Product Info
| Spg | 100 | Type | Temperature |
| Series | MCP9843 | DELETED | Compliant |
| Function | Temp Sensor | Shutdown | Yes |
| Topology | ADC (Sigma Delta), Register Bank | Base Unit | :9843 |
| Output Alarm | Yes | Configuration | Local |
| Measuring Range | 125°C | Number of Units | 1 |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature Range | -40to125°C | Temperature - Test | -40...125°C |
| Sensing Temperature | -40°C ~ 125°C | Operating Temperature | -40°C ~ 125°C |
| Switching Temperature | Programmable | Sensing Temperature - Local | :-40°C |
