MCP7383XRD-PPM
| Manufacturer | |
| Description | MCP7383X Li-ion System Power Path Management Reference Design Power Management IC Development Tools LI-ION SYS PWR PATH MGT REF Design LI-ION SYS PWR PATH MGMT REF Design REFERENCE DESIGN PWR-PTH MCP7383 MCP7383X, LI-ION, PPM, REF DESIGN |
| Category |
Business
| MOQ | 4 | Product | Power Management Modules |
| Unit Pack | 1 | Other Names | MCP7383XRDPPM |
| Product Category | Power Management IC Development Tools | Standard Package | Boxed |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Core Type | :Power Management - Battery | Voltage Rating | 6 V |
| Current - Output | 500 mA | Number of Elements | :MCP73831, MCP73832, MCP73833, MCP73834 |
Mechanical
| Weight | 0.25 | ||
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | No | Features | :Blue LED Indicates Charge Status, Dip Switch to Select Programmable Fast Charge Current |

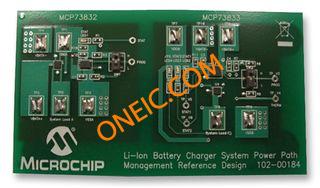

| Function | Reference design board for MCP7383x battery charger management family | Kit Type | :Power Management - Battery |

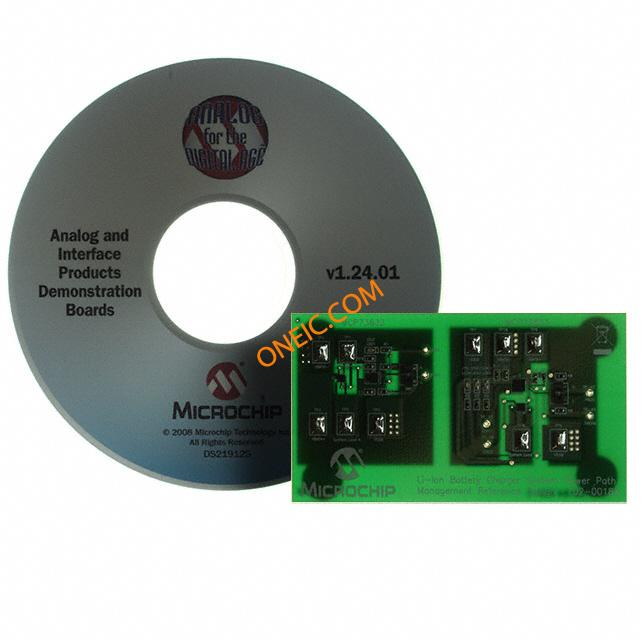

| Kit Contents | :Board, CD-ROM | Main Purpose | Power Management, Battery Charger |
| Tool Type Feature | MCP73831, MCP73832, MCP73833, MCP73834 | Primary Attributes | 1 Cell- Li-Ion / Li-Pol, 50mA ~ 1A / 25 ~ 400mA, 3.75 ~ 6 V Input, 2 Circuits |
| Utilized IC / Part | MCP73832, MCP73833 | Chipset Manufacturer | :Microchip |
| Secondary Attributes | Safety Timer, Cell Temperature Monitoring, Status LEDs | Application Specifics | :Battery Charger |
| MCU Supported Families | :MCP73832, MCP73833 | For Use With/Related Products | Li-Ion / Li-Po Batteries |
Environmental
| Operating Temperature | - 40 C | ||
Documents & Media
Similar Parts

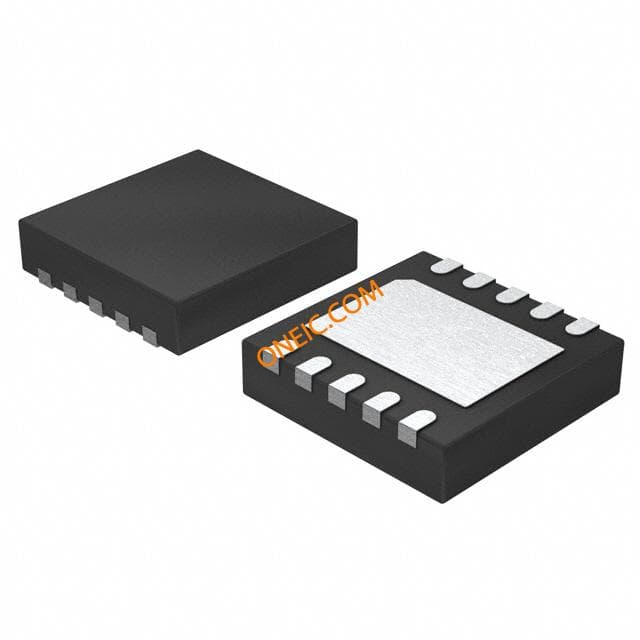

MCP73833T-GPI/MF
