MCP73832T-2ATI/OT
| Manufacturer | |
| Description | . MCP73832T-2ATI/OT - Charger IC Lithium Ion/Polymer SOT-23-5 from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3300 | Unit Pack | 3000 |
| Other Names | MCP73832T-2ATI/OTCT | Product Category | Battery Management |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85044055 | ||
Electrical
| Charge Time | No | Voltage Rating | 4.2 V |
| Number of Cells | :1 | Current - Output | 15 to 500 mA |
| Current - Supply | 510 uA | Voltage - Supply | 3.75 V to 6 V |
| Voltage - Start Up | 3.45 V | Charge Current - Max | :500mA |
| Current - Output (Typ) | 15mA | Voltage - Output (Max) | 4.232 V |
| Voltage - Supply (Min) | 3.38 V | Voltage - Output (Min/Fixed) | 4.168 V |
Mechanical
| Width | 1.8mm | Height | 1.3mm |
| Length | 3.1mm | Weight | 0.000033 |
| Packaging | Reel | Case Color | :SOT-23 |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :5 | Package / Case | 5SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 3.1 x 1.8 x 1.3mm | Number of Positions | 5 |
| Supplier Device Package | SOT-23-5 | ||
Product Info
| Type | Charge Controller | Series | MCP73832 |
| Function | Charge Management | Product Type | Charge Management |
| Battery Chemistry | Li-Ion|Li-Pol | ||
Environmental
| Temperature Display | No | Operating Temperature | -40 to 85 °C |
Documents & Media
Online Document
PDF Document
PDF Document
Online Document
PDF Document
Online Document
Online Document
Similar Parts
MCP7383XRD-PPM
microchip
MCP7383X Li-ion System Power Path Management Reference Design Power Management IC Development Tools LI-ION SYS PWR PATH MGT REF Design LI-ION SYS PWR PATH MGMT REF Design REFERENCE DESIGN PWR-PTH MCP7383 MCP7383X, LI-ION, PPM, REF DESIGN
$217.6000
Details

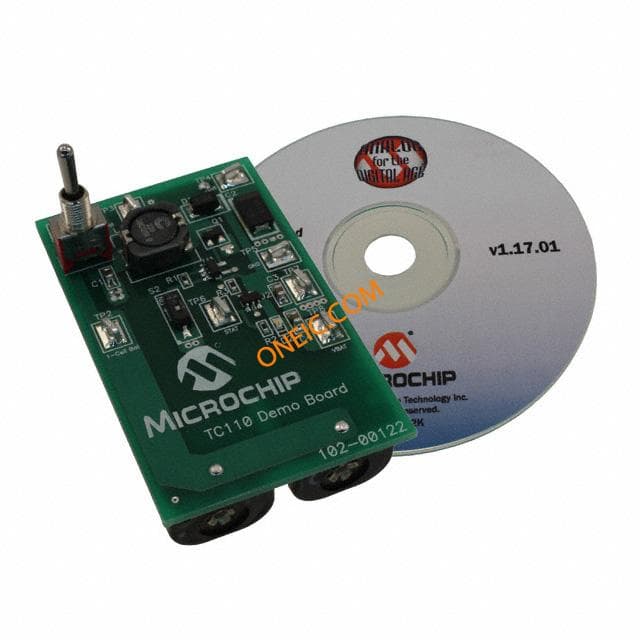

TC110DM
