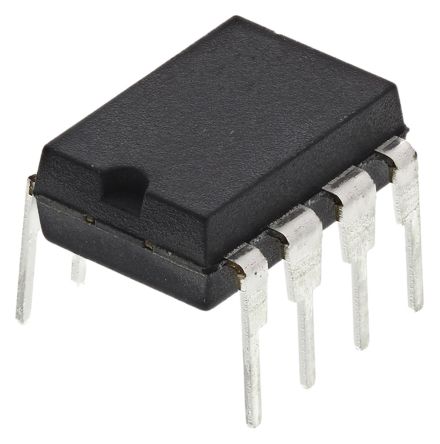

MCP4151-104E/P
| Manufacturer | |
| Description | Digital Potentiometer 256POS 100KOhm Single 8-Pin PDIP Tube Digital Potentiometer ICs Digital Pot 256 step SPI dual Ch Digital Pot, 256 steps, SPI, dual c IC POT DGTL SNGL 100K SPI 8DIP MCP4151-104E/P, Digital Potentiometer 100kΩ 257-Position Linear Serial-SPI 8-Pin PDIP IC, DGTL POT, SNGL, 100K, SPI, 8DIP 100kΩ 257位置 线性 数字电位计, 串行 - SPI接口, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 500 | Unit Pack | 60 |
| Product Category | Digital Potentiometer ICs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 60 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| Interface | Serial (SPI) | Resistance | 100 kOhm |
| Memory Type | Volatile | Power - Input | Single |
| Current - Output | 1 mA | Voltage - Supply | 2.5 V, 3.3 V, 5 V |
| Power Supply Type | Single | Resistance (Ohms) | 100k |
| Number of Elements | 1 | Resistance Tolerance | :± 20% |
| DC Resistance (DCR) (Max) | :75ohm | Voltage - Supply Span (Typ) | Not Required V |
| Resistance - Initial (Ri) (Min) | 100 kohm | ||
Mechanical
| Taper | Linear | Width | 0.28in |
| Height | 0.195in | Length | 0.4in |
| Weight | 0.0002 | Packaging | Tube |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Size / Dimension | 0.4 x 0.28 x 0.195in | Number of Positions | 256 |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Base Unit | :4151 | Wiper Memory | Volatile |
| Control Interface | Serial (SPI) | Number of Circuits | 1 |
| Number of Taps/Steps | 256 | Number of A/D Converters | Single |
| Number of Positions Loaded | :256 | Number of Positions (Convert To) | :256 |
Environmental
| Operating Temperature | -40 to 125 °C | Temperature Coefficient | 150 ppm/°C Typical |
