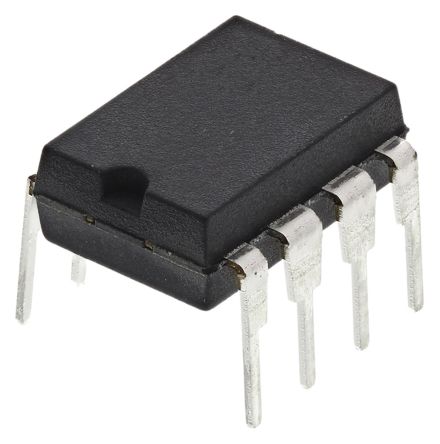

MCP41100-E/P
| Manufacturer | |
| Description | Digital Potentiometer 256POS 100KOhm Single 8-Pin PDIP Tube Digital Potentiometer ICs 256 Step SPI 100kOhm Digital Pot, 256 steps, SPI, 100kohm IC POT DGTL 100K 1CH SPI 8DIP MCP41100-E/P, Digital Potentiometer 100kΩ 256-Position Linear Serial-SPI 8-Pin PDIP DIGITAL POT, 100K, SPI, 8BIT, PDIP8 DIGITALPOT,256STEPS,SPI,100KOHMS,SINGLECHANNEL Integrated circuit: digital potentiometer; 100kΩ; SPI; 8bit; DIP8 Potentiometer IC 100 kOhm PDIP-8, MCP41100-E/P, Microchip 100kΩ 256位置 线性 数字电位计, 串行 - SPI接口, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 300 | Unit Pack | 60 |
| Product Category | Digital Potentiometer ICs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 60 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
Electrical
| Interface | Serial | Resistance | 100 kOhm |
| Memory Type | Volatile | INL/DNL (LSB) | ±1LSB |
| Current - Output | 340 uA | Voltage - Supply | 2.7 V to 5.5 V |
| Power Supply Type | Single | Resistance (Ohms) | 100k |
| Resolution (Bits) | 8bit | Number of Channels | :1 |
| Resistance Tolerance | :- | DC Resistance (DCR) (Max) | :125ohm |
| Resistance - Initial (Ri) (Min) | :100kohm | Common Mode Transient Immunity (Min) | Extended |
Mechanical
| Taper | Linear | Width | 6.35mm |
| Height | 3.3mm | Length | 9.27mm |
| Weight | 0.000833 | Packaging | Tube |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 9.27 | Package Quantity | PDIP |
| Size / Dimension | 9.27 x 6.35 x 3.3mm | Number of Positions | 256 |
| Shell Size - Insert | 3.3 | Contact Finish - Mating | Buffered |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Spg | 30 | Type | digital potentiometer |
| Function | 256 Step SPI 100k Ohm with SPI Interface | Base Unit | :41100 |
| Number of Units | 1 | Control Interface | Serial (SPI) |
| Number of Circuits | 1 | Number of Taps/Steps | 256 |
| Printed Circuit Board | 8 | Number of A/D Converters | Single |
| Number of Positions Loaded | :256 | Number of Positions (Convert To) | :256 |
Environmental
| Operating Temperature | -40 to 125 °C | Temperature Coefficient | 800 ppm/°C Typical |
