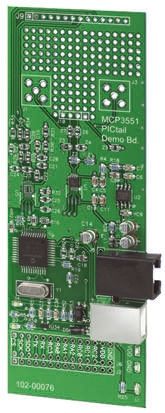

MCP3551DM-PCTL
| Manufacturer | |
| Description | MCP3551 DeltaSigma ADC Demo Board Data Conversion IC Development Tools MCP3551 Delta Sigma ADC Demo Brd MCP3551 Delta Sigma ADC Demo Board BOARD DEMO FOR MCP3551 MCP3551DM-PCTL, Development Kit MCP3551, PIC18F4550, ADC, DEMO BOARD MCP3551DM-PCTL Development kit: Microchip; PIC18F4550 Microchip 模拟开发套件 |
| Category |
Business
| MOQ | 4 | Product | Demonstration Boards |
| Unit Pack | 1 | Product Category | Data Conversion IC Development Tools |
| Standard Package | Boxed | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Interface | USB | Input Range | ±VREF |
| Data Interface | Serial | Number of Bits | 22 |
| Voltage - Supply | 5 V | Number of Elements | :PIC18F |
| Number of ADCs / DACs | 1 | Sampling Rate (Per Second) | 14 |
Mechanical
| Weight | 0.45 | ||
Product Info
| Type | Development Kit | Contents | Board, Software |
| Features | :On-board PIC18F4550 with USB for Dataview Communication, USB Interface for Connecting to A PC | Kit Type | :Data Acquisition |
| Base Unit | :3551 | Technology | Data Acquisition |
| Kit Contents | CD with Documentation, Dataview Software, Demo Board for MCP3551 Delta Sigma ADC, MCP3551 PICtail Demo Board | Manufacturer | :PIC18F4xxx |
| Card Standard | Development Kit | Communications | USB |
| Number of Units | 1 | Tool Type Feature | MCP3551 |
| Number of Circuits | PIC18F4550 | Utilized IC / Part | MCP3551 |
| Chipset Manufacturer | :Microchip | Application Specifics | :ADC |
| Programmable Features | Delta-Sigma ADC MCP3551 | MCU Supported Families | :MCP355X |
| For Use With/Related Products | MPLAB ICD2, PICkit 1 Flash Starter Kit, PICkit 2 | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
