PIC18F4550-I/PT
| Manufacturer | |
| Description | MCU 8-Bit PIC18 PIC RISC 32KB Flash 5V 44-Pin TQFP Tray 8-bit Microcontrollers - MCU 32kBF 2048RM FSUSB2 MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 44-Pin TQFP Tray 8 bit MCU TQFP44 IC MCU 8BIT 32KB FLASH 44TQFP PIC18F4550-I/PT, 8 bit Microcontroller PIC 48MHz 32kb Flash, 2048B RAM, USB I2C SPI 44-Pin TQFP MCU, 8BIT, PIC18, 48MHZ, 44TQFP IC, SM 8-BIT FLASH MCU, WAFFLE80 44-Pin,32KBFlash,2048RAM,FS-USB2.0 PIC microcontroller; EEPROM:256B; SRAM:2048B; 48MHz; TQFP44 Microcontroller 8 Bit TQFP-44, PIC18F4550-I/PT, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 32 kB、256 B ROM 闪存, 2048 B RAM, 1xUSB, 44针 TQFP封装 PIC18F 32K TQFP44 85°C |
| Category |
Business
| MOQ | 160 | Unit Pack | 160 |
| Other Names | PIC18F4550IPT | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Trays | Factory Pack Quantity | 160 |
| Standard Package Name | QFP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :18F4550 | Leadfree Defin | RoHS-conform |
| Approval Agency | No | ||
Electrical
| Input | 34 | Speed | 48 MHz |
| Timer | 1 x 8 bit, 3 x 16 bit | Memory | 32KBytes |
| RAM Size | 2 KB | Core Size | 8-Bit |
| Core Type | PIC | Frequency | :48Hz |
| Interface | I2C/SPI/USART/USB | Clock Rate | 48 MHz |
| Comparator | 2 | Resolution | 10bit |
| EEPROM Size | 256Byte | Memory Size | 2048 B |
| Memory Type | FLASH | Display Type | no |
| Number of I/O | 35 | Voltage Range | 2-5.5V |
| Number of Bits | 10 | Voltage Rating | 4.2 → 5.5 V |
| Watchdog Timer | 1 | Clock Frequency | :48MHz |
| Data Converters | A/D 13x10b | Frequency - Max | 40MHz |
| Number of DAC's | 2 | Oscillator Type | Internal |
| Interrupt Output | :20 | Voltage - Supply | 5 V |
| Digital I/O Lines | 35pins | Resolution (Bits) | 10Bit |
| Serial Interfaces | 1 | Number of Channels | 13 |
| Analog Input:Output | 2 | Non-Volatile Memory | 256Bytes |
| Program Memory Size | 32 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 13 | Voltage - Input (Min) | 2V |
| Number of 8-bit Timers | 1 | Voltage - Supply (Min) | 2...5.5V |
| Frequency (Center/Band) | 16 bit, 8 bit | Power Dissipation (Max) | 1000 mW |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 4.2 V ~ 5.5 V |
Mechanical
| Width | 10mm | Height | 1.05mm |
| Length | 10mm | Weight | 0.0018 |
| Packaging | Tray | Lead Style | Gull-wing |
| Lead Spacing | :0.8mm | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :44 |
| Package / Case | 44TQFP | Package Cooled | TQFP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 10 |
| Package Quantity | TQFP | Size / Dimension | 10 x 10 x 1.05mm |
| Number of Positions | 44 | Shell Size - Insert | 1 |
| Supplier Device Package | 44-TQFP (10x10) | Number of Cores/Bus Width | 8 Bit |
| Pulse Width Distortion (Max) | 1(10 bit) (CCP), 1(10 bit) (ECCP) | ||
Product Info
| SPI | 1 | Spg | 160 |
| USB | 1 | Type | PIC microcontroller |
| Series | PIC18 | Protocol | 1 |
| Matchcode | PIC18F4550-I/PT | CAN Number | 0 |
| Flash Size | :32KB | SPI Number | 1 |
| On-Chip RAM | 13-chx10-bit | Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART, USB |
| Core Processor | PIC | Built in Switch | 32kHz, 8MHz |
| Number of Units | 1 | Number of Timers | 4 |
| Controller Series | :PIC18 | Standard Leadtime | 14 weeks |
| RF Family/Standard | PIC18 | Utilized IC / Part | :PIC18F4550-I/PT |
| DigiKey Programmable | Yes | Printed Circuit Board | 44 |
| Microcontroller Features | :SPI, I²C, CCP, ECCP, SPP, EUSART, 2 x Comparators, 1 x 8-bit timer, 3 x 16-bit timer | Number of A/D Converters | :13 |
Environmental
| Temperature Range | :Industrial | Temperature - Test | -40°C |
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
AC164305
microchip
44L TQFP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 44L Sckt MOD for MPLAB PM3 MODULE SKT FOR PM3 44TQFP AC164305, Module, 8 bit, PIC, Socket Module for MPLAB PM3 44LTQFPSOCKETMODULEFORMPLABPM3 Socket Module for MPLAB PM3 (TQFP 44L) Microchip 8 位 MCU 处理器和微控制器开发套件
DV164131
microchip
PICKIT 3 InCircuit Debugger/Programmer Uses InCircuit Debugging Logic Incorporated In-Circuit Debuggers PICkit 3 Debug Exprs PICkit 3 Debug Express KIT STARTER PICKIT 3 DV164131, Development Kit, 16 bit, PIC DEBUG EXPRESS, PICKIT 3, PIC, DSPIC PICKit3Debugger/Programmer Programmer: microcontrollers; USB; ICSP, USB B mini PICkit 3 Debug Express PC hosted mode, DV164131, Microchip Microchip 16 位 MCU 微控制器开发套件
DV007004
microchip
Production Programmer/Development Kit PRODUCTION PROGRAMMER/DEVELOPMENT Programmers - Processor Based MPLAB PM3 Universal Device Programmer MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER Universal Device Programmer PROGRAMMER UNIVERSAL PM3 DV007004, Development Kit, 8 bit, PIC MPLAB PM3 Universal Device Programmer Socket Module Adapter MPLAB PM3 PROGRAMMER, PIC, DSPIC30F PRODUCTIONPROGRAMMER/DEVELOPMENTKITWITHBUILT-INICSP.PROGRAMSPICMICRO&DS PM3 Universal Device Programmer PC hosted mode / Stand-alone mode, DV007004, Microchip Microchip 处理器和微控制器开发套件
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
TC54VC4302ECB713
microchip
Volt Supervisor Detect 1.1V to 6V 3-Pin SOT-23A T/R 4.3V Voltage Detector 2% Tol. IC VOLT DETECTOR 4.3V SOT23A Voltage supervisor,4.3V,PP,Low,SOT23A Supervisory Circuits 4.2V 2% IC, SUPERVISOR, SMD 电压监控器, 4.21 至 4.39 V监控电压, 多种输出驱动, 3针 SOT-23A封装
AC164020
microchip
Development Tools, Module Socket For 18F2X31 28DIP Sockets & Adapters PRO MATE II Sckt MOD MODULE SKT PROMATEII 44TQFP
DM163025
microchip
Demonstration And Evaluation Board For The PIC18F4550 Family Of Flash Microcontrollers Development Boards & Kits - PIC / DSPIC USB DEMO BOARD PICDEM FS USB Demoboa PIC DEM FULL SPEED USB DEMO BRD PICDEM, PIC18F4550, USB, DEMO BOARD
%2CTO-226_straightlead.jpg&w=3840&q=75)
TC54VN4302EZB
microchip
Volt Supervisor Detect 1.1V to 6V 3-Pin TO-92 Bag 4.3V Voltage Detector 2% Tol. IC VOLT DET N-CH OD 4.3V TO92-3 TC54VN4302EZB, Processor Supervisor 1.1 to 6V 3-Pin TO-92 Supervisory Circuits 4.3V, 2% VOLT DETECTOR, 54VN4302, TO-92-3 TC54VN4302EZBI.C. 处理器监控器, 1.1 至 6 V监控电压, 3针 TO-92封装 DETECTOR 4,3V 1µA 2% SOT89 SMD
DM163022-1
microchip
Picdem 2 Plus Board Demonstrates The Capabilities Of Microchips 8-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PICDEM 2 Plus BOARD DEMO PIC16F87X PIC18FXX2 PICDEM 2 Plus w/ ICD interface PIC16F, PICDEM 2 PLUS, DEMO BOARD Development kit: Microchip; PIC16; Connector type: RJ12 PICDEM 2 Plus PC hosted mode PIC16F1937-I/P 9 V, DM163022-1, Microchip Microchip 8 位 MCU 开发套件
GPIODM-KPLCD
microchip
GPIO Expander Keypad And LCD Demo Board Development Boards & Kits - PIC / DSPIC GPIO EXPNDER DEMO BD BOARD DEMO LCD GPIO EXP KEYPAD GPIODM-KPLCD, Development Kit, Serial MCP23017, GPIO EXPANDER, DEMO BOARD DEMOBOARD,GPIODM-KPLCD Microchip GPIO Expander Keypad & LCD HMI接口 演示板

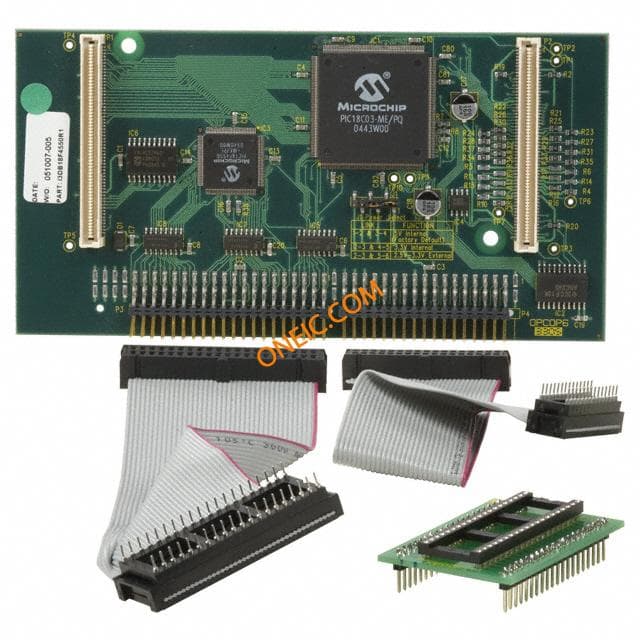

I3-DB18F4550
