点击放大查看

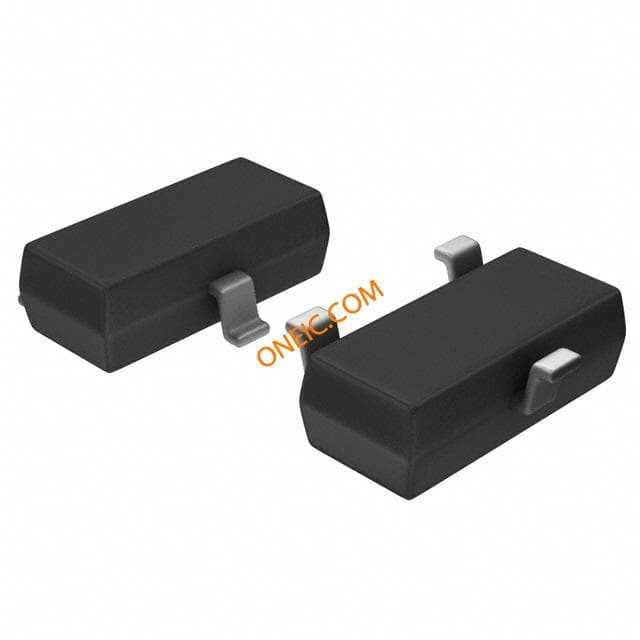

MCP1541T-I/TT
| Manufacturer | |
| Description | V-Ref Precision 4.096V 8mA 3-Pin SOT-23 T/R VOLTAGE REF.HIGH PRECISION IC VREF SRS PREC 4.096V SOT23-3 MCP1541T-I/TT, Voltage Reference 4.055 to 4.137V, 1% 20mA 7V Max. 3-Pin SOT-23 Voltage References 496V IC, SM, PRECISION, VOLT REF, 4.096V IC VREF SERIES 4.096V SOT23-3 VoltageReference,4.096V,SOT-23 Voltage reference source; 4.096V; SOT23 Voltage reference, 4.096 V, SOT-23-3, MCP1541T-I/TT, Microchip Microchip Fixed 4.096V 精密电压参考, ±1.0 %精确度, 20mA, 7 V输入, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Product | Voltage References |
| Unit Pack | 3000 | Other Names | MCP1541T-I/TTCT |
| Product Category | Voltage References | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Accuracy | 41mV | Tolerance | ±1% |
| Reference Type | Precision | Voltage Rating | 4.096 V |
| Line Regulation | 350 uV/V | Load Regulation | 1.3 mV/mA |
| Current - Output | 8(Typ) mA | Voltage - Supply | :1% |
| Voltage Reference | :4.096V | Number of Channels | 1 |
| Resistor-Ratio-Drift | 50ppm/°C | Contact Voltage (Max) | 5.5 V |
| Noise - 0.1Hz to 10Hz | 145μVp-p | Voltage - Input (Min) | 4.3V |
| Voltage - Output (Max) | 4.137 V | Power Dissipation (Max) | :140mW |
| Regulator Current (Max) | 100 uA | Current - Quiescent (Iq) | 100µA |
| Voltage Regulation - Line | 107μV/V | Current - Output / Channel | 8 mA |
| Accuracy - Highest (Lowest) | 1 % | Voltage - Output (Min/Fixed) | 4.055 V |
| Common Mode Transient Immunity (Min) | Industrial | Voltage - Continuous Operating (Max) (MCOV) | :5.5V |
Mechanical
| Width | 1.3mm | Height | 0.95mm |
| Length | 2.9mm | Weight | 0.000033 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Reel Capacity | :3000 | Mounting Style | SMD/SMT |
| Number of Pins | :3 | Package / Case | 3SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SOT-23 | Size / Dimension | 2.9 x 1.3 x 0.95mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Spg | 3000 | Type | VoltageReference |
| Topology | Series | Base Unit | :1541 |
| Matchcode | MCP1541T-I/TT | Diode Type | :Voltage Reference |
| Channel Type | N-Channel | Number of Units | 1 |
| Standard Leadtime | 14 weeks | Utilized IC / Part | :MCP1541T-I/TT |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 85 °C |
| Temperature Coefficient | 50 ppm/°C | Usable Temperature Range | -40to+85°C |
| Thermal Resistance @ Natural | 336°C/W | Temperature Coefficient (Typ) | 50 PPM / C |
| Operating Temperature - Junction | :85°C | ||
