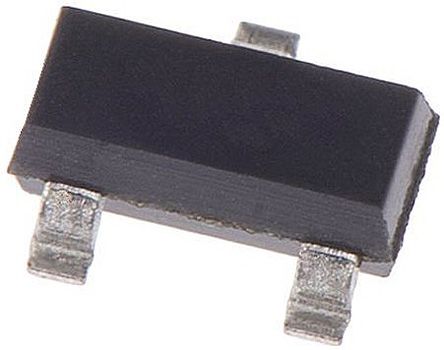

MCP131T-300E/TT
| Manufacturer | |
| Description | Volt Supervisor Supply 2.93V 3-Pin SOT-23B T/R 1uA Supervisor Open Drain Active Low IC SUPERVISOR 2.93V LOW SOT-23B Reset supervisor open-drain active-low Supervisory Circuits Open Drain Low IC, SUPERVISOR, ACTIVE LOW, 3SOT23 Resetsupervisoropen-drainactive-low 电压监控器, 2.857 至 3.003 V监控电压, 多种输出驱动, 3针 SOT-23B封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP131T-300E/TTCT | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423990 | ||
Electrical
| Reset | Active Low | Output | Open Drain or Open Collector |
| Delay Time | :120ms | Reset Time | 0.13ms |
| Voltage Rating | 1 V | Watchdog Timer | No |
| Current - Output | :1µA | Current - Supply | 90 uA |
| Voltage - Supply | 5.5 V | Voltage - Clamping | 2.974 V |
| Voltage - Threshold | 2.93V | Voltage - Input (Min) | 2.866 V |
| Voltage - Supply (Min) | 5.5 V | Number of Voltages Monitored | 1 |
| Voltage - Protection Level (VP) (2416) | 3.003V | ||
Mechanical
| Width | 1.4mm | Height | 1.02mm |
| Length | 3.04mm | Weight | 0.000033 |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :3 |
| Package / Case | 3SOT-23B | Package Cooled | SOT-23B |
| Material Finish | :MSL 1 - Unlimited | Size / Dimension | 3.04 x 1.4 x 1.02mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Type | Supply Voltage Supervisory | Reset Timeout | 80 ms Minimum |
| Number of Supervisors | 1 | Number of Logic Elements/Cells | :1 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
