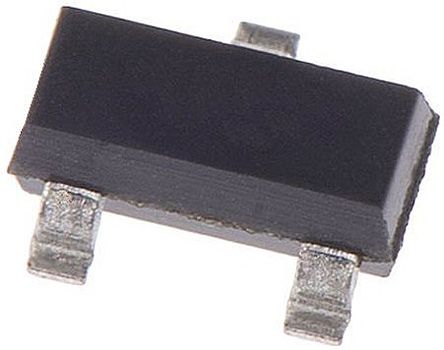

MCP112T-240E/TT
| Manufacturer | |
| Description | Volt Supervisor Detect 2.32V 3-Pin SOT-23 T/R Supervisory Circuits 1uA Sup P-P Act Low DETECTOR 2,32V 1,75µA SOT23-3L IC VOLT DET 2.32V LOW SOT-23B Voltage supervisor,2.40V,PP,Low,SOT23 IC, SUPERVISOR, 2.32V, LOW, SOT-23B 电压监控器, 2.262 至 2.378 V监控电压, 低电平有效, 3针 SOT-23B封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP112T-240E/TTCT | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Reset | Not Resettable | Output | Push-Pull, Totem Pole |
| Tolerance | 2% | Delay Time | :90µs |
| Reset Time | 130ms | Voltage Rating | 1 V |
| Watchdog Timer | No | Current - Output | :1µA |
| Current - Supply | 1.75 uA | Voltage - Supply | 2.32 V |
| Voltage - Clamping | 2.285 V | Voltage - Threshold | 2.32V |
| Voltage - Input (Min) | 2.285 V | Voltage - Supply (Min) | 5.5 V |
| Voltage - Supply, Digital | Voltage Detector | Idle Current, Typ @ 25degC | 1.75 uA |
| Power - Minimum Receivable | Yes | Number of Voltages Monitored | 1 |
| Voltage - Protection Level (VP) (2416) | 2.378V | ||
Mechanical
| Width | 1.4mm | Height | 1.02mm |
| Length | 3.04mm | Weight | 0.0002 |
| Packaging | Reel | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :3 |
| Package / Case | 3SOT-23 | Package Cooled | SOT-23B |
| Material Finish | :MSL 1 - Unlimited | Size / Dimension | 3.04 x 1.4 x 1.02mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Mode | POS | Type | Voltage Detector |
| Base Unit | :112 | Matchcode | MCP112T-240E/TT |
| Programmable | Yes | Standard Leadtime | 14 weeks |
| Number of Supervisors | 1 | Number of Logic Elements/Cells | :1 |
Environmental
| Reset Temperature | 2.33V | Operating Temperature | -40 to 125 °C |
| Operating Temperature - Junction | 125°C | ||
