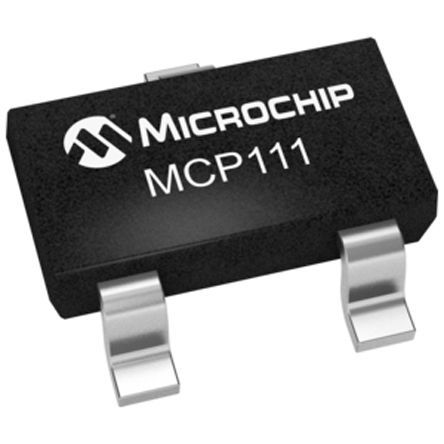

MCP111T-290E/TT
| Manufacturer | |
| Description | Volt Supervisor Detect 2.9V 3-Pin SOT-23 T/R IC SUPERVISOR 2.90V LOW SOT23B-3 Reset supervisor open-drain active-low Supervisory Circuits Open Drain IC, SUPERVISOR, 1UA, SMD, SOT-23-3 VoltageDetector,2.90V,Open-DrainOutput,SOT-23 电压监控器, 2.9 V监控电压, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP111T-290E/TTDKR | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423990 | Automotive | NO0 |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Reset | OPEN DRAIN | Output | Open Drain or Open Collector |
| Tolerance | 2% | Voltage Rating | 1 V |
| Watchdog Timer | No | Current - Output | :1µA |
| Current - Supply | 1.75 uA | Voltage - Supply | 5.5V |
| Voltage - Clamping | 2.944 V | Voltage - Output 4 | 0.4V |
| Voltage - Threshold | 2.9V | Voltage - Input (Min) | 2.857 V |
| Rise / Fall Time (Typ) | 5μs | Voltage - Supply (Min) | 5.5 V |
| Number of Voltages Monitored | 1 | ||
Mechanical
| Width | 1.3mm | Height | 0.95mm |
| Length | 2.9mm | Weight | 0.002 |
| Packaging | REEL | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :3 | Package / Case | 3SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 2.9 x 1.3 x 0.95mm | Number of Positions | 3 |
| Supplier Device Package | SOT-23-3 | ||
Product Info
| Mode | POS | Type | Voltage Detector |
| Base Unit | :1111 | Matchcode | MCP111T-290E/TT |
| Standard Leadtime | 17 weeks | Number of Supervisors | 1 |
| Number of Logic Elements/Cells | :1 | ||
Environmental
| Reset Temperature | 2.90V | Operating Temperature | -40 to 125 °C |
| Usable Temperature Range | -40to+125°C | Operating Temperature - Junction | 125°C |
