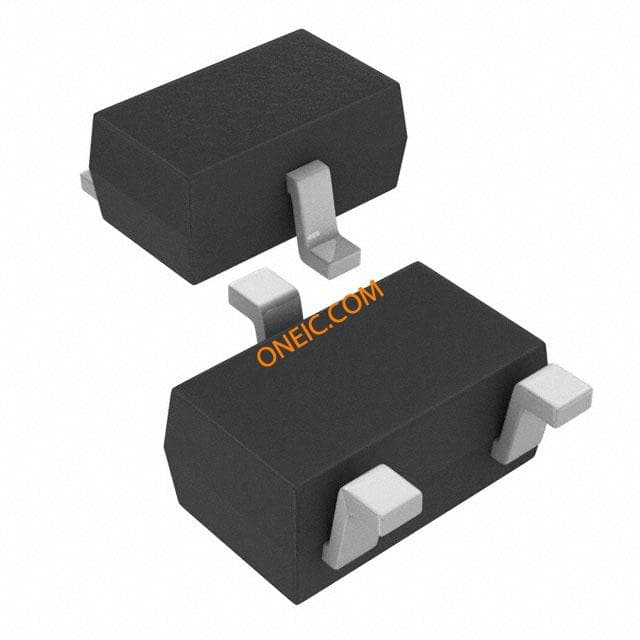

MCP111T-290E/LB
| Manufacturer | |
| Description | Volt Supervisor Detect 2.9V 3-Pin SC-70 T/R 1uA Supervisor Open-Drain Active Low IC SUPERVISOR 2.90V LOW SC70-3 Reset supervisor open-drain active-low Supervisory Circuits Open Drain IC, SUPERVISOR, ACTIVE LOW, 3SC70 Resetsupervisoropen-drainactive-low 电压监控器, 2.828 至 2.973 V监控电压, 多种输出驱动, 3针 SC-70封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP111T-290E/LBDKR | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | ||
Electrical
| Reset | Active Low | Output | Open Drain or Open Collector |
| Reset Time | 0.13ms | Voltage Rating | 1 V |
| Watchdog Timer | No | Current - Output | :1µA |
| Current - Supply | 1.75 uA | Voltage - Supply | 5.5 V |
| Voltage - Clamping | 2.944 V | Voltage - Threshold | 2.9V |
| Voltage - Input (Min) | 2.857 V | Voltage - Supply (Min) | 5.5 V |
| Number of Voltages Monitored | 1 | Voltage - Protection Level (VP) (2416) | 2.973V |
Mechanical
| Width | 1.35mm | Height | 1mm |
| Length | 2.25mm | Weight | 0.000033 |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :3 |
| Package / Case | 3SC-70 | Package Cooled | SC-70 |
| Material Finish | :MSL 1 - Unlimited | Size / Dimension | 2.25 x 1.35 x 1mm |
| Number of Positions | 3 | Supplier Device Package | SC-70-3 |
Product Info
| Type | Voltage Detector | Number of Supervisors | 1 |
| Number of Logic Elements/Cells | :1 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
