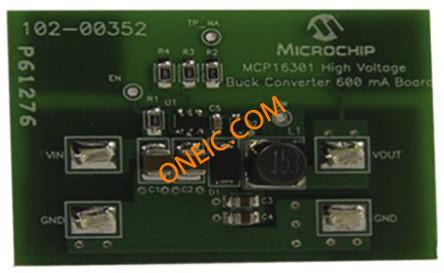

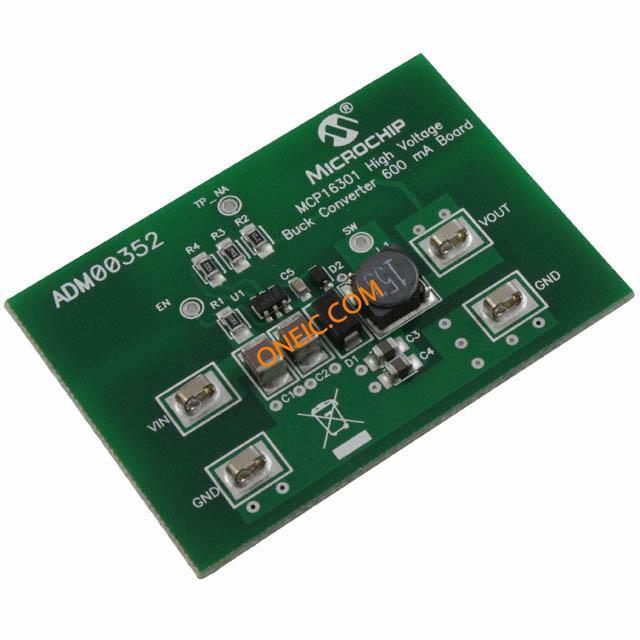

ADM00352
| Manufacturer | |
| Description | Demonstration Board Supporting The Development Of MCP16301 High Input Voltage Power Management IC Development Tools MCP16301 600mA Demo Board BOARD DEMO FOR MCP16301 MCP16301 600 mA D2PAK Demo Board MCP16301, BUCK CONVERTER, DEMO BOARD MCP16301600mAD2PAKDemoBoard |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Management Development Tools | Standard Package | Boxed |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423990 | ||
Electrical
| Voltage Rating | 3.3 V | Current - Output | 600 mA |
| Number of Elements | :- | Regulator Topology | Buck |
| Frequency - Switching | 500kHz | Voltage - Input (Min) | 3.3V |
Mechanical
| Weight | 0.3 | Board Thickness | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board |
| Features | :600mA Output Current, 4V to 30V Input Voltage Range with 40V Transients, EN Input Test Point | Kit Type | :Power Management - Voltage Regulator |
| Technology | Power Management | Kit Contents | MCP16301 High Input Voltage 600 mA Output Demo Board |
| Main Purpose | DC/DC, Step Down | Card Standard | Development Kit |
| Outputs and Type | 1, Non-Isolated | Tool Type Feature | MCP16301 |
| Utilized IC / Part | MCP16301 | Chipset Manufacturer | :Microchip |
| Application Specifics | :Step Down DC / DC Converter | ||
Environmental
| Operating Temperature | + 85 C | ||
