MCP16301T-I/CHY
| Manufacturer | |
| Description | . MCP16301T-I/CHY - Buck Switching Regulator IC Positive Adjustable 2V 1 Output 600mA SOT-23-6 from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP16301T-I/CHYCT | Standard Package | Tape & Reel |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Accuracy | 2% | PWM Type | Current Mode |
| Frequency | 500000Hz | Efficiency | 96 % |
| Output Type | Adjustable | Converter Type | Step Down |
| Voltage Rating | 2 to 15 V | Line Regulation | 0.01(Typ) %/V |
| Current - Output | 0.6 A | Current - Supply | 2 mA |
| Duty Cycle (Max) | 95 % | Voltage - Supply | 4 to 30 V |
| Number of Outputs | 1 | Current - Output 1 | 0.6A |
| Regulator Topology | Step Down | Switching Regulator | Yes |
| Current Rating (Max) | 2000µA | Frequency - Switching | 500(Typ) kHz |
| Synchronous Rectifier | No | Voltage - Input (Min) | 30V |
| DC Voltage - Input (Min) | 4 V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Continuous Operating (Max) (MCOV) | :30V | ||
Mechanical
| Width | 1.8(Max) | Weight | 0.0002 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :6 | Package / Case | 6SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.1(Max) | Package Quantity | SOT-23 |
| Number of Positions | 6 | Shell Size - Insert | 1.3(Max) |
| Supplier Device Package | SOT-23-6 | ||
Product Info
| Spg | 200 | Type | Step Down |
| Matchcode | MCP16301T-I/CHY | Number of Units | 1 |
| Standard Leadtime | 14 weeks | Utilized IC / Part | step down |
| Printed Circuit Board | 6 | ||
Environmental
| Operating Temperature | -40 to 85 °C | Maximum Temperature Limit | 85°C |
Documents & Media
Online Document
Online Document
PDF Document
Online Document
Online Document
Online Document
Online Document
Similar Parts
ADM00352
microchip
Demonstration Board Supporting The Development Of MCP16301 High Input Voltage Power Management IC Development Tools MCP16301 600mA Demo Board BOARD DEMO FOR MCP16301 MCP16301 600 mA D2PAK Demo Board MCP16301, BUCK CONVERTER, DEMO BOARD MCP16301600mAD2PAKDemoBoard
$126.8400
Details
499-P44-20
WELLS-CTI
$135.9000
Details
CR 88
EDSYN
SOLDER PASTE, 96.5/3.5, 221 DEG, 10G
$274.9383
Details
D00830
Avnet, Inc.
TWEEZERS TYPE 2A SA ESD 120MM
$224.4060
Details
ADM00399
Microchip Technology

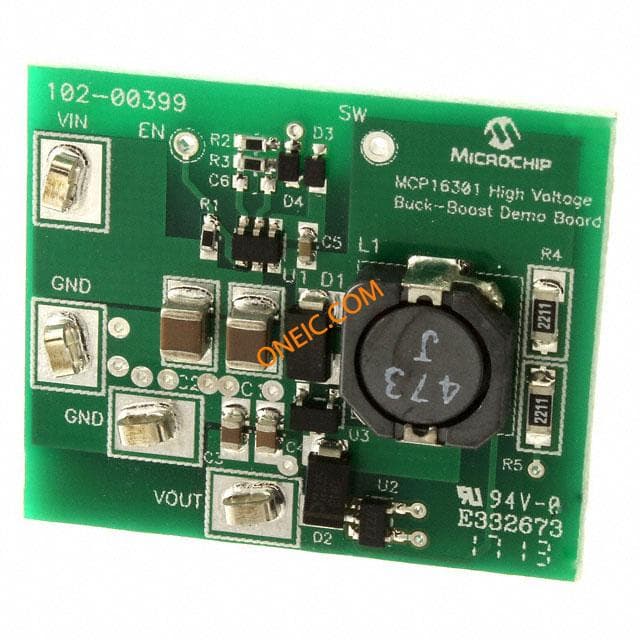

BOARD DEMO BUCK BOOST MCP16301 Microchip MCP16301 降压转换器 演示板
$108.7320
Details
ADM00433
Microchip Technology

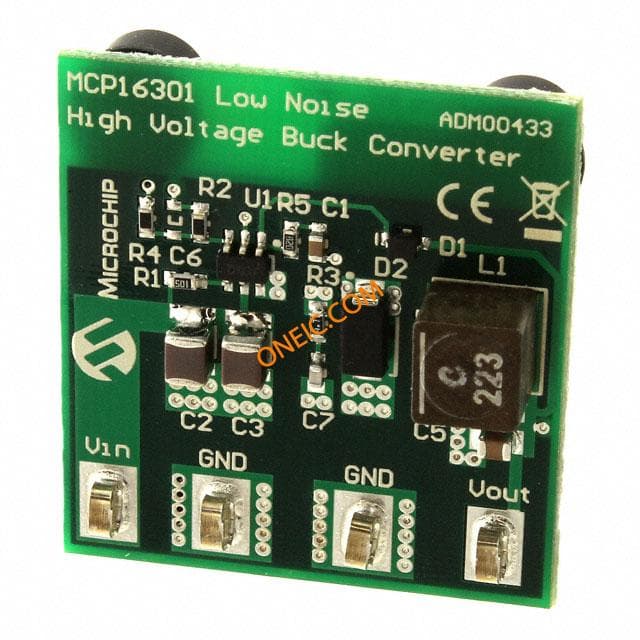

BOARD EVAL MCP16301 5V 600MA LN Microchip MCP16301 直流-直流转换器 评估测试板
