点击放大查看

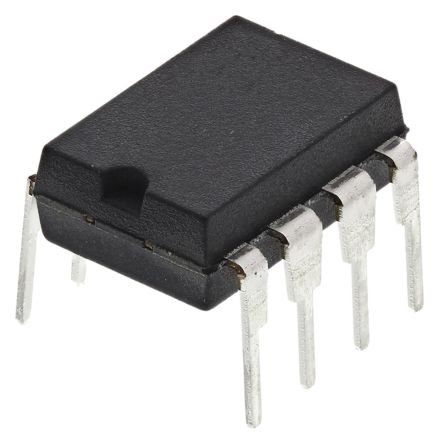

24FC512-I/P
| Manufacturer | |
| Description | EEPROM Serial-I2C 512K-bit 64K x 8 1.8V/2.5V/3.3V/5V 8-Pin PDIP Tube 512K, 64K X 8, 2.5V HI-SPEED SER EE IC EEPROM 512KBIT 1MHZ 8DIP 24FC512-I/P, Serial EEPROM Memory 512kbit, Serial-I2C, 900ns 1.7 to 5.5V, 8-Pin PDIP IC, EEPROM SERIAL 512K 512K,64KX8,2.5VHI-SPEEDSEREE,IND,PDIP-8 Memory; EEPROM; I2C; 64kx8bit; 1.7÷5.5V; 1MHz; DIP8 EEPROM I²C DIL-8, 24FC512-I/P, Microchip Microchip 串行 EEPROM 存储器, 512kbit, 串行 - I2C接口, 900ns, 1.7 → 5.5 V, 8针 PDIP封装 EEPROM 64kx8 - 2.5V Hi Spd E²ser.I²C 64Kx8 DIP8 1.7V |
| Category |
Business
| MOQ | 270 | Unit Pack | 60 |
| Other Names | 24FC512IP | Standard Package | Rail / Tube |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | :24FC512 | Rad Hardened | No |
| ESD Protection | Yes | ||
Electrical
| Speed | 400kHz, 1MHz | Memory | :64K x 8bit |
| Frequency | 0.4 MHz | Interface | Serial-I2C |
| Access Time | 900 ns | Memory Size | 512K (64K x 8) |
| Memory Type | EEPROM | Voltage - VCCB | :5V |
| Voltage Rating | 1.8|2.5|3.3|5 V | Clock Frequency | :1MHz |
| Data Converters | 200(Min) Year | Frequency - Max | 0.4 MHz |
| Current - Output | 5 mA | Voltage - Supply | 1.7 V ~ 5.5 V |
| Current Rating (Max) | 5 | Voltage - Supply (Min) | 5.5 V |
| Write Cycle Time - Word, Page | Yes | Voltage - Gate Trigger (Vgt) (Max) | 1.7 to 5.5 V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 6.35mm | Height | 3.3mm |
| Length | 9.4mm | Weight | 0.05 |
| Packaging | Tube | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Number of Pins | :8 | Package / Case | 8PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Length - Overall | 9.4 | Package Quantity | PDIP |
| Size / Dimension | 9.4 x 6.35 x 3.3mm | Number of Positions | 8 |
| Shell Size - Insert | 3.3 | Supplier Device Package | 8-PDIP |
Product Info
| Spg | 60 | Type | memory |
| DELETED | Compliant | Density | 512 Kb |
| Manufacturer | 64Kx8 | Programmable | Yes |
| Memory Format | EEPROMs - Serial | Number of Units | 1 |
| Memory Organization | 64kx8bit | Printed Circuit Board | 8 |
Environmental
| Mating Cycles | 1000000 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
