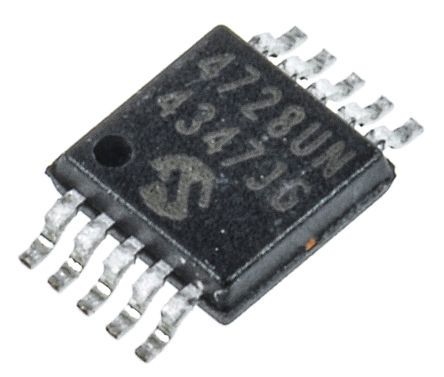

MCP4728-E/UN
| Manufacturer | |
| Description | . MCP4728-E/UN - 12 Bit Digital to Analog Converter 4 10-MSOP from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 100 |
| Other Names | MCP4728EUN | Product Category | Digital to Analog Converters - DAC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Accuracy | 0.75LSB | Channels | 4 |
| Interface | Serial (2-Wire, I2C) | Full Scale | ±3 %FSR |
| Input Type | :Serial | Resolution | 12 Bit |
| Output Type | Voltage | INL/DNL (LSB) | ±13 LSB |
| Power - Input | Single | Settling Time | 6(Typ) us |
| Converter Type | General Purpose | Data Interface | I²C, Serial |
| Number of Bits | 12 | Number of DAC's | 4 |
| Current - Output | :800µA | Voltage - Supply | 5.5 V |
| Distortion Rating | +/- 13 LSB | Number of Outputs | 4 |
| Power Supply Type | Single | Resolution (Bits) | :12bit |
| Voltage Reference | EXT | Number of Channels | 4 |
| Voltage - Input (Min) | 2.7V | Voltage Supply Source | Single Supply |
| Number of Outputs and Type | 4 Voltage, Unipolar | Sampling Rate (Per Second) | 3.4M |
| Voltage - Supply Span (Typ) | Not Required V | ||
Mechanical
| Width | 3 | Weight | 0.0001 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :10 | Package / Case | 10MSOP |
| Package Cooled | MSOP | Material Finish | :MSL 1 - Unlimited |
| Top Termination | 125°C | Length - Overall | 3 |
| Package Quantity | MSOP | Number of Positions | 10 |
| Shell Size - Insert | 0.85 | Minimum Working Height | -40°C |
| Supplier Device Package | 10-MSOP | ||
Product Info
| Spg | 200 | Type | D/A converter |
| Matchcode | MCP4728-E/UN | Architecture | Resistor-String |
| Number of Units | 1 | Standard Leadtime | 19 weeks |
| Printed Circuit Board | 10 | Number of A/D Converters | 4 |
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | 125C |
