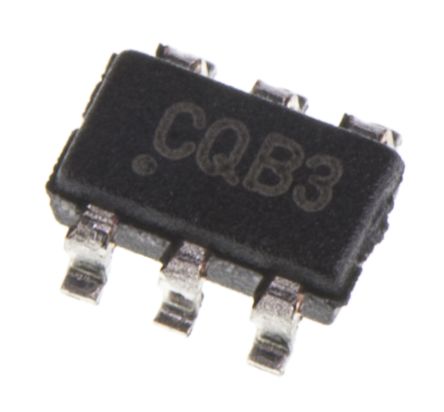

MCP3425A0T-E/CH
| Manufacturer | |
| Description | . MCP3425A0T-E/CH - 16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta SOT-23-6 from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP3425A0T-E/CHCT | Product Category | Analog to Digital Converters - ADC |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Channels | 1 | Interface | I2C |
| Linearity | :10% | Input Type | Differential |
| Resolution | 16 bit | Input Signal | Single-Ended|Differential |
| INL/DNL (LSB) | 10ppm of FSR(Typ) | Power - Input | Single |
| Converter Type | Temperature Measurement | Data Interface | I²C, Serial |
| Input Polarity | Bipolar | Number of Bits | 16 |
| Voltage Rating | ±2.048V | Data Rate (Max) | 0.015 KSPs |
| Voltage - Rated | �2.048 | Current - Output | :155µA |
| Number of Inputs | :1 | Voltage - Supply | 2.7 V to 5.5 V |
| Resolution (Bits) | :16bit | Voltage Reference | 2.048 V |
| Number of Channels | 1 | Number of Elements | 1 |
| Sampling Frequency | 15sps | Current Rating (Max) | 155µA |
| Number of ADCs / DACs | 1 | Voltage - Input (Min) | 5.5V |
| Voltage Supply Source | Single | Voltage Supply - Internal | :2.7V to 5.5V |
| Sampling Rate (Per Second) | 100ksps | Differential - Input:Output | Yes |
| Voltage - Supply Span (Typ) | Not Required V | Voltage - DC Spark Over (Nom) | 2.7V |
| S/N Ratio, ADCs / DACs (db) Typ | Yes | ||
Mechanical
| Width | 1.8mm | Height | 1.3mm |
| Length | 3.1mm | Weight | 0 |
| Packaging | Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :6 |
| Package / Case | SOT-23 | Package Cooled | SOT-23 |
| Material Finish | :MSL 1 - Unlimited | Top Termination | 125°C |
| Length - Overall | 3.1(Max) | Package Quantity | SOT-23 |
| Size / Dimension | 3.1 x 1.8 x 1.3mm | Number of Positions | 6 |
| Shell Size - Insert | 1.3(Max) | Supplier Device Package | SOT-23-6 |
Product Info
| Spg | 25 | Type | A/D converter |
| Features | delta-sigma | Base Unit | :3425 |
| Matchcode | MCP3425A0T-E/CH | Architecture | Sigma-Delta |
| Number of Units | 1 | Standard Leadtime | 23 weeks |
| Printed Circuit Board | 6 | Number of A/D Converters | 1 |
| Number of Inputs and Type | 1 Single-Ended, Bipolar; 1 Differential, Bipolar | ||
Environmental
| Operating Temperature | + 125 C | ||
Documents & Media
Similar Parts
MCP3425A0T-E/CH
Microchip Technology Inc.
. MCP3425A0T-E/CH - 16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta SOT-23-6 from Microchip Technology. from now!
$6.9352
Details

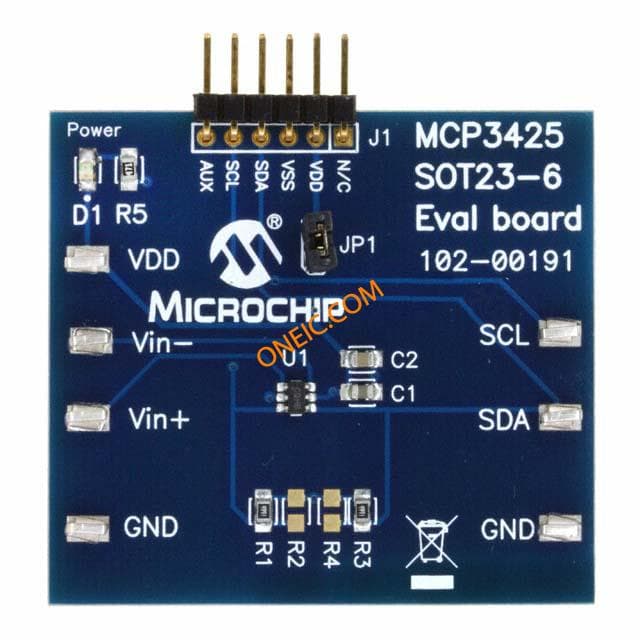

MCP3425EV
