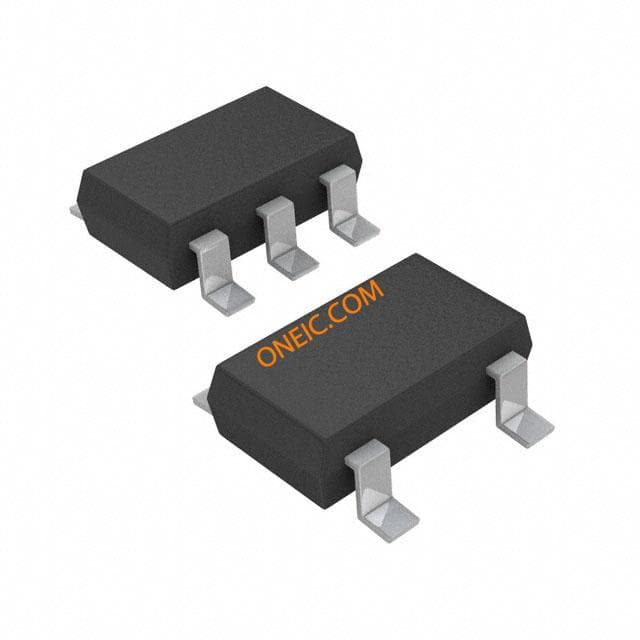

MCP1603T-330I/OS
| Manufacturer | |
| Description | . MCP1603T-330I/OS - Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA SOT-23-5 Thin, TSOT-23-5 from Microchip Technology. from now! |
| Category |
Business
| MOQ | 3000 | Product | Voltage Regulators |
| Unit Pack | 3000 | Other Names | MCP1603T-330I/OSCT |
| Product Category | Voltage Regulators - Switching Regulators | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Accuracy | :2.5% | PWM Type | Current Mode |
| Frequency | 2000000Hz | Efficiency | 90(Typ) % |
| Output Type | Fixed | Regulator Type | Buck Controller |
| Voltage Rating | 3.3 V | Line Regulation | 0.3(Typ) %/V |
| Load Regulation | 0.35(Typ) % | Oscillator Type | 2MHz |
| Current - Output | 0.5(Min) A | Voltage - Supply | 2.7 to 5.5 V |
| Number of Outputs | 1 | Current - Output 1 | 0.5A |
| Regulator Topology | Step Down | Switching Regulator | Yes |
| Frequency - Switching | 2800 kHz | Synchronous Rectifier | Yes |
| Voltage - Input (Min) | 5.5V | Voltage - Supply (Min) | :3% |
| Input Logic Level - Low | 0.1nA | DC Voltage - Input (Min) | 2.7 V |
| Common Mode Transient Immunity (Min) | Industrial | Voltage - Continuous Operating (Max) (MCOV) | :5.5V |
Mechanical
| Width | 1.6mm | Height | 0.9mm |
| Length | 2.9mm | Weight | 0.000033 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 5TSOT | Package Cooled | TSOT |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 2.9 |
| Package Quantity | TSOT | Size / Dimension | 2.9 x 1.6 x 0.9mm |
| Number of Positions | 5 | Shell Size - Insert | 0.9 |
| Supplier Device Package | TSOT-23-5 | ||
Product Info
| Type | Step Down | Base Unit | :1603 |
| Matchcode | MCP1603T-330I/OS | Standard Leadtime | 14 weeks |
| Printed Circuit Board | 5 | ||
Environmental
| Operating Temperature | -40 to 85 °C | Usable Temperature Range | -40to+85°C |
| Maximum Temperature Limit | 125°C | ||
Documents & Media
Similar Parts
MCP1603EV
microchip
MCP1603 Buck Converter Evaluation Board Power Management IC Development Tools MCP1603 Buck Converter Eval Brd MCP1603 Buck Converter Eval Board BOARD EVAL BUCK CONV MCP1603 Development Kit, Power Management With Evaluation Board for MCP1603 MCP1603, BUCK CONVERTER, EVAL BOARD EVALBOARD,MCP1603EV Microchip MCP1603 降压转换器 评估测试板
744031004
Wurth Electronics
Fixed Inductors 1200mA, 4.7uH DCR Max=0.105,+/-30% Ind Power Choke Shielded Wirewound 4.7uH 30% 100KHz Ferrite 1.2A T/R INDUCTOR POWER 4.7UH 1.2A SMD Inductor SMD WE-TPC 3816 4.7uH 0.9A Fixed Inductors WE-TPC Inductor 4.7uH 100kHz 1.2A CHOKE, SMD 4.7UH, 1.2A Wurth WE-TPC 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 4.7 μH ±30%, 1.2A Idc
MCP1603T-330I/OS
Microchip Technology Inc.
. MCP1603T-330I/OS - Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA SOT-23-5 Thin, TSOT-23-5 from Microchip Technology. from now!
MCP1603RD-TNY
microchip
Tiny Reference Design Board Power Management IC Development Tools MCP1603 TinyBuck Reg Ref Design Board MCP1603 Tiny Buck Regulator Referenc REFERENCE DESIGN FOR MCP1603 MCP1603, BUCK REGULATOR, TINY, REF DESIGN BOARD

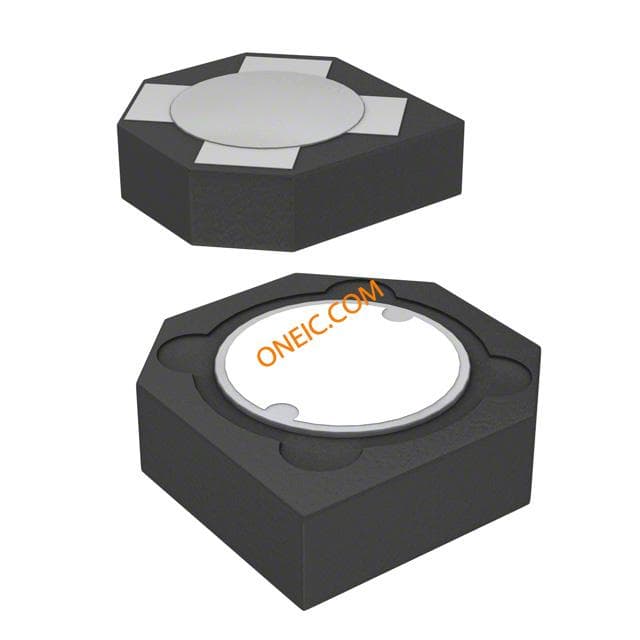

744030004
