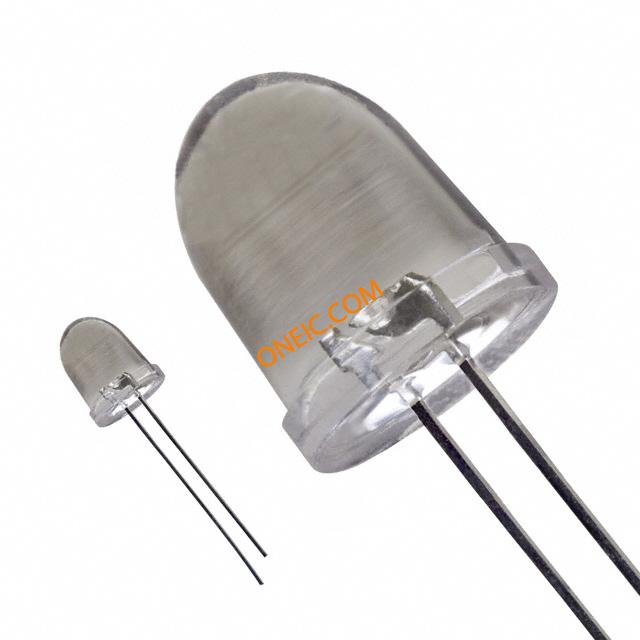

SSL-LX100133XYC/B
| Manufacturer | |
| Description | Standard LEDs - Through Hole LED PMI LED 10MM MEGA-BRITE YELLOW CLEAR LED Uni-Color Yellow 595nm 2-Pin T-10 LED, YELLOW, 10MM, 2500MCD, 595NM Bulb |
| Category |
Business
| Product Category | Standard LEDs - Through Hole | Standard Package | 1,000 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85414010 | ||
Electrical
| Lamp Type | :T-3 (10mm) | Optic Size | 10 mm |
| Viewing Angle | 6 deg | Current - Output | 20mA |
| Voltage - Supply | 2.1V | Wavelength - Peak | 595nm |
| LED Forward Current | 30 mA | LED Forward Voltage | :2.1V |
| Millicandela Rating | 2500mcd | Wavelength - Dominant | 595 nm |
| Current - DC Forward (If) (Max) | :20mA | ||
Mechanical
| Color | Yellow | Height | 13.50mm |
| Weight | 0.073 | LED Color | :Yellow |
| Packaging | Bulk | Lens Color | Water Clear |
| Lens Style | Dome | Lens Diameter | 10 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | Radial | Lens Style/Size | Round with Domed Top, 10mm |
| Illumination Color | Yellow | ||
Product Info
| Lens Type | Clear | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 2500 mcd |
