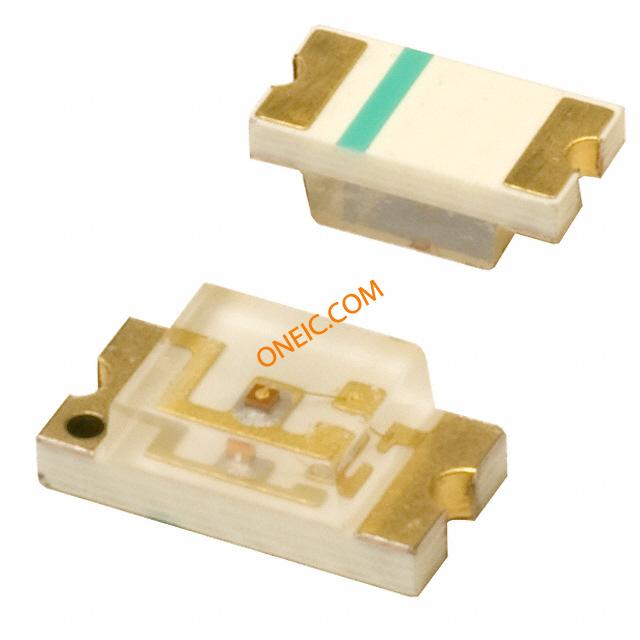

SML-LX1206GC-TR
| Manufacturer | |
| Description | Standard LEDs - SMD Green Water Clear 565nm 10mcd LED 565NM WTR CLR GREEN 1206 SMD LED; Green; 10 mcd (Typ.) @ 25 degC (Axial); 2.2 V (Typ.) @ 25 degC (Forward) LED Uni-Color Green 565nm 2-Pin SMD T/R LED, GREEN, 2MM, 10MCD, 565NM LED, GREEN, 2MM X 1.6MM, 10MCD, 565NM LED;Green;10mcd(Typ.)@25degC(Axial);2.2V(Typ.)@25degC(Forward) |
| Category |
Business
| Other Names | 67-1357-6 | Product Category | Standard LEDs - SMD |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | ULRecognized,CSACertified | Tariff No | 85414010 |
Electrical
| Lamp Type | :2mm x 1.6mm | Optic Size | 1206 |
| Luminous Flux | 10mcd | Power - Rated | 65 mW |
| Viewing Angle | 160 deg | Voltage Rating | 2.2V(Typ.)@25°C(Forward) |
| Current - Output | 20mA | Voltage - Supply | 2.2V |
| Wavelength - Peak | 565nm | LED Forward Current | 20 mA |
| LED Forward Voltage | 2.2 V | Millicandela Rating | 10mcd |
| Current Rating (Max) | 25mA(Steady) | Wavelength - Dominant | 565 nm |
| Current - DC Forward (If) (Max) | :20mA | Current - Peak Pulse (10/1000us) | 25mA |
Mechanical
| Color | Green | Height | 1.10mm |
| Weight | 0.00204 | LED Color | :Green |
| Packaging | Reel | Lens Color | Water Clear |
| Lens Style | :Rectangular | Mounting Type | Surface Mount |
| Contact Finish | Diffused | Mounting Style | SurfaceMount |
| Package / Case | 1206 | Lens Style/Size | Rectangle with Flat Top, 2mm x 1.6mm |
| Material Finish | :MSL 2 - 1 year | Size / Dimension | 3.20mm L x 1.60mm W |
| Illumination Color | Green | ||
Product Info
| Lens Type | Clear | ||
Environmental
| Operating Temperature | + 85 C | Operating Temperature - Junction | +85°C |
| Luminous Flux @ Current/Temperature | 10 mcd | ||
