点击放大查看
0297020.WXNV
| Manufacturer | |
| Description | Fuses 32V 20A Fast Acting Fuse Blade 20A 32V Socket 10.9 X 3.8 X 8.8mm FUSE BLADE 20A 32V MINI FAST-ACT Yellow MINI F Fuse 20A 32V Automotive Fuses 32V 20A Fast Acting FUSE, BLADE, 20A, 32V, FAST ACTING FUSE, MINI BLADE, 20A FUSE-32VMINI-OCR-W/VSN-NYLON20A Fuse: fuse; automotive; 20A; 32V; 10,9mm; MINI Fuse 20 A 32 VDC yellow, 0297020.WXNV, Littelfuse Littelfuse 20A 黄色 车用插片式熔断器 , 32 V 直流 20A 32V fast AUTOMOTIVE MINI |
| Category |
Business
| Product | Automotive Fuses | Product Category | Fuses |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85361010 |
Electrical
| Indicator | Without Indicator | Resistance | 0.0032 Ohms |
| Melting I2t | 380 | Response Time | Fast |
| Voltage Rating | 32 V | Frequency - Max | F |
| Interrupt Output | 1 kA at 32 VDC | DC Cold Resistance | 0.00321 Ohm |
| Current Rating (Max) | 20 A | Contact Voltage (Max) | :32V |
| Voltage - Input (Min) | 1000 A | Blowout Characteristic | :Fast Acting |
| Voltage - Supply (Min) | 1000A | Breaking Capacity @ Rated Voltage | :1000A |
Mechanical
| Size | Miniature | Color | Yellow |
| Depth | :3.81mm | Width | 8.8 mm |
| Height | 8.8mm | Length | 10.9mm |
| Weight | 0.00068 | Diameter | 3.8 mm |
| Packaging | Bulk | Blade Size | Mini |
| Termination | Blade | Body Material | Polyamide |
| Mounting Type | Socket | Length - Blade | :7.5mm |
| Mounting Style | Holder | Package / Case | 3.8 mm |
| Material - Body | Thermoplastic | Length - Overall | 10.9 |
| Package Quantity | 3000 | Primary Material | Automotive |
| Size / Dimension | 10.9 mm L x 8.8 mm W x 3.8 mm D | Termination Style | Blade |
| Color - Connectors | Yellow | Number of Contacts | 2 |
Product Info
| Spg | 3000 | Type | Mini Blade Fuse |
| Series | 297 | Fuse Size | Mini |
| Fuse Type | Fast Blow | Product Type | Blade Fuse |
| Number of Units | 10 | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
0FHM0001ZXJ
Littelfuse
Fuse Holders HOLDER MINI INLINE BLACK WIRE BLADE FUSEHOLDERS - IN-LINE SPLASH-WATERPROOF FUSEHOLDER FOR MINI STYLE BLADE FUSE FUSEHOLDER IN LINE for MINI FUSE HLDR BLADE 32V 20A IN LINE FUSE HOLDER, IN-LINE, 20A Fuse Holder HOLDER MINI INLINE BLACK WIRE
01530002H
Littelfuse
Fuse Holders ACS Mini Inline Fuse Holder In Line Automotivehold. ACS Mini Inline FUSE HOLDER BLADE 20A IN LINE FUSE HOLDER, IN LINE Fuse Holder ACS Mini Inline
0FHM0002ZXJ
Littelfuse
Fuse Holders HOLDER MINI INLINE ORANGE WIRE Holder - Mini Inline Orange 12AWG30A FUSE HLDR BLADE 32V 20A IN LINE Fuse Holder HOLDER MINI INLINE ORANGE WIRE
3544-2
Keystone Electronics
Fuse Clips AUTO FUSEHOLDER .032 FUSE BLOCK BLADE 500V 15A PCB Fuse Clip 30A 500VAC Faston Through Hole FuseClip;500VAC;30A;PCB;For0.110in.x0.032in.minibladefuses
178.6764.0001
Littelfuse
Fuse Holders FL1 (Mini) PCB Holder Fuse Holder 125V Pin Through Hole AUTOHOLDER FL1 14x15.6 for FK1 FUSE HOLDER BLADE 125V PCB MINI Fuseholder 125V FUSE HOLDER, PCB, FK1 BLADE FUSE HOLDER, PCB MOUNT Fuse holder; automotive fuses; Mounting: PCB; 10,9mm; max.130°C Fuse holder miniATC / miniATO / FK1, 178.6764.0001, Littelfuse Littelfuse 底座安装熔断器座, 用于mini熔断器, 125 V
0297020.WXNV
Littelfuse
Fuses 32V 20A Fast Acting Fuse Blade 20A 32V Socket 10.9 X 3.8 X 8.8mm FUSE BLADE 20A 32V MINI FAST-ACT Yellow MINI F Fuse 20A 32V Automotive Fuses 32V 20A Fast Acting FUSE, BLADE, 20A, 32V, FAST ACTING FUSE, MINI BLADE, 20A FUSE-32VMINI-OCR-W/VSN-NYLON20A Fuse: fuse; automotive; 20A; 32V; 10,9mm; MINI Fuse 20 A 32 VDC yellow, 0297020.WXNV, Littelfuse Littelfuse 20A 黄色 车用插片式熔断器 , 32 V 直流 20A 32V fast AUTOMOTIVE MINI
168.6785.5207
Littelfuse
Fuses FK1 32V 20A Fuse Blade 20A 32V Socket 11.9 X 3.8 X 8.6mm Thermoplastic FUSE - FK1 32V 20A 50 PC FUSE MINI BLADE FK1 20A 32V YLW Automotive Fuses FK1 32V 20A FUSE, AUTO BLADE, 20A
257-297-KIT
Littelfuse Inc
KIT FUSE BLADE FAST ACT UL

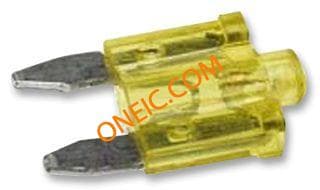

MCASP-L-E 20A
