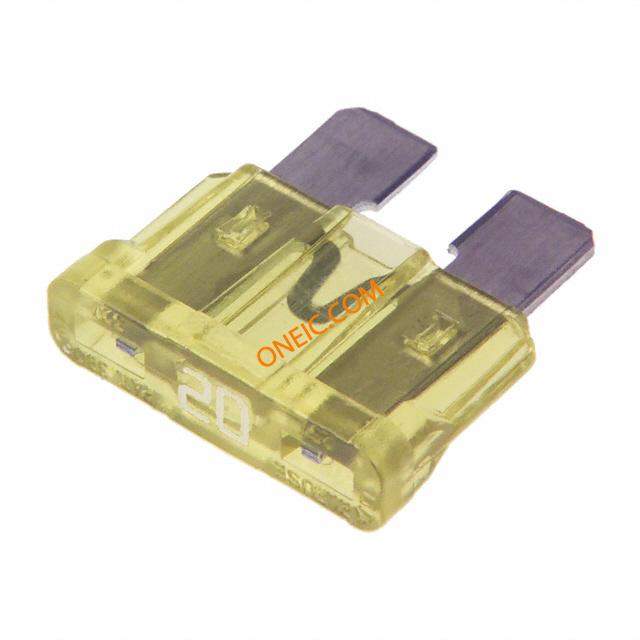

0257020.PXPV
| Manufacturer | |
| Description | Fuses 32V 20A Fuse Blade Fast Acting 20A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 20A 32V ATO FAST-ACT FUSE, ATO, 20A Fuse;Automotive;FastActing;20A;Supplemental;Dims0.75x0.2x0.73";Blade;32VDC Automotive fuse ATO 20 A 32 VDC yellow, 0257020.PXPV, Littelfuse |
| Category |
Business
| Product | Automotive Fuses | Part # Aliases | 257020 576-257020 |
| Product Category | Fuses | Standard Package | 2,000 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85361010 |
Electrical
| Indicator | Without Indicator | Resistance | 0.0033 Ohms |
| Melting I2t | 520 | Response Time | Fast |
| Voltage Rating | 32 V | Interrupt Output | 1 kA |
| DC Cold Resistance | 0.00338 Ohm | Current Rating (Max) | 20 A |
| Blowout Characteristic | :Fast Acting | Voltage - Supply (Min) | 1000A |
| Breaking Capacity @ Rated Voltage | :1000A | ||
Mechanical
| Color | Yellow | Depth | :5.25mm |
| Width | 12.19 mm | Height | 12.19 |
| Length | :12.3mm | Weight | 0.141 |
| Diameter | 5.08 mm | Packaging | Bulk |
| Tab Width | :0.64mm | Blade Size | :5.22mm |
| Body Material | Polyamide | Mounting Type | Socket |
| Length - Blade | :6.4mm | Mounting Style | Holder |
| Package / Case | 5.08 mm | Length - Overall | 19.05 |
| Size / Dimension | 19.05 mm L x 12.19 mm W x 5.08 mm D | Termination Style | Blade |
| Color - Connectors | :Yellow | Number of Contacts | 2 |
Product Info
| Type | ATO Blade Fuse | Series | 257 |
| Fuse Size | ATO | Fuse Type | Fast Blow |
| Product Type | Blade Fuse | ||
Environmental
| Must Operate | Fast | Mechanical Life | Obsolete |
| Operating Temperature | - 40 C to + 105 C | ||
Documents & Media
Similar Parts
FHAC0001ZXJG
Littelfuse
Fuse Holders HOLDER ATO INLINE BLACK WIRE HOLDER, ATO INLINE, BLACK WIRE FUSE HLDR BLADE 32V 20A IN LINE FUSE HOLDER, BLADE, INLINE, SPLASHPROOF Littelfuse 20A, 32 V 交流/直流 直插式熔断器座 , 用于ATO 刀片形熔断器, 16AWG Fuse Holder HOLDER ATO INLINE BLACK WIRE
01550300Z
Littelfuse
Fuse Holders Inline Fuse Holder In Line Bulk ACS INLINE FUSEHLDR FUSE HLDR BLADE 32V 20A PNL MNT Fuse Holder 2-Pin Bulk FUSE HOLDER, IN LINE Fuse Holder Inline FUSEHOLDER FOR ATO ASSEMB. 8" W
01550320ZXU
Littelfuse
Fuse Holders Inline Unassembled Fuse Holder ACS INLINE FUSEHLDR UNASSEMBLED FUSE HLDR BLADE 32V 20A PNL MNT ATO Fuseholder 20A 32V FUSE HOLDER, ATO, PANEL MOUNT, 20A FUSE HOLDER, IN LINE Fuse holder; automotive fuses; 19mm; 20A; 32V; Mounting: on panel Littelfuse ATO 系列 20A 面板固定熔断器座，适用于ATO熔断器 Fuse Holder Inline Unassembled
01500260LXN
Littelfuse
Fuse Holders FUSEHOLDER ATO IN-LINE-FHA 2 Fuse Clip FUSEHOLDER ATO IN-LINE-FHA 2 PACKED 50 FUSE HOLDER BLADE IN LINE Fuse Holder FUSEHOLDER ATO IN-LINE-FHA 2
01550400Z
Littelfuse
Fuse Holders Inline Fuse Holder 20A 32V Wire In Line ACS In-Line Fuseholder for ATO FUSE HLDR BLADE 32V 30A PNL MNT FUSE HOLDER, IN LINE Fuse Holder Inline
01550430ZXU
Littelfuse
Fuse Holders ATO INLINE UNASSMBLD ACS INLINE FUSEHLDR UNASSEMBLED FUSE HLDR BLADE 32V 30A PNL MNT FUSE HOLDER, IN LINE Fuse Holder ATO INLINE UNASSMBLD
01000057H
Littelfuse
Fuse Clips PC Auto Clip Brass & Tin Plated Fuse Holder Through Hole FUSE CLIP BLADE 125V 15A PCB
0FHA0001Z
Littelfuse
Fuse Holders Inline Card FUSE HLDR BLADE 32V 20A IN LINE FUSE HOLDER, ATO BLADE, AXIAL

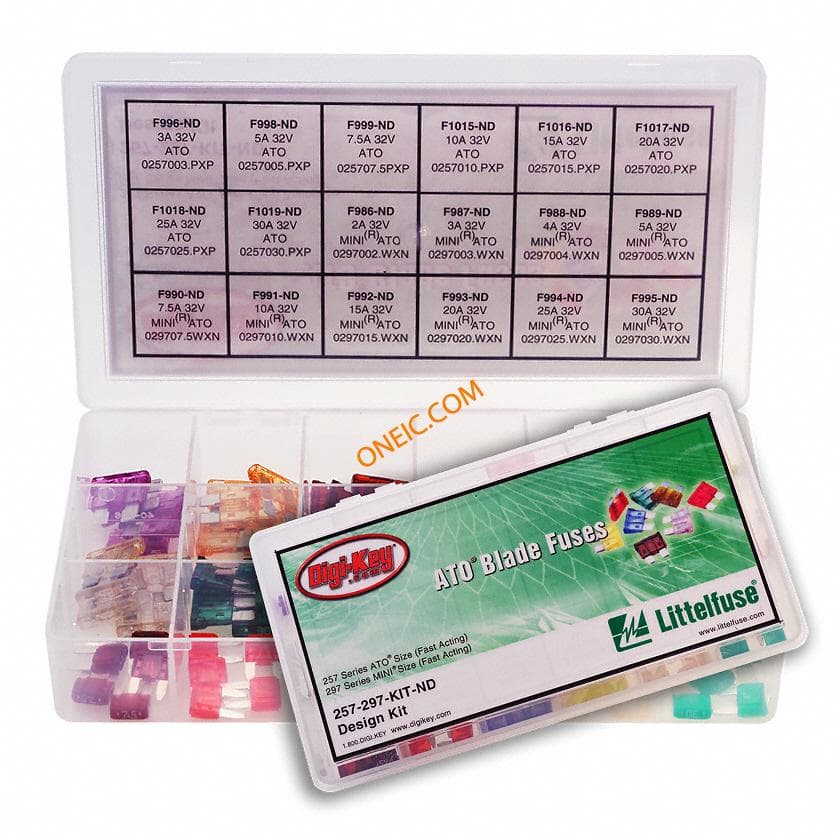

257-297-KIT
